QPHY-SAS2

• QPHY-SAS2 provides a highly automated and easy-to-use solution for SAS-2 configurations from 1.5 Gb/s to 6 Gb/s
• Compliant with version 1.01 of the UNH IOL Serial Attached SCSI (SAS) Consortium SAS-2 6Gb/s Physical Layer Test Suite
• Support for SAS-2 targets and initiators

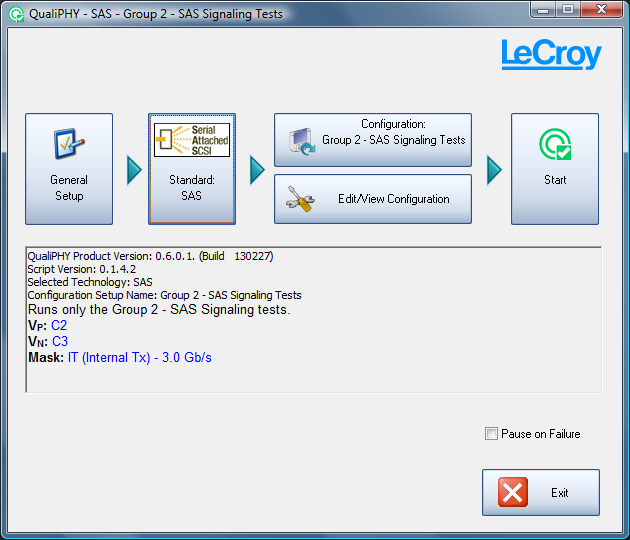

• QualiPHY automated test framework provides connection diagrams, automated oscilloscope operation and report generation
• When used in conjunction with the LeCroy Sierra SAS Protocol Verification System the targets under test can be instructed to generate the required test patterns

The LeCroy QPHY-SAS2 Test Solution provides automated control for the SDA 8 Zi series of oscilloscopes for performing all of the transmitter physical layer tests as described by version 1.01 of the UNH IOL Serial Attached SCSI (SAS) Consortium SAS-2 6Gb/s Physical Layer Test Suite. This specification covers targets and initiators running at 1.5 Gb/s, 3.0 Gb/s and 6.0 Gb/s.

SAS is the serialized version of the popular SCSI standard. SAS is primarily used for server class storage at speeds of up to 6 Gb/s.

QPHY-SAS2 covers tests from Group 1 (TX OOB Signaling and AC Coupling Requirements), Group 2 (TX Spread Spectrum Clocking (SSC) Requirements) and Group 3 (TX NRZ Data Signaling Requirements) of the test specification.

These capabilities make QPHY-SAS2 an all-inclusive automated test suite that meets the requirements for 1.5 Gb/s, 3.0 Gb/s and 6.0 Gb/s Serial Attached SCSI (SAS) transmitter compliance testing.

QPHY-SAS2 provides a highly automated and easy-to-use solution for SAS-2 configurations from 1.5 Gb/s to 6 Gb/s.

Additional SAS-2 LeCroy Test Equipment

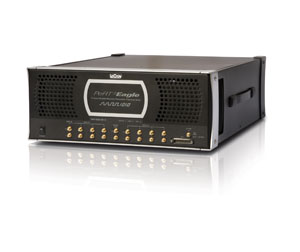

The Sierra Protocol Test System is the 6th generation of SAS/SATA protocol test solutions from LeCroy, the leading manufacturer of protocol test systems.	The PeRT3 (Protocol-enabled Receiver and Transmitter Tolerance Tester) fills the space between physical layer test and protocol test, providing performance testing of receivers and transmitters
