Teledyne LeCroy offers seven PCI Express protocol analyzer platforms (Summit™ T416, Summit T48, Summit™ T3-16, Summit T3-8, Summit T34, Summit T28, and Summit T24). The Summit T416 Protocol Analyzer is Teledyne LeCroy's Latest generation architecture and highest performance platform. It provides full bidirectional support of x16, x8, x4, x2, and x1 at data rates up to 16 GT/s. With 128 GB of trace memory, it offers enough capacity for analyzing and recording extensive PCI Express data streams. The Summit T34, T3-16 and T3-16 are Teledyne LeCroys midrange protocol analyzers. These protocol analyzers are at the forefront of SSD and computer storage analysis, test and compliance.
Supporting lane widths up to x8 at 8 GT/s, the Summit T48 offers the same powerful features and as an option allows for two T48 systems to be connected together to achieve a full x16 lanes at 16 GT/s. Ideal for embedded systems monitoring and analysis is the Summit T28, smaller and a more cost effective PCI Express protocol analyzer for x8 lanes at 5GT/s. While all of the Summit analyzers support PCIe storage protocols like NVM Express, SATA Express and SCSI Express, the Summit T34 is addresses PCIe storage analysis with a small, portable form factor, x4 lane width and a deep recording buffer of 32 GB of memory. For portability and ease-of-use the Summit T24 protocol analyzer offers analysis support for x1-x4 lanes at 2.5/5GT/s. The Summit T24 is Teledyne LeCroy's most optimized and low cost analyzer for analysis of PCIe 2.0 add-in-boards.
All Summit analyzer platforms use the PCI Express iPASS connector for probing. Teledyne LeCroy features the largest selection of PCIe based interposers and probing solutions. Teledyne LeCroy's PCI Express Protocol Analyzer solutions employ non-intrusive and transparent probing technologies thereby allowing fully unaltered data pass-through. In addition, it leverages the intuitive and powerful Teledyne LeCroy’s Trace expert software system, embedding a deep understanding of the PCI Express protocol hierarchy and intricacies and presents this knowledge to the user in a colorful, intuitive and easy to use graphical display, allowing users to quickly capture and validate PCI Express product designs. These analyzers enable IP, semiconductor, switch, software and system developers as well as add-on card vendors to quickly identify protocol violations and ultimately reduce development and debugging time.

Developers can use Teledyne LeCroy's PCI Express Protocol solutions to easily capture and decode PCI Express Transaction Layer Packets (TLPs), Data Link Layer Packets (DLLPs), and low-level link traffic, including Training Sequences and Skip Ordered-sets. Some of the errors detected include: 8b/10b errors, such as invalid symbols and incorrect running disparity; CRC errors; idle data errors; and EDB (End-of-Packet Bad) errors. They also provide a detailed display of split transactions, correlating requests transmitted from one PCI Express endpoint with completions received from the endpoint at the opposite end of the link.
Teledyne LeCroy is well known for its technical leadership. Customers have come to depend on Teledyne LeCroy supporting protocols while they are early in development when these tools are essential.
Exercisers

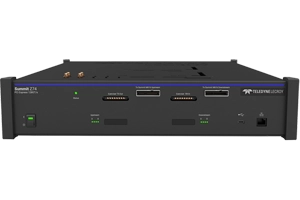

The PCI Express exercisers can generate PCI Express transactions, observe behavior, and perform both stress testing and compliance testing. The Summit Z416 supports the new Specification 4.0 ("Gen3") data rates of 16 GT/s across up to 16 lanes. The Summit Z416 Exerciser supports up to x16 lane widths at data rates of 16 GT/s. As complete solutions, both the Summit T416, T48, Summit Z416, Summit Z3-16 systems give you the unique ability to record (capture) live traffic, modify the traffic, and then playback the exact data stream, or "script," using the exerciser.
Protocol Test Card
Teledyne LeCroy offers an integrated and automated compliance testing system, including Protocol Test Cards, approved by the PCI-SIG® as a standard tool for compliance testing for developers working with both the PCIe 2.0 and 3.0 specifications. In addition, the Summit Z3-16 exerciser is the only approved tool to run the UNH-IOLs NVM Express Conformance Tests. These tests are required for the NVM Express Integrators test.
