The FlexRay trigger, decode and physical layer test package adds a unique set of tools to your oscilloscope simplifying how you design and debug your FlexRay systems. The powerful internal FlexRay trigger quickly locates specific IDs or messages and the unique overlay shows decoded data directly on top of the physical layer signal. The eye diagram and timing measurements quickly locate physical layer problems. Teledyne LeCroy's integration of trigger, decode and physical layer testing shortens FlexRay testing time.

Explore FlexRay Explore FlexRay
FlexRaybus   The FlexRay trigger, decode and physical layer test package adds a unique set of tools to your oscilloscope simplifying how you design and debug your FlexRay systems. The powerful internal FlexRay trigger quickly locates specific IDs or messages and the unique overlay shows decoded data directly on top of the physical layer signal. The eye diagram and timing measurements quickly locate physical layer problems. Teledyne LeCroy's integration of trigger, decode and physical layer testing shortens FlexRay testing time.
Automotive Trigger and Decode   Automotive Trigger and Decode
AudioBus - I2S   Teledyne LeCroy’s Serial AudioBus trigger, decode, and graph package provides all the tools needed to properly analyze and debug digital audio buses. Teledyne LeCroy’s solution addresses the I2S, LJ, RJ, and TDM variations of the audio bus standard.
PROTObus MAG (Measure, Analysis, Graph)   The PROTObus MAG (Measure, Analysis, Graph) Serial Debug Toolkit is the basic building block upon which many other Teledyne LeCroy serial trigger and decoder options can then be added. It significantly extends the trigger and decode functionalities of these other packages to by providing tools for more complete and faster validation and debugging of embedded designs. It provides the deepest level of insight possible.
Leading Features
  • The most comprehensive oscilloscope-based FlexRay solution
  • Complete FlexRay Trigger Decode and Physical Layer Test in one instrument
  • Triggering and decoding of FlexRay protocol version 2.1
  • Eye diagram mask testing with error location
  • Physical layer measurement parameters for Propagation Delay, Asymmetric Delay, Truncation and Jitter
  • Supports 2.5, 5, and 10 Mb/s FlexRay signals

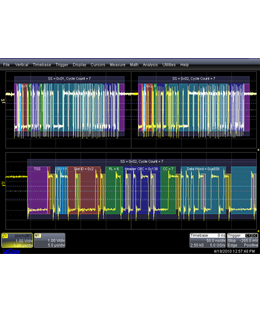

  • Easily view the decoded signals with an intuitive color-coded decode overlay
