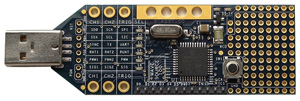

WaveSource 100

WaveSource 100

An oscilloscope demonstration and evaluation signal source. Generates the following signals:
Communication Protocols:

  • I2C
  • SPI
  • UART/RS232

Troublesome signal anomalies that oscilloscopes should be able to capture and analyze:

  • Runts
  • Glitches - Beyond needing to know details of expected glitches for trigger circuits, oscilloscope tools should quickly and easily scan for, and provide insight to, unexpected signal events
  • Jitter
  • Slow Rising Edge - Symbolic of circuit signal reflections
  • Non Monotonic Edges
  • Deterministic Edge Widths – Oscilloscopes tools should provide insight to not only each of their values but provide insight to how frequent and their occurrence in time
  • Signal Bursts Separated by Long Delay

WaveSource 100 Quick Ref Guide

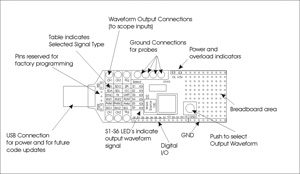

WaveSource 100 Connection Diagram
