100Base-T1bus TDME

The 100Base-T1 Trigger, Decode, Measure/Graph and Physical Layer (TDME) solution provides high performance triggers, transparent color-coded decode overlays, protocol tables, and search capabilities, Measure/Graph capability with automated measurement and graphing tools, and Eye Diagram capability for physical layer signal assessment and debug.

Explore 100Base-T1bus TDME Explore 100Base-T1bus TDME
Key Features
  • Trigger on Link Startup
  • Debug Link Startup Handshaking
  • Descramble Data Packets
  • Enhanced Signal Separation
  • Identify Link Startup and Packet Errors
  • Intuitive, color-coded decode overlays
  • Interactive protocol table with zoom and pattern search
  • Automated timing measurements
  • Serial digital data extraction to an analog value (serial DAC) with waveform graphs
  • Eye Diagrams with failure location



Debug Link Startup ("T")

Trigger on and decode the link startup handshaking between the Master and Slave. Track where the devices are in the handshaking sequence to determine the cause of a proper link not being established.

Intuitive, Color-coded Decode Overlays ("D")

A transparent overlay with color-coding for specific portions of each protocol and the entire message frame makes it easy to understand your serial data information. Unlike other solutions, with protocol decode information away from the signal, our solution correlates the waveform and the protocol decode directly on the display. As the acquisition length is expanded or shortened, the decode overlay will adjust to show you just the right amount of information.

Interactive Table Summarizes Results ("D")

Turn the oscilloscope into a protocol analyzer with a tabular display of decoded information. Customize the table to show only the data of interest and touch a message in the table to automatically zoom to it and display it on the screen. Export the table for offline analysis. Up to four different decoded signals of any type may be simultaneously displayed in the table.

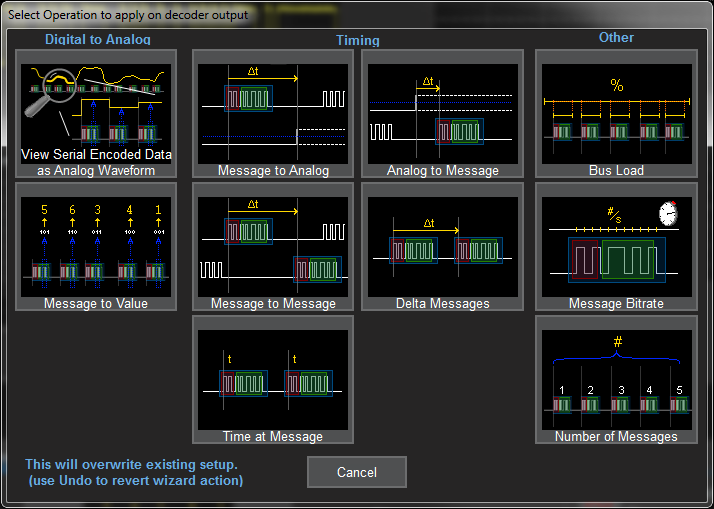

Measure/Graph Tools for Validation Efficiency ("M")

Quickly validate cause and effect with automated timing measurements to or from an analog signal or another serial message. Make multiple measurements in a single long acquisition to quickly acquire statistics during corner-case testing. Serial (digital) data can be extracted to an analog value and graphed to monitor system performance over time, as if it was probed directly. Complete validation faster and gain better insight.

Eye Diagrams ("E")

Rapidly display an eye diagram of your packetized low-speed serial data signal without additional setup time. Use eye parameters to quantify system performance and apply a standard or custom mask to identify anomalies. Mask failures can be indicated and can force the scope into Stop mode.
