LabMaster 10-100Zi
100 GHz Oscilloscope

100 GHz Bandwidth
240 GS/s Real-Time Sampling Rate

The LabMaster 10-100Zi real-time oscilloscope boasts the world’s highest bandwidth and fastest sampling rate. This world-leading performance is key to analyzing and understanding the fastest phenomena found in R&D labs where engineers and scientists are working on next-generation communication systems, high-bandwidth electrical components, and fundamental scientific research.

The Fastest Oscilloscope for the Fastest Signals

With 100 GHz bandwidth and 240 GS/s sampling rate, the LabMaster 10-100Zi acquires the fastest signals generated by scientists and engineers today.

Sophisticated Software for Sophisticated Analysis

The LabMaster 10 Zi platform has the software tools and computing power to perform eye and jitter analysis on the fastest NRZ patterns and analyze complex signals such as coherent optical QAM and QPSK.

Real-Time MATLAB Analysis

Applying custom signal processing algorithms to waveforms in real-time is exceptionally easy with the LabMaster 10-100Zi. Assign MATLAB scripts to math functions for rapid debug & execution.

For More Information

We invite you to contact us at 100GHz@teledynelecroy.com for more information on how 100GHz can help you solve high-speed measurement challenges.

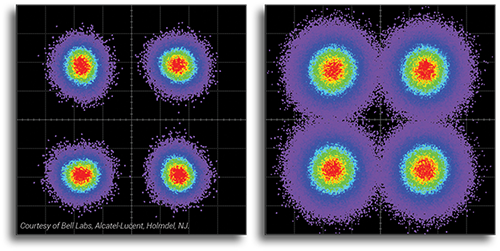

Constellation diagram of 80 and 160 GBaud QPSK signal using two 100 GHz channels. (Courtesy Bell Labs, Alcatel-Lucent)


LabMaster 10 Zi Oscilloscopes

The 100 GHz LabMaster 10-100Zi is built on the LabMaster 10 Zi oscilloscope platform, with bandwidths ranging from 20 GHz to 100GHz.
