12ビット・オシロスコープ WaveRunner HRO 6Ziシリーズ

12ビット・オシロスコープ
WaveRunner HRO 6Ziシリーズ

WaveRunner HRO 6Ziシリーズのもつ高精度な仕様は、従来のオシロスコープでは達成できなかった精密な計測結果を得ることができます。

− 垂直分解能:12ビット

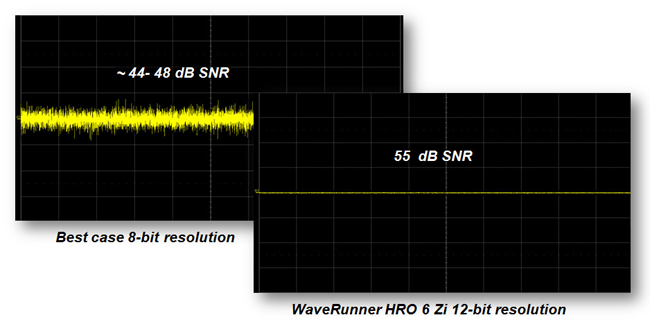

− 超低ノイズ:SN比 55dB

− 広オフセットレンジ:±200V

− 標準メモリ:64Mポイント/ch

− サンプリング速度:2GS/s


ウェブセミナー「高分解能オシロスコープの必要性と応用事例」
動画アーカイブ/セミナー資料はこちらよりご覧いただけます。

  •
  •
  •

基本仕様
モデル名 帯域 サンプリング速度
(4ch時/2ch時)
標準メモリ
(4ch時/2ch時)
垂直
分解能
WaveRunner HRO 64Zi
限定供給品*
400MHz 2GS/s 64 Mポイント/ch 12ビット
WaveRunner HRO 66Zi
限定供給品*
600MHz 2GS/s

*生産終了品のため在庫がなくなりしだい終了となります。

400MHz〜4GHz、8ビットのWaveRunner 6Ziシリーズはこちら

モデルごとスペック詳細(モデル名をクリックで詳細表示されます)

WaveRunner HRO 64Zi スペック

Vertical System

Analog (ProBus Input) Bandwidth @ 50 Ω (-3 dB) 400 MHz
(≥2 mV/div)
Analog (ProBus Input) Bandwidth @ 1 MΩ (-3 dB) 400 MHz (typical)
Rise Time (typical, 10-90%, 50 Ω) 875 ps (typical)
Rise Time (typical, 20-80%, 50 Ω) 650 ps (Typical)
Input Channels 4
Bandwidth Limiters 20MHz,100 MHz, 200MHz
Input Impedance 50 Ω+/-2% or 1 MΩ||17pF, 10 MΩ || 17 pF with supplied Probe
Input Coupling 1 MΩ: AC, DC, GND; 50 Ω: DC, GND
Maximum Input Voltage 50 Ω: 5V RMS ± 10V peak
1 MΩ: 400 V max. (DC + peak AC < 10 kHz)
Channel-Channel Isolation > 300:1 up to rated BW
Vertical Resolution 12 bits; up to 15 bits with enhanced resolution (ERES)
Sensitivity 50 Ω: 1 mV-1 V/div, fully variable;
1 MΩ: 1 mV-10 V/div, fully variable
DC Vertical Gain Accuracy (Gain Component of DC Accuracy) ±0.5% F.S., offset at 0V
Offset Range 50 Ω:
±1.6 V @ 1 mV - 4.95 mV
±4 V @ 5mV - 9.9 mV
±8 V @ 10mV - 19.8 mV
±10 V @ 20mV - 1V
1 MΩ:
±1.6 V @ 1 mV - 4.95 mV
±4 V @ 5mV - 9.9 mV
±8 V @ 10mV - 19.8 mV
±16 V @ 20mV - 100 mV
±80 V @ 102mV - 198 mV
±160 V @ 200mV - 1V
±400V @ 1.02 V-10 V/div
DC Vertical Offset Accuracy ±(1% of offset setting +0.2% of full scale + 0.02% max offset + 1 mV)


Horizontal System

Timebases Internal timebase common to 4 input channels; an external clock may be applied at the auxiliary input
Time/Division Range 20 ps/div - 12.8 ks/div with standard memory
(up to 25.6 ks/div with -L memory,51.2 ks/div with -XL memory)
RIS available at ≤ 10 ns/div;
Roll Mode available at ≥ 100 ms/div and ≤ 5 MS/s.
Clock Accuracy ≤ 1.5 ppm +(aging of 0.5 ppm/yr from last calibration)
Time Interval Accuracy < 0.06 / SR + (clock accuracy* Reading) (rms)
Trigger and Interpolator Jitter ≤ 6 psrms (typical)
<0.1 ps RMS (typical, software assisted)
Sample Rate and Delay Time Accuracy Equal to Clock Accuracy
Channel-Channel Deskew Range ±9 x time/div. setting, 100 ms max., each channel
External Timebase Reference (Input) 10MHz +/-25ppm via Lbus BNC adaptor
External Timebase Reference (Output) 10MHz, 3.5 dBm +/-1dBm, syncronized to reference being used by user (internal or external reference)
via Lbus BNC adaptor
External Clock DC to 100 MHz; (50 Ω/1 MΩ), EXT BNC input, Minimum rise time and amplitude requirements apply at low frequencies.


Acquisition System

Single-Shot Sample Rate/Ch 2 GS/s on 4 Ch
Random Interleaved Sampling (RIS) 100 GS/s, user selectable for repetitive signals (20 ps/div to 10 ns/div)
Maximum Trigger Rate 1,000,000 waveforms/second (in Sequence Mode, up to 4 channels)
Intersegment Time 2 us
Memory Options (4 Ch / 2 Ch / 1Ch) L-128 Option:
128M / 128M / 128M
(60,000)
XL - 256 Option:
256M / 256M / 256M
(125,000)
Standard Memory (4 Ch / 2 Ch / 1Ch) (Number of Segments) 64M/64M/64M
(30,000)


Acquisition Processing

Averaging Summed averaging to 1 million sweeps; continuous averaging to 1 million sweeps
Enhanced Resolution (ERES) From 12.5 to 15 bits vertical resolution
Envelope (Extrema) Envelope, floor, or roof for up to 1 million sweeps
Interpolation Linear or Sin x/x


Triggering System

Modes Normal, Auto, Single, and Stop
Sources Any input channel, Ext, Ext/10, or line; slope and level unique to each source (except line trigger)
Coupling Mode DC, AC, HFRej, LFRej
Pre-trigger Delay 0-100% of memory size (adjustable in 1% increments of 100 ns)
Post-trigger Delay 0-10,000 divisions in real time mode, limited at slower time/div settings or in roll mode
Hold-off by Time From 2 ns up to 20 s or from 1 to 99,999,999 events
Internal Trigger Range ±4.1 div from center (typical)
Trigger Sensitivity with Edge Trigger (Ch 1–4) ProBus Inputs 2 div @ < 400 MHz
1.5 div @ < 200 MHz
0.9 div @ <10 MHz
(DC, AC, and LFRej coupling, ≥ 10 mV/div, 50 Ω)
External Trigger Sensitivity, (Edge Trigger) 2 div @ < full Bandwidth
1.5 div @ < 300 MHz
1 div @ <200 MHz
0.9 div @<10 MHz
(DC, AC, and LFRej coupling)
External Trigger Input Range Ext (±0.4 V); Ext/10 (±4 V)
Max. Trigger Frequency, SMART Trigger 400 MHz @ ≥ 10 mV/div
(minimum triggerable width 1.9 ns)


Basic Triggers

Edge Triggers when signal meets slope (positive, negative, or either) and level condition.
Window Triggers when signal exits a window defined by adjustable thresholds
TV-Composite Video Triggers NTSC or PAL with selectable line and field; HDTV (720p, 1080i, 1080p) with selectable frame rate (50 or 60 Hz) and Line; or CUSTOM with selectable Fields (1-8), Lines (up to 2000), Frame Rates (25, 30, 50, or 60 Hz), Interlacing (1:1, 2:1, 4:1, 8:1), or Synch Pulse Slope (Positive or Negative).


SMART Triggers

State or Edge Qualified Triggers on any input source only if a defined state or edge occurred on another input source. Delay between sources is selectable by time or events.
Qualified First In Sequence acquisition mode, triggers repeatably on event B only if a defined pattern, state, or edge (event A) is satisfied in the first segment of the acquisition. Holdoff between sources is selectable by time or events.
Dropout Triggers if signal drops out for longer than selected time between 1 ns and 20 s.
Pattern Logic combination (AND, NAND, OR, NOR) of 5 inputs (4 channels and external trigger input, or 2 channels and external input for 62Xi). Each source can be high, low, or don't care. The High and Low level can be selected independently. Triggers at start or end of the pattern.


SMART Triggers with Exclusion Technology

Glitch Triggers on positive or negative glitches with widths selectable as low as 200ps (depending on oscilloscope bandwidth) to 20 s, or on intermittent faults.
Width (Signal or Pattern) Triggers on positive or negative glitches with widths selectable as low as 200ps (depending on oscilloscope bandwidth) to 20 s, or on intermittent faults.
Interval (Signal or Pattern) Triggers on intervals selectable between 1 ns and 20 s.
Timeout (State/Edge Qualified) Triggers on any source if a given state (or transition edge) has occurred on another source.
Delay between sources is 1 ns to 20 s, or 1 to 99,999,999 events.
Runt Trigger on positive or negative runts defined by two voltage limits and two time limits. Select between 1 ns and 20 ns.
Slew Rate Trigger on edge rates. Select limits for dV, dt, and slope. Select edge limits between 1 ns and 20 ns.
Exclusion Triggering Trigger on intermittent faults by specifying the expected behavior and triggering when that condition is not met


Cascade (Sequence) Triggering

Capability Arm on "A" event, then Trigger on "B" event. Or Arm on "A" event, then Qualify on "B" event, and Trigger on "C" event. Or Arm on "A" event, then Qualify on "B" then "C" event, and Trigger on "D" event
Types A, B, C, or D event: Edge, Glitch, Width, Window, Dropout, Interval, Runt, Slew Rate, Pattern (analog), or Measurement.
Holdoff Holdoff between A and B, B and C, C or D, or any is selectable by time or number of events
Reset Reset between A and B, B and C, C and D, or any combination is selectable in time or number of events


Measurement Trigger

Measurement Trigger Trigger on Measurement with qualified limits. Can be used as only trigger or last event in cascade.


Low Speed Serial Protocol Triggering (Optional)

Optionally available "I2C, SPI (SPI, SSPI, SIOP), UART-RS232, CAN, LIN, FlexRay, MIL-STD-1553, USB 1.x/2.0


Color Waveform Display

Type Color 12.1" widescreen flat panel TFT-Active Matrix with high resolution touch screen
Resolution WXGA; 1280 x 800 pixels.
Number of traces Display a maximum of 8 traces. Simultaneously display channel, zoom, memory and math traces.
Grid Styles Auto, Single, Dual, Quad, Octal, X-Y, Single+X-Y, Dual+X-Y
Waveform Representation Sample dots joined, or sample dots only


Internal Waveform Memory

Internal Waveform Memory 4 active waveform memory traces (M1-M4) store 16 bit/point full length waveforms. Waveforms can be stored to any number of files limited only by the data storage media capacity.


LeCroy WaveStream™ Fast Viewing Mode

Intensity 256 Intensity Levels, 1-100% adjustable via front panel control
Types Analog only
Number of Channels up to 4 simultaneously
Max Sampling Rate 2 GS/s
Waveforms/second (continuous) up to 20,000 Waveforms/second
Operation Front panel toggle between normal real-time mode and LeCroy WaveStream Fast Viewing mode


Automatic Setup

Auto Setup Automatically sets timebase, trigger, and sensitivity to display a wide range of repetitive signals
Find Vertical Scale Automatically sets the vertical sensitivity and offset for the selected channel to display a waveform with the maximum dynamic range


Probes

Probes Qty. (4) ÷10 Passive Probes
Probing System Probus. Automatically detects and supports a variety of compatible probes
Scale Factors Automatically or manually selected depending on probe used
Calibration Output Default is 1kHz square wave, 1Vpp (typical), output to probe hook. Settable from 250 Hz to 1 MHz square wave; 50 mV to 1.0V.


Analog Persistence Display

Analog and Color-Graded Persistence Variable saturation levels; stores each trace's persistence data in memory
Trace Selection Activate persistence on all or any combination of traces
Sweep Display Modes All accumulated, or all accumulated with last trace highlighted
Persistence Types Select analog, color, or three-dimensional
Persistence Aging Select from 500 ms to infinity


High Speed Digitizer Output (Option)

Type Not Available
Transfer Rate Not Available
Output Protocol Not Available
Control Protocol Not Available
Command Set Not Available


Processor/CPU

Type Intel E5300 Pentium Dual Core (3.2 GHz)
Processor Memory 4 GB standard
Operating System Microsoft Windows® 7 Pro 64 bit Embedded
Real Time Clock Date and time displayed with waveform in hardcopy files. SNTP support to synchronize to precision internal clocks.


Zoom Expansion Traces

Zoom Expansion Traces Display up to 4 Zoom and 8 Math/Zoom traces


Setup Storage

Front Panel and Instrument Status Store to the internal hard drive, over the network, or to a USB-connected peripheral device.


Interface

Remote Control Via Windows Automation, or via LeCroy Remote Command Set
Network Communication Standard VXI-11 or VICP, LXI Class C (v1.2) Compliant
GPIB Port (optional) Supports IEEE - 488.2 (External)
LSIB Port (optional) Not Available
USB (Device) 1 USBTMC port
Ethernet Port Supports 10/100/1000BaseT Ethernet interface (RJ45 port)
USB Ports minimum 4 total (incl. 2 front panel) USB 2.0 ports support Windows compatible devices
External Monitor Port 15 pin D-Type WXGA compatible DB-15 to support customer-supplied external monitor.
Includes support for extended desktop operation with WXGA resolution on second monitor.
Serial Port Not available
Peripheral Bus LeCroy LBUS standard


Auxiliary Input

Signal Types Select External Trigger or External Clock Input on the front panel
Coupling 50 Ω: DC; 1 MΩ: AC, DC, GND
Max. Input Voltage 50 Ω: 5 Vrms; 1 MΩ: 400 Vmax (DC + Peak AC ≤ 5 kHz)


Auxiliary Output

Connector Type BNC, located on rear panel
Signal Types Select from control signals or Off
Output Signal 500 Hz-1 MHz square wave or DC level; 50 mV-1 V into 1 MΩ
Control Signals Trigger enabled, trigger out, pass/fail status, off


General

Auto Calibration Ensures specified DC and timing accuracy is maintained for 1 year minimum.


Power Requirements

Voltage 100-240 VAC ±10% at 45-66 Hz; 110-120 VAC ±10% at 380-420 Hz; Automatic AC Voltage Selection; Installation Category: 300V CAT II
Max. Power Consumption 425 W / 425 VA


Environmental and Safety

Temperature (Operating) +5 °C to +40 °C
Temperature (Non-Operating) -20 °C to +60 °C
Humidity (Operating) 5% to 80% relative humidity (non-condensing) up to +31 °C.
Upper limit derates to 50% relative humidity (non-condensing) at +40 °C.
Humidity (Non-Operating) 5% to 95% relative humidity (non-condensing) as tested per MIL-PRF-28800F
Altitude (Operating) Up to 10,000 ft. (3048 m) at or below +25 °C
Altitude (Non-Operating) Up to 40,000 ft. (12,192 m)
Random Vibration (Operating) 0.31 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes
Random Vibration (Non-Operating) 2.4 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes
Functional Shock 30 g peak, half sine, 11 ms pulse, 3 shocks (positive and negative) in each of three orthogonal axes, 18 shocks total


Physical Dimensions

Dimensions (HWD) 11.29"H x 16"W x 8.1"D (287 x 408 x 205 mm)
Weight 22.0 lbs. (9.98 kg)
Shipping Weight 36 lbs. (16.36 kg)


Certifications

Certifications CE Compliant, UL and cUL listed; conforms to EN 61326, EN 61010-1, UL 61010-1 2nd edition, and CSA C22.2 No. 61010-1-04


Warranty and Service

Warranty and Service 3-year warranty; calibration recommended annually.
Optional service programs include extended warranty, upgrades, and calibration services.

WaveRunner HRO 66Zi スペック

Vertical System

Analog (ProBus Input) Bandwidth @ 50 Ω (-3 dB) 600 MHz
(≥2 mV/div)
Analog (ProBus Input) Bandwidth @ 1 MΩ (-3 dB) 500 MHz (typical)
Rise Time (typical, 10-90%, 50 Ω) 625 ps (typical)
Rise Time (typical, 20-80%, 50 Ω) 435 ps (typical)
Input Channels 4
Bandwidth Limiters 20MHz, 100 MHz, 200MHz, 350 MHz
Input Impedance 50 Ω+/-2% or 1 MΩ||17pF, 10 MΩ || 17 pF with supplied Probe
Input Coupling 1 MΩ: AC, DC, GND; 50 Ω: DC, GND
Maximum Input Voltage 50 Ω: 5V RMS ± 10V peak
1 MΩ: 400 V max. (DC + peak AC < 10 kHz)
Channel-Channel Isolation > 300:1 up to rated BW
Vertical Resolution 12 bits; up to 15 bits with enhanced resolution (ERES)
Sensitivity 50 Ω: 1 mV-1 V/div, fully variable;
1 MΩ: 1 mV-10 V/div, fully variable
DC Vertical Gain Accuracy (Gain Component of DC Accuracy) ±0.5% F.S., offset at 0V
Offset Range 50 Ω:
±1.6 V @ 1 mV - 4.95 mV
±4 V @ 5mV - 9.9 mV
±8 V @ 10mV - 19.8 mV
±10 V @ 20mV - 1V
1 MΩ:
±1.6 V @ 1 mV - 4.95 mV
±4 V @ 5mV - 9.9 mV
±8 V @ 10mV - 19.8 mV
±16 V @ 20mV - 100 mV
±80 V @ 102mV - 198 mV
±160 V @ 200mV - 1V
±400V @ 1.02 V-10 V/div
DC Vertical Offset Accuracy ±(1% of offset setting +0.2% of full scale + 0.02% max offset + 1 mV)


Horizontal System

Timebases Internal timebase common to 4 input channels; an external clock may be applied at the auxiliary input
Time/Division Range 20 ps/div - 12.8 ks/div with standard memory
(up to 25.6 ks/div with -L memory,51.2 ks/div with -XL memory)
RIS available at ≤ 10 ns/div;
Roll Mode available at ≥ 100 ms/div and ≤ 5 MS/s.
Clock Accuracy ≤ 1.5 ppm +(aging of 0.5 ppm/yr from last calibration)
Time Interval Accuracy < 0.06 / SR + (clock accuracy* Reading) (rms)
Trigger and Interpolator Jitter ≤ 5.5 psrms (typical)
<0.1 ps RMS (typical, software assisted)
Sample Rate and Delay Time Accuracy Equal to Clock Accuracy
Channel-Channel Deskew Range ±9 x time/div. setting, 100 ms max., each channel
External Timebase Reference (Input) 10MHz +/-25ppm via Lbus BNC adaptor
External Timebase Reference (Output) 10MHz, 3.5 dBm +/-1dBm, syncronized to reference being used by user (internal or external reference)
via Lbus BNC adaptor
External Clock DC to 100 MHz; (50 Ω/1 MΩ), EXT BNC input, Minimum rise time and amplitude requirements apply at low frequencies.


Acquisition System

Single-Shot Sample Rate/Ch 2 GS/s on 4 Ch
Random Interleaved Sampling (RIS) 100 GS/s, user selectable for repetitive signals (20 ps/div to 10 ns/div)
Maximum Trigger Rate 1,000,000 waveforms/second (in Sequence Mode, up to 4 channels)
Intersegment Time 2 us
Memory Options (4 Ch / 2 Ch / 1Ch) L-128 Option:
128M / 128M / 128M
(60,000)
XL - 256 Option:
256M / 256M / 256M
(125,000)
Standard Memory (4 Ch / 2 Ch / 1Ch) (Number of Segments) 64M/64M/64M
(30,000)


Acquisition Processing

Averaging Summed averaging to 1 million sweeps; continuous averaging to 1 million sweeps
Enhanced Resolution (ERES) From 12.5 to 15 bits vertical resolution
Envelope (Extrema) Envelope, floor, or roof for up to 1 million sweeps
Interpolation Linear or Sin x/x


Triggering System

Modes Normal, Auto, Single, and Stop
Sources Any input channel, Ext, Ext/10, or line; slope and level unique to each source (except line trigger)
Coupling Mode DC, AC, HFRej, LFRej
Pre-trigger Delay 0-100% of memory size (adjustable in 1% increments of 100 ns)
Post-trigger Delay 0-10,000 divisions in real time mode, limited at slower time/div settings or in roll mode
Hold-off by Time From 2 ns up to 20 s or from 1 to 99,999,999 events
Internal Trigger Range ±4.1 div from center (typical)
Trigger Sensitivity with Edge Trigger (Ch 1–4) ProBus Inputs 2 div @ < 600 MHz
1.5 div @< 300 MHz
1 div @ < 200 MHz
0.9 div @<10 MHz
(DC, AC, and LFRej coupling, ≥ 10 mV/div, 50 Ω)
External Trigger Sensitivity, (Edge Trigger) 2 div @ < full Bandwidth
1.5 div @ < 300 MHz
1 div @ <200 MHz
0.9 div @<10 MHz
(DC, AC, and LFRej coupling)
External Trigger Input Range Ext (±0.4 V); Ext/10 (±4 V)
Max. Trigger Frequency, SMART Trigger 600 MHz @ ≥ 10 mV/div
(minimum triggerable width 1.2 ns)


Basic Triggers

Edge Triggers when signal meets slope (positive, negative, or either) and level condition.
Window Triggers when signal exits a window defined by adjustable thresholds
TV-Composite Video Triggers NTSC or PAL with selectable line and field; HDTV (720p, 1080i, 1080p) with selectable frame rate (50 or 60 Hz) and Line; or CUSTOM with selectable Fields (1-8), Lines (up to 2000), Frame Rates (25, 30, 50, or 60 Hz), Interlacing (1:1, 2:1, 4:1, 8:1), or Synch Pulse Slope (Positive or Negative).


SMART Triggers

State or Edge Qualified Triggers on any input source only if a defined state or edge occurred on another input source. Delay between sources is selectable by time or events.
Qualified First In Sequence acquisition mode, triggers repeatably on event B only if a defined pattern, state, or edge (event A) is satisfied in the first segment of the acquisition. Holdoff between sources is selectable by time or events.
Dropout Triggers if signal drops out for longer than selected time between 1 ns and 20 s.
Pattern Logic combination (AND, NAND, OR, NOR) of 5 inputs (4 channels and external trigger input, or 2 channels and external input for 62Xi). Each source can be high, low, or don't care. The High and Low level can be selected independently. Triggers at start or end of the pattern.


SMART Triggers with Exclusion Technology

Glitch Triggers on positive or negative glitches with widths selectable as low as 200ps (depending on oscilloscope bandwidth) to 20 s, or on intermittent faults.
Width (Signal or Pattern) Triggers on positive or negative glitches with widths selectable as low as 200ps (depending on oscilloscope bandwidth) to 20 s, or on intermittent faults.
Interval (Signal or Pattern) Triggers on intervals selectable between 1 ns and 20 s.
Timeout (State/Edge Qualified) Triggers on any source if a given state (or transition edge) has occurred on another source.
Delay between sources is 1 ns to 20 s, or 1 to 99,999,999 events.
Runt Trigger on positive or negative runts defined by two voltage limits and two time limits. Select between 1 ns and 20 ns.
Slew Rate Trigger on edge rates. Select limits for dV, dt, and slope. Select edge limits between 1 ns and 20 ns.
Exclusion Triggering Trigger on intermittent faults by specifying the expected behavior and triggering when that condition is not met


Cascade (Sequence) Triggering

Capability Arm on "A" event, then Trigger on "B" event. Or Arm on "A" event, then Qualify on "B" event, and Trigger on "C" event. Or Arm on "A" event, then Qualify on "B" then "C" event, and Trigger on "D" event
Types A, B, C, or D event: Edge, Glitch, Width, Window, Dropout, Interval, Runt, Slew Rate, Pattern (analog), or Measurement.
Holdoff Holdoff between A and B, B and C, C or D, or any is selectable by time or number of events
Reset Reset between A and B, B and C, C and D, or any combination is selectable in time or number of events


Measurement Trigger

Measurement Trigger Trigger on Measurement with qualified limits. Can be used as only trigger or last event in cascade.


Low Speed Serial Protocol Triggering (Optional)

Optionally available I2C, SPI (SPI, SSPI, SIOP), UART-RS232, CAN, LIN, FlexRay, MIL-STD-1553, USB 1.x/2.0


Color Waveform Display

Type Color 12.1" widescreen flat panel TFT-Active Matrix with high resolution touch screen
Resolution WXGA; 1280 x 800 pixels.
Number of traces Display a maximum of 8 traces. Simultaneously display channel, zoom, memory and math traces.
Grid Styles Auto, Single, Dual, Quad, Octal, X-Y, Single+X-Y, Dual+X-Y
Waveform Representation Sample dots joined, or sample dots only


Internal Waveform Memory

Internal Waveform Memory 4 active waveform memory traces (M1-M4) store 16 bit/point full length waveforms. Waveforms can be stored to any number of files limited only by the data storage media capacity.


LeCroy WaveStream™ Fast Viewing Mode

Intensity 256 Intensity Levels, 1-100% adjustable via front panel control
Types Analog only
Number of Channels up to 4 simultaneously
Max Sampling Rate 2 GS/s
Waveforms/second (continuous) up to 20,000 Waveforms/second
Operation Front panel toggle between normal real-time mode and LeCroy WaveStream Fast Viewing mode


Automatic Setup

Auto Setup Automatically sets timebase, trigger, and sensitivity to display a wide range of repetitive signals
Find Vertical Scale Automatically sets the vertical sensitivity and offset for the selected channel to display a waveform with the maximum dynamic range


Probes

Probes Qty. (4) ÷10 Passive Probes
Probing System Probus. Automatically detects and supports a variety of compatible probes
Scale Factors Automatically or manually selected depending on probe used
Calibration Output Default is 1kHz square wave, 1Vpp (typical), output to probe hook. Settable from 250 Hz to 1 MHz square wave; 50 mV to 1.0V.


Analog Persistence Display

Analog and Color-Graded Persistence Variable saturation levels; stores each trace's persistence data in memory
Trace Selection Activate persistence on all or any combination of traces
Sweep Display Modes All accumulated, or all accumulated with last trace highlighted
Persistence Types Select analog, color, or three-dimensional
Persistence Aging Select from 500 ms to infinity


High Speed Digitizer Output (Option)

Type Not Available
Transfer Rate Not Available
Output Protocol Not Available
Control Protocol Not Available
Command Set Not Available


Processor/CPU

Type Intel E5300 Pentium Dual Core (3.2 GHz)
Processor Memory 4 GB standard
Operating System Microsoft Windows® 7 Pro 64 bit Embedded
Real Time Clock Date and time displayed with waveform in hardcopy files. SNTP support to synchronize to precision internal clocks.


Zoom Expansion Traces

Zoom Expansion Traces Display up to 4 Zoom and 8 Math/Zoom traces


Setup Storage

Front Panel and Instrument Status Store to the internal hard drive, over the network, or to a USB-connected peripheral device.


Interface

Remote Control Via Windows Automation, or via LeCroy Remote Command Set
Network Communication Standard VXI-11 or VICP, LXI Class C (v1.2) Compliant
GPIB Port (optional) Supports IEEE - 488.2 (External)
LSIB Port (optional) Not Available
USB (Device) 1 USBTMC port
Ethernet Port Supports 10/100/1000BaseT Ethernet interface (RJ45 port)
USB Ports minimum 4 total (incl. 2 front panel) USB 2.0 ports support Windows compatible devices
External Monitor Port 15 pin D-Type WXGA compatible DB-15 to support customer-supplied external monitor.
Includes support for extended desktop operation with WXGA resolution on second monitor.
Serial Port Not available
Peripheral Bus LeCroy LBUS standard


Auxiliary Input

Signal Types Select External Trigger or External Clock Input on the front panel
Coupling 50 Ω: DC; 1 MΩ: AC, DC, GND
Max. Input Voltage 50 Ω: 5 Vrms; 1 MΩ: 400 Vmax (DC + Peak AC ≤ 5 kHz)


Auxiliary Output

Connector Type BNC, located on rear panel
Signal Types Select from control signals or Off
Output Signal 500 Hz-1 MHz square wave or DC level; 50 mV-1 V into 1 MΩ
Control Signals Trigger enabled, trigger out, pass/fail status, off


General

Auto Calibration Ensures specified DC and timing accuracy is maintained for 1 year minimum.


Power Requirements

Voltage 100-240 VAC ±10% at 45-66 Hz; 110-120 VAC ±10% at 380-420 Hz; Automatic AC Voltage Selection; Installation Category: 300V CAT II
Max. Power Consumption 425 W / 425 VA


Environmental and Safety

Temperature (Operating) +5 °C to +40 °C
Temperature (Non-Operating) -20 °C to +60 °C
Humidity (Operating) 5% to 80% relative humidity (non-condensing) up to +31 °C.
Upper limit derates to 50% relative humidity (non-condensing) at +40 °C.
Humidity (Non-Operating) 5% to 95% relative humidity (non-condensing) as tested per MIL-PRF-28800F
Altitude (Operating) Up to 10,000 ft. (3048 m) at or below +25 °C
Altitude (Non-Operating) Up to 40,000 ft. (12,192 m)
Random Vibration (Operating) 0.31 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes
Random Vibration (Non-Operating) 2.4 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes
Functional Shock 30 g peak, half sine, 11 ms pulse, 3 shocks (positive and negative) in each of three orthogonal axes, 18 shocks total


Physical Dimensions

Dimensions (HWD) 11.29"H x 16"W x 8.1"D (287 x 408 x 205 mm)
Weight 22.0 lbs. (9.98 kg)
Shipping Weight 36 lbs. (16.36 kg)


Certifications

Certifications CE Compliant, UL and cUL listed; conforms to EN 61326, EN 61010-1, UL 61010-1 2nd edition, and CSA C22.2 No. 61010-1-04


Warranty and Service

Warranty and Service 3-year warranty; calibration recommended annually.
Optional service programs include extended warranty, upgrades, and calibration services.

上位モデル/下位モデル
  下位モデル 同等モデル 上位モデル

モデル名 Wavesufer MXs-B WaveRunner 6Zi WavePro 7Zi-A
帯域 200MHz〜1GHz 400MHz〜4GHz 1.5〜6GHz
サンプリング速度 5〜10GS/s 10〜40GS/s 20〜40GS/s
標準メモリ 16 Mポイント/ch 16 Mポイント/ch 20 Mポイント/ch
    詳細 詳細 詳細

WaveRunner HRO 6Zi スペック詳細 (PDF:700K)


ページトップへ





高分解能オシロスコープ

世界で最も明瞭な波形で最も低ノイズなオシロスコープ、それがレクロイの新しいWaveRunner HRO 6Ziシリーズです。レクロイの新しい高分解能オシロスコープは12ビットADCと波形再現性を持つ低ノイズ フロントエンドを併せ持っています。明瞭で極細のトレースから素早いスピード、応答性まで、レクロイのWaveRunner HRO 6Ziシリーズは今までの8ビットオシロスコープと比べると驚くほど違います。


WaveRunner6Zi デモビデオ

優れた検証、デバッグ、解析機能

レクロイのWaveRunner HRO 6Ziシリーズは広範囲のアプリケーションパッケージと先進のトリガーによるイベントの分離、 迅速で簡易なナビゲーションを持つユーザインタフェース、様々なプロービングオプション、 電光石火のパフォーマンスを含む強力な機能を持っています。

卓越した信号忠実度

レクロイのWaveRunner HRO 6Ziシリーズは低ノイズかつ比類なき信号忠実度を提供する純粋な信号捕捉アーキテクチャを特徴とします。 この性能により広大なオフセットとタイムベースの遅延調整が可能で、信号と増幅器の特性評価を容易に出来、 縦軸、横軸の信号特性を容易に拡大できます。

新方式のナビゲートとビュー

WavePilotコントロールエリアは関連するボタンをフロントパネルに配置し、カーソル、デコード、WaveScan、ヒストリー機能、LabNotebook、スペクトル解析の簡便な操作を可能にします。

スーパーノブはWavePilotコントロールエリアの中心に配置されたジョイスティックに似たノブで、テーブルやZoom、波形表示位置の使いやすいナビゲート、迅速なドキュメント作成や測定セットアップに注釈をつける事が可能です。

左側面のボタンをスライドさせ、上方向に90度ディスプレイを回転させると画面表示は自動的に横長表示から縦長表示モードに切り替わります。見やすいように上向き、下向きにチルトさせることも出来ます。

さらなるトリガ機能がより迅速に問題を切り分けます

広帯域エッジトリガ、10種類のSMARTトリガ、4段のカスケードトリガ、計測値トリガ、およびトリガスキャンの強力な組み合わせは標準で搭載され、迅速に問題を切り分け、原因にフォーカスすることができます。測定値トリガは卓越した分解能を持った厳密な測定値に基づきトリガイベントを厳選可能な強力な選択肢です。

回転型ディスプレイ

12.1インチ高解像度WXGAワイドスクリーンはどんな波形を描画しても最適な表示が得られるように設計されました。

ワイドスクリーンは長いレコード長が必要で、波形拡大やスクロール結果が大きなデータブロックとなるような様々な波形に理想的です。

スクリーンを90度回転させれば、デジタル波形、ジッタトラック、アイダイアグラム、周波数プロットに最適な表示となります。スクリーン上の表示は回転に伴い自動的に切り替わります。ディスプレイを上下にチルトさせ、反射やチラツキを最小にすることができます。



ページトップへ

クリックで詳細表示されます

ミックスド・シグナル・ソリューション

Memory Options

Sampling Rate Options

ハードウエア・オプション

リモート・コントロール/ネットワーク・オプション

電源解析

トリガ/デコード・オプション

ジッタ解析パッケージ

デジタル・フィルタ・オプション

コンプライアンス・テスト・オプション

シリアル・データ解析

その他のソフトウェア・オプション

その他

Synchronize Oscilloscope Options

データストレージ解析

ミックスド・シグナル・アクセサリ

テスト・フィクスチャ

ページトップへ

クリックで詳細表示されます

プローブ・アダプタ

アクティブ・プローブ

電流プローブ

差動アンプ

差動プローブ

高圧差動プローブ

高圧プローブ

O/E変換器

パッシブ・プローブ

プローブ・キット

ページトップへ
