Arbitrary Waveform Generators

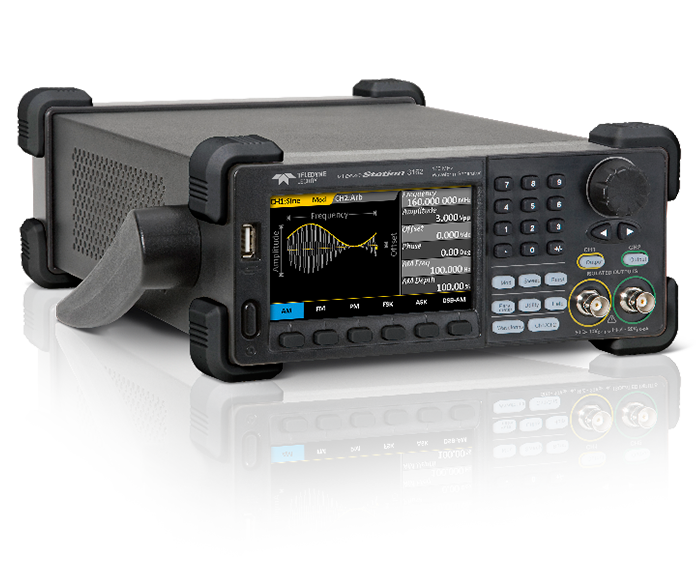

WaveStation 3122

120 MHz, 2ch 14bit 500MS/s Function/Arbitrary Waveform Generator

NIST Traceable Calibration
Warranty Repair
NIST Traceable Calibration
Repair Charge - Standard
5 Year Warranty (including Standard warranty)
High Performance and Signal Fidelity

Accurate waveform creation with high resolution, fast sample rate, and low distortion

Extensive Waveform Library

5 basic functions and over 40 built-in arbitrary waveforms

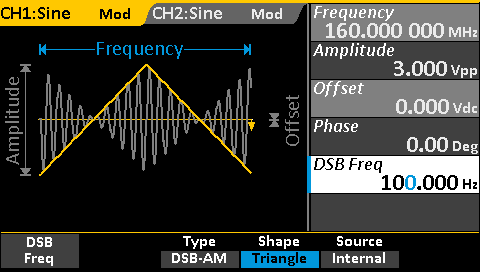

Variety of Modulation Schemes

Built-in modulation capabilities include AM, PM, FM, ASK, PSK and FSK

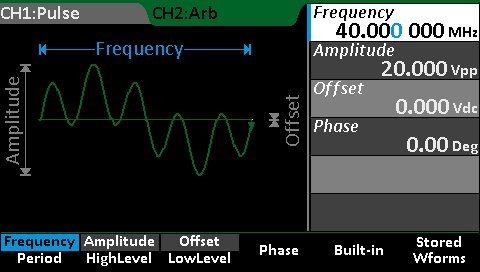

Simple, Fast Waveform Creation

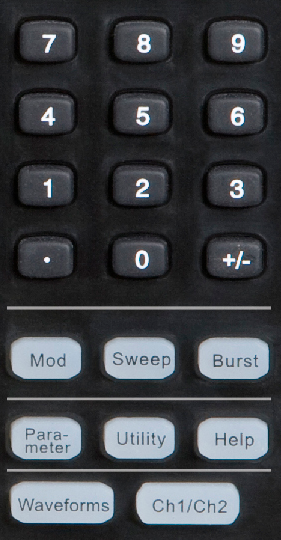

Quickly access functions from the front panel, view created waveforms and waveform parameters on the display

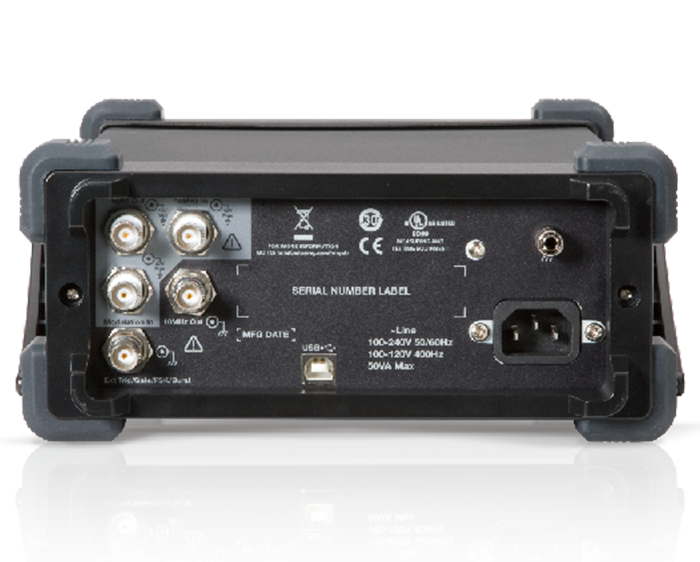

Connectivity and Communication

USB and GPIB for simple remote control, automation and transferring data

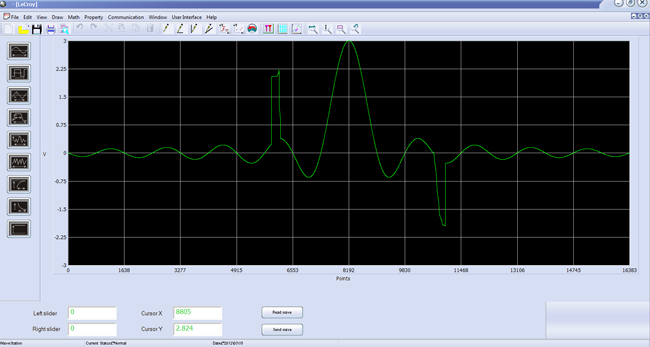

Graphical Waveform Creation

Easily create and edit waveforms on the PC and quickly transfer to the WaveStation

WSTA3082-CC$225.00NIST Traceable CalibrationRequest Quote
WSTA3082-REW$0.00Warranty RepairRequest Quote
WSTA3162-CC$225.00NIST Traceable CalibrationRequest Quote
WSTA3162-RES$715.00Repair Charge - StandardRequest Quote
WSTA3162-W5$550.005 Year Warranty (including Standard warranty)Request Quote

* Prices Shown Are US Domestic Prices, MSRP, and are exclusive of local and state taxes, shipping, levies, fees, duties, exportation/importation costs, service and warranties outside the United States, and assume standard 30 day payment terms.

Information and/or pricing may be changed or updated without notice. Teledyne LeCroy may also make improvements and/or changes in the products and/or the programs, as well as associated pricing, described in this information at any time without notice.

Because international information is provided at this Web Site, not all products, programs or pricing mentioned will be available in your country. Please contact your local sales representative for information as to products and services available in your country.
