8ch オシロスコープ MDA 8000HDシリーズ

モータ・ドライブ・アナライザ
MDA 8000HDシリーズ

モータ・ドライブ・アナライザは、モータ・ドライブの入力から機械的出力までの数値的な三相解析結果の表示と、波形によるパワー解析を提供します。多様なセンサーに対応し、モータの速度、角度、トルクなどの機械情報を読み取れます。ロングメモリを使ったサイクルごとのパラメータ値の時間変動グラフとZoom+Gateモードを使うと、モータおよびモータ・ドライブの動的解析が行えます。8チャンネルのアナログ入力は、12ビットの高分解能、最高5GS/sのサンプリング速度、最高2GHzの帯域と最長5G ポイントのロングメモリを提供し、モータ・ドライブのパワーエレクトロニク ス部の解析、モータの機械的性能評価、組込みコントローラ動作検証を含む全てを網羅するシステムのデバッグを可能にします。


  •
  •
  •

主な特徴

  • モータ・ドライブ・システムの完全なデバックや評価が一台の機器で可能
  • 三相パワー計測、実効電力、皮相電力、無効電力の計測
  • 効率測定
  • ユーザ・カスタマイズ可能なパワー計測値の一覧表示
  • 2電力計法および3電力計法をサポート
  • パワー計測値からサイクル毎の時間変動プロットを作成
  • サイクル毎の全高調波歪みの計測*
  • 表形式およびグラフック表示による高調波解析*
  • 柔軟な高調波フィルタの適用*
  • スタートアップからオーバーロード・シャットダウンまでのダイナミック・レスポンス解析
  • 独自のZoom+Gateモード
  • 標準的なライン−ラインからライン−ニュートラルへの電圧変換表示
  • HVDシリーズ差動プローブによる6000VRMSアイソレーション測定
  • 他社製電流計測デバイスを使用する
    場合の容易なインタフェース
    • 完全なモータ情報の取り込み
    (トルク、スピード、ポジション)
    • フレキシブルなセットアップ
    • グラフィカルな設定メニュー
    • OscilloSYNC™ を使った同期運転で16チャンネル・システムに

完全なドライブ・システムのデバック

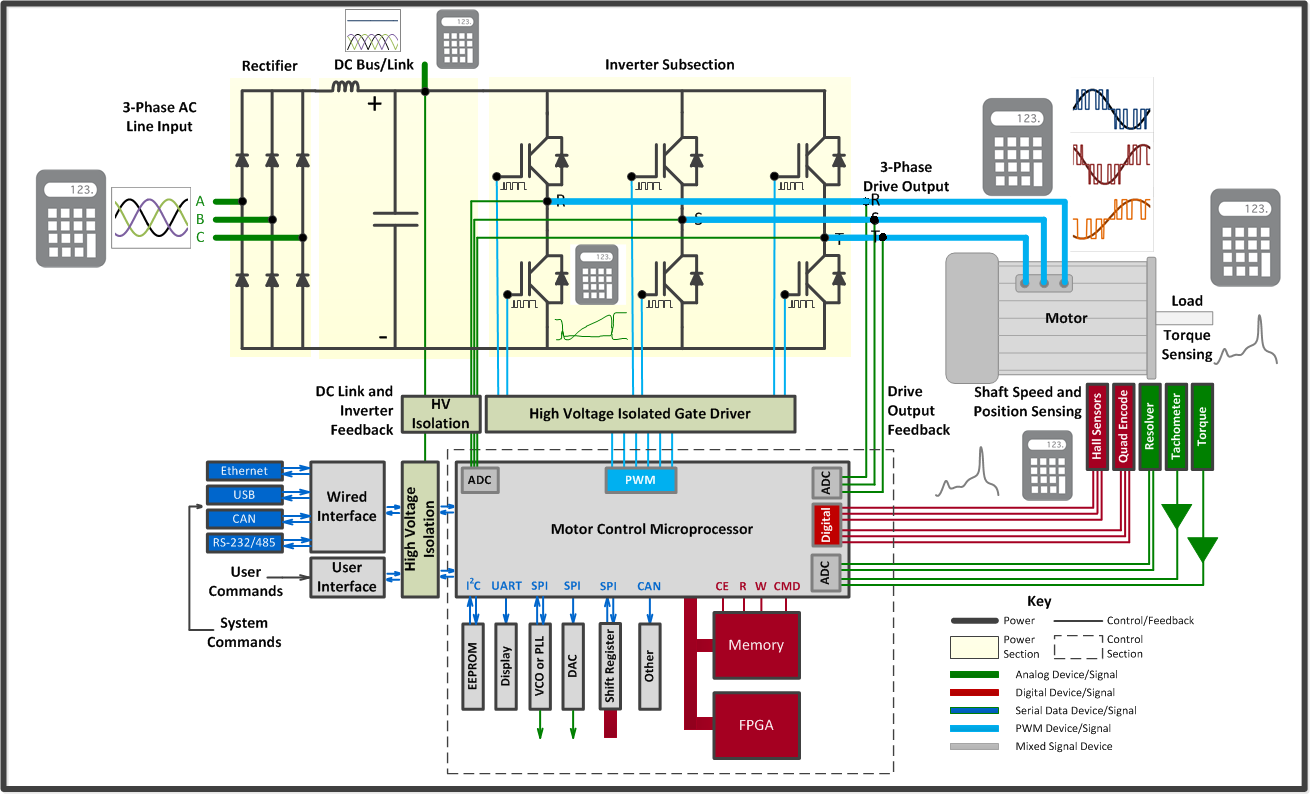

モータ・ドライブ・アナライザはドライ ブ・パワー・セクション、パワー・トランジスタおよび組み込み制御システムの波形を捕捉、パワー・セクションの波形から三相パワー解析を実施出来、ひとつの測定器で完全なモータ・ドライブの全側面の解析とデバックを可能にします。

モータ・ ドライブの全ての側面の解析やデバッグが一台の機器で可能

テレダイン・レクロイのモータ・ドライブ・パワー解析ソリューションはパワーアナライザとし ての数値表示機能はもちろん、パワー値の時間変動と共に内部回路の動作状態を並べて表 示することでモータ・ドライブ回路の挙動を把握し、異常動作のデバックや効率改善の為の 豊富な情報を取得できます。

2台同期して16チャンネル・システムを構築するOscilloSYNC™

OscilloSYNCオシロスコープ同期により1台で16チャンネル入力を設定し、信号捕捉することができます。2台のWaveRunner8000HDまたはMDA8000HDを簡単に同期設定して、16チャンネルの単体のオシロスコープとして操作することも個別のオシロスコープとして操作することもできます。



パワー計測値の一覧表示

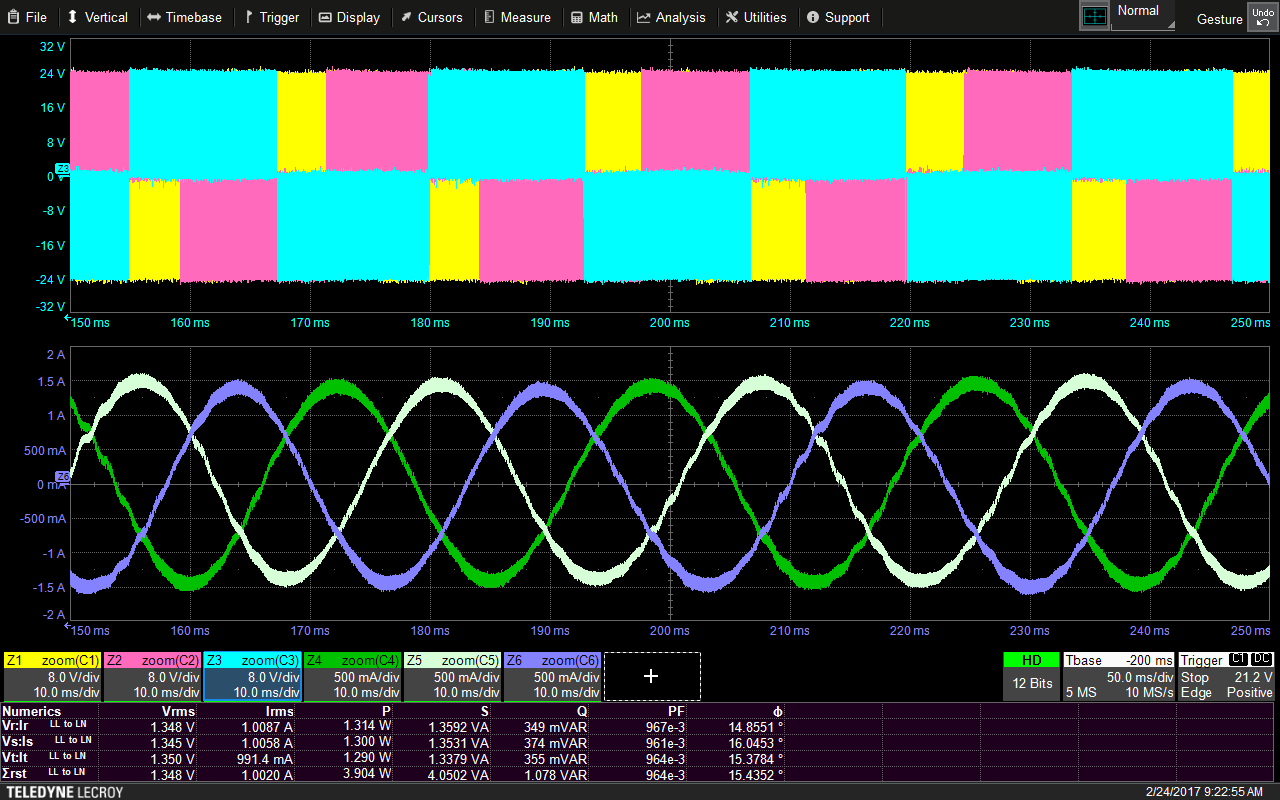

様々な電圧、電流値、電力(実効電力、皮相電力、無効電力)、位相角/力率、および効率パラメータは捕捉された電圧、電流波形から計算され、表形式で一覧表示できます。このテーブルは捕捉波形と同じ画面に表示されます。

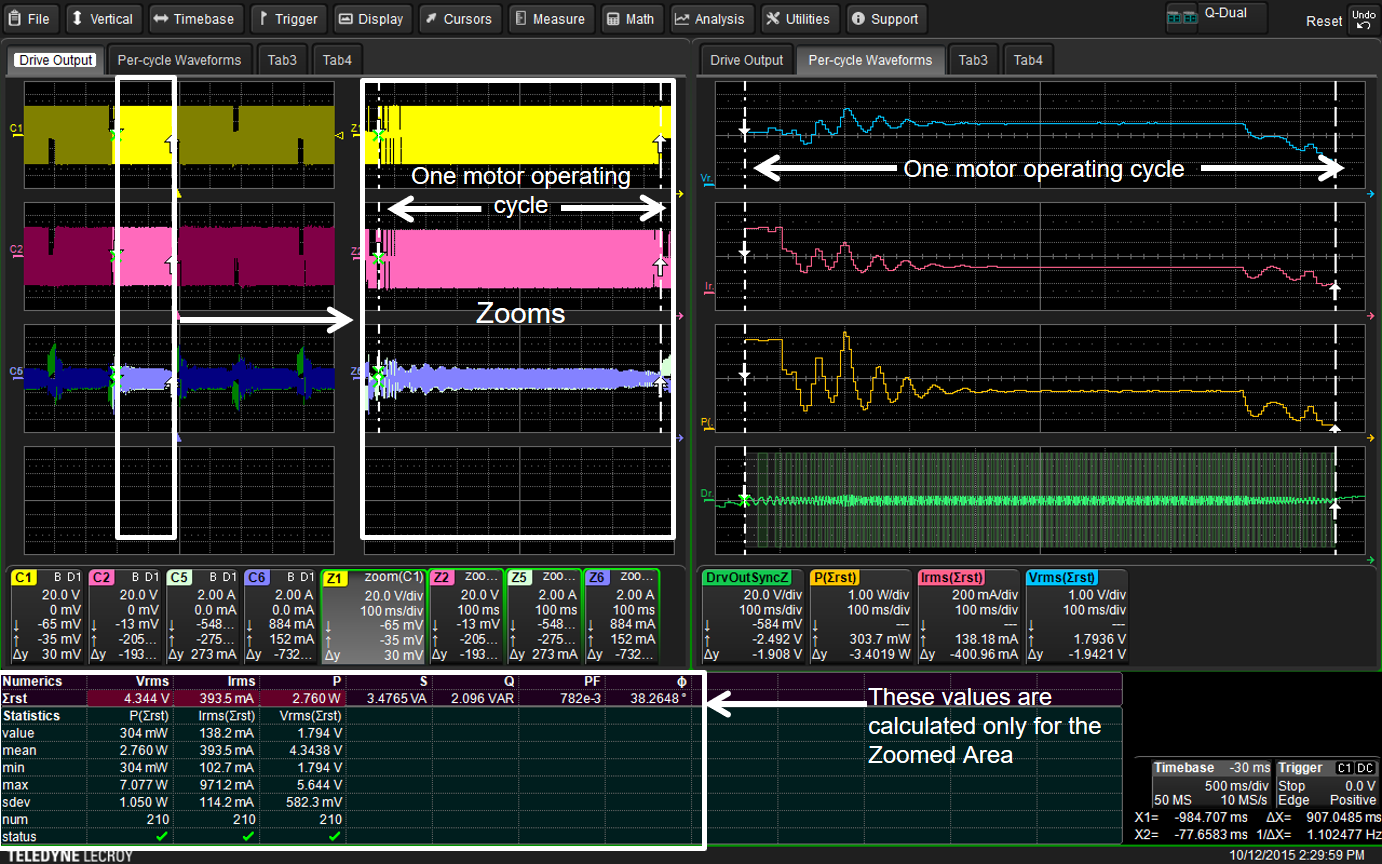

Zoom+Gate動的解析

ロングメモリで捕捉した波形データは、Zoom+Gateモードで、拡大したエリアのみのパラメータ計測を行い、またパラメータの変動グラフを作成することができます。拡大エリアを返納すると、それらの情報も同時に変更されるので、強力なデバッグ・ツールとなり、不良解析に役立ちます。

モータの機械的パラメータの取り込み

アナログ/デジタル(パルス)タコメータ やブラシレスDC(BLDC)ホール・センサ、直交エンコーダ・インタフェース (QEI)、レゾルバを含む、ほぼどんな形式のスピード、回転、あるいはポジショ ン・センサの値も平易に取り込む事が可能です。加えて、ホールセンサとQEI信号はデジタル入力として取り込み、貴重なアナログ入力チャンネルを他の信号に振り分けることが出来ます。

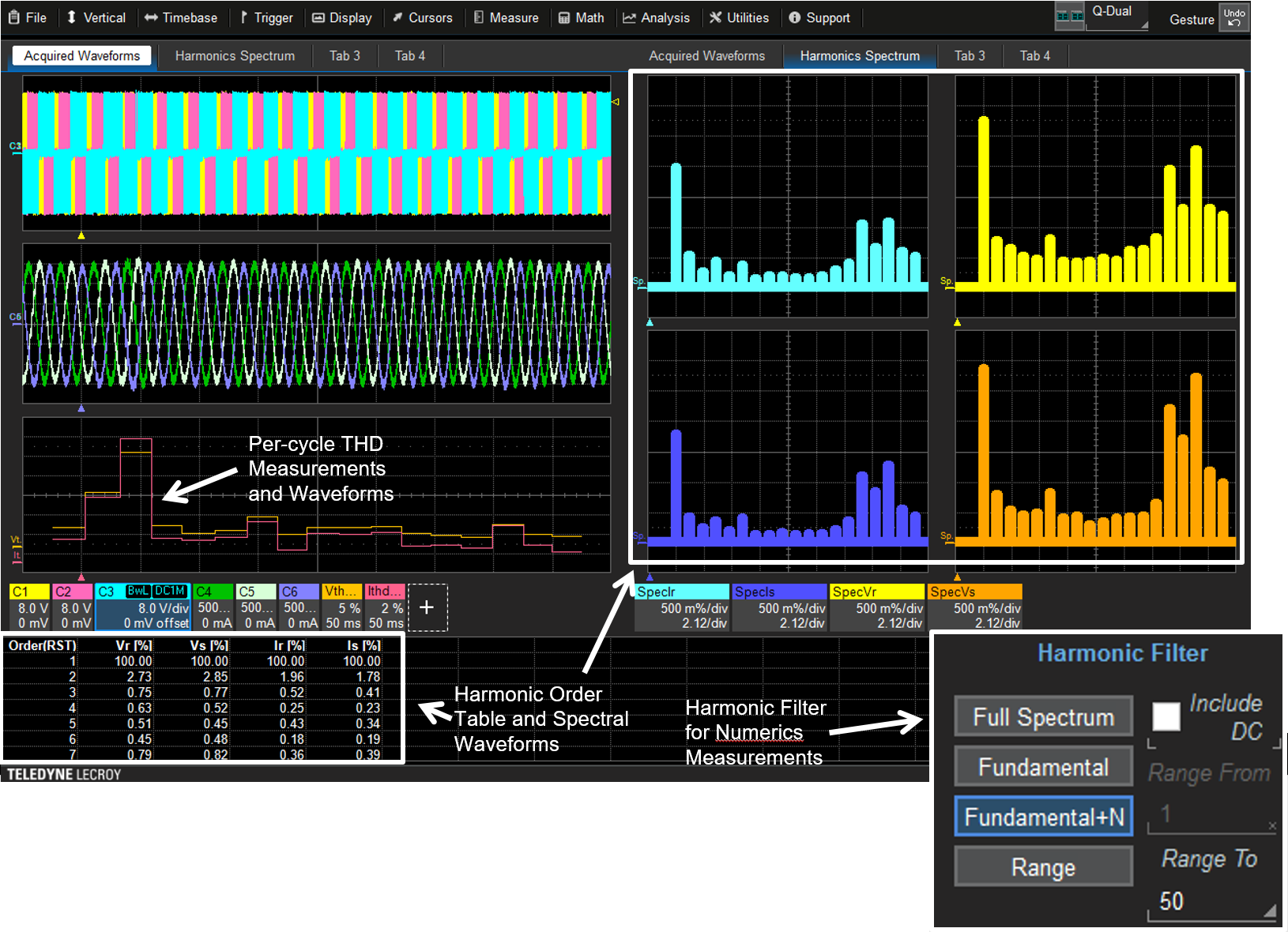

サイクル毎の計測値の時間変動波形表示

テーブルに表示される平均値に加えて、テーブル上の値をクリックして選択するだけでサイクル毎の各計測値の時間変動グラフを表示することが可能です。 このプロットはモータ・ドライブ・アナライザにより捕捉された他の波形と時間相関を持ち、他の制御やパワー・システム波形と複雑なドライブ動作との関連づけを行い、ドライブ・システムの問題のデバックに役 立ちます。計測値セットの詳細統計情報も表示可能です。この追加情報は単体測定器としてのパワーアナライザで表示されるものを大きく凌駕します。

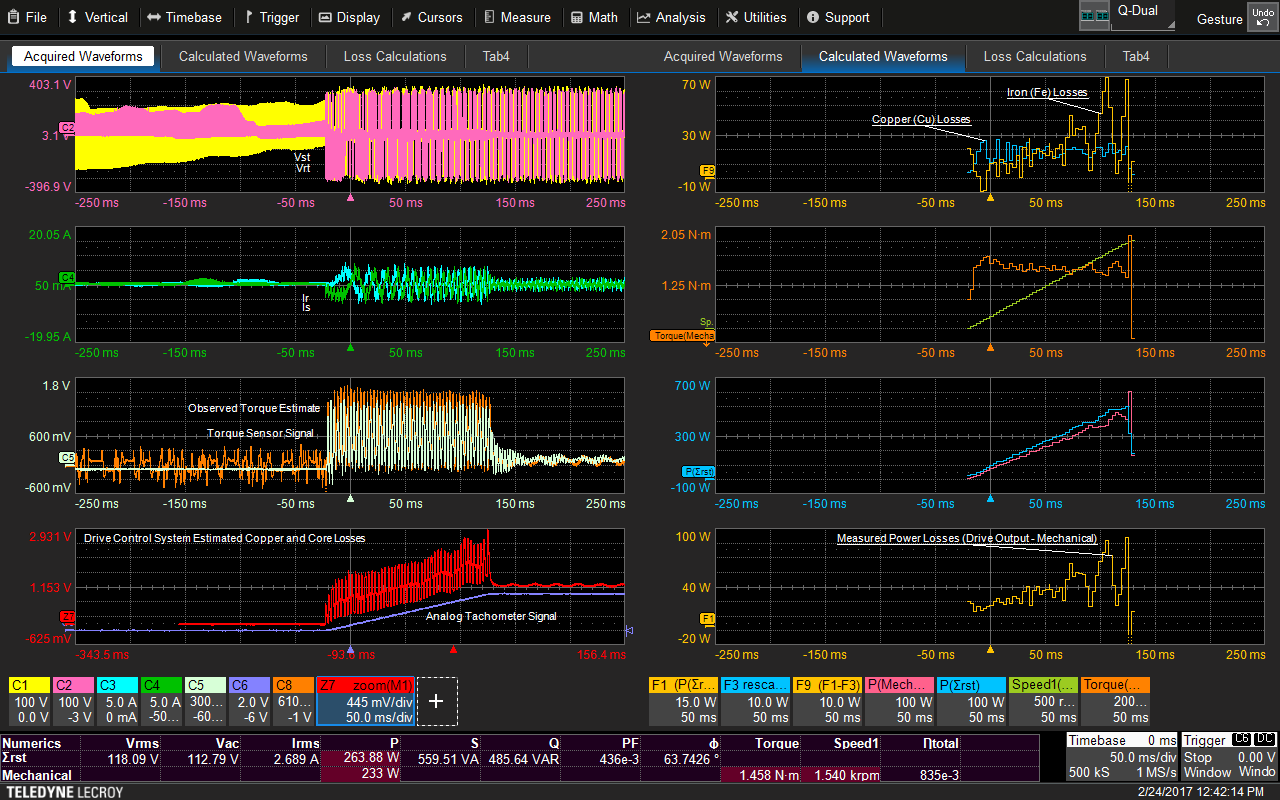

動的ドライブ・レスポンス

モータ・ドライブ・アナライザのロング波形メモリ(最大250Mポイント/ch)は他の機器では実現できないモータおよびドライブの動的挙動の解析能力を提供します。例えばサンプリング・レート10MS/sの設定では25秒間もの連続波形捕捉が可能になります。これによりスタートアップや負荷投入、急激な負荷変動に対する動的なドライブ挙動を完全に把握することが出来、ドライブ動作の問題と制御システム動作もしくはパワー・セクションの不具合の関連づけをする事が可能です。

柔軟なセットアップ

8つのアナログ入力チャンネルではドライブ入力あるいは出力どちらか一方側の三相の電圧、電流信号の直接計測が可能です。しかしながら、三相電力の計測に2電力計法を適用できるため、2 つの電圧と電流信号の計測で三相計測が可能になります。これにより8つのアナログ入力チャンネルでもドライブの完全な入出力の効率計測が可能になります。

同様にライン−ラインからライン−ニュートラル電圧への変換もサポートし、直感的なライン−ライン・プロービングを行っていても各相ごとのライン−ニュートラルの結果を得ることができます。



ページトップへ

基本仕様
モデル名 帯域 ch数 サンプリング速度
標準メモリ 垂直分解能)
MDA 8038HD 350MHz 8ch 5GS/s*
50Mポイント/ch 12ビット
MDA 8058HD 500MHz
MDA 8108HD 1GHz
MDA 8208HD 2GHz

* エンハンスド・サンプリング: 10GS/s

スペック詳細 (モデル名をクリックで詳細表示されます)

MDA 8038HD スペック

Vertical - Analog Channels

Analog Bandwidth (Max) 350 MHz
Analog Bandwidth @ 50 Ω (-3 dB) (ProBus Input) 350 MHz
(≥1 mV/div)
Analog Bandwidth @ 1 MΩ (-3 dB) (ProBus Input) 350 MHz
Rise Time (10-90%, 50 Ω) 1 ns
Rise Time (20-80%, 50 Ω) 750 ps
Input Channels 8
Vertical Resolution 12 bits; up to 15 bits with enhanced resolution (ERES)
Effective Number of Bits (ENOB) 8.9 bits
Vertical Noise Floor (1 mV/div) 95 µVrms
Vertical Noise Floor (2 mV/div) 95 µVrms
Vertical Noise Floor (5 mV/div) 100 µVrms
Vertical Noise Floor (10 mV/div) 115 µVrms
Vertical Noise Floor (20 mV/div) 130 µVrms
Vertical Noise Floor (50 mV/div) 185 µVrms
Vertical Noise Floor (100 mV/div) 285 µVrms
Vertical Noise Floor (200 mV/div) 1.30 mVrms
Vertical Noise Floor (500 mV/div) 1.85 mVrms
Vertical Noise Floor (1 V/div) 2.95 mVrms
Sensitivity 50 Ω: 1 mV-1 V/div, fully variable;
1 MΩ: 1 mV-10 V/div, fully variable
DC Vertical Gain Accuracy (Gain Component of DC Accuracy) ±(0.5%) FS, offset at 0 V
Channel-Channel Isolation DC-200 MHz: 70 dB (>3000:1),
200-350 MHz: 60 dB (>1000:1)
(For any two input channels, same V/div settings, typical)
Offset Range 50 Ω
±1.6 V @ 1 mV - 4.95 mV/div
±4 V @ 5 mV - 9.9 mV/div
±8 V @ 10 mV - 19.8 mV/div
±10 V @ 20 mV - 1 V/div

1 MΩ
±1.6 V @ 1 mV - 4.95 mV/div
±4 V @ 5 mV - 9.9 mV/div
±8 V @ 10 mV - 19.8 mV/div
±16 V @ 20 mV - 100 mV/div
±80 V @ 102 mV - 198 mV/div
±160 V @ 200 mV - 1 V/div
±400 V @ 1.02 V - 10 V/div
DC Vertical Offset Accuracy ±(0.5% of offset setting + 0.5% FS + 1mV)
Maximum Input Voltage 50 Ω: 5 Vrms,
1 MΩ: 400 V max
(DC + Peak AC ≤ 10 kHz)
Input Coupling 1 MΩ: AC, DC, GND; 50 Ω: DC, GND
Input Impedance 50 Ω+/-2% or 1 MΩ||19pF, 10 MΩ || 10 pF
Bandwidth Limiters 20MHz, 200MHz
Rescaling Length: meters, inches, feet, yards, miles; Mass: grams, slugs; Temperature: celsius, fahrenheit, kelvin; Angle: radian, arcdegr, arcmin, arcsec, cycles, revolutions, turns; Velocity: m/s, in/s, ft/s, yd/s, miles/s; Acceleration: m/s2, in/s2, ft/s2, g0; Volume: liters, cubic meters, cubic inches, cubic feet, cubic yards; Force (Weight): newton, grain, ounce, pound; Pressure: pascal, bar, atmosphere (technical), atmosphere (standard), torr, psi; Electrical: volts, amps, watts, volt-amperes, volt-amperes reactive, farad, coulomb, ohm, siemen, volt/meter, coulomb/m2, farad/meter, siemen/meter, power factor; Magnetic: weber, tesla, henry, amp/meter, henry/meter; Energy: joule, Btu, calorie; Rotating Machine: radian/second, frequency, revolution/second, revolution/minute, N?m, lb-ft, lb-in, oz-in, watt, horsepower; Other: %.


Horizontal - Analog Channels

Timebases Internal timebase common to 8 input channels
Acquisition Modes Real-time, Roll, Sequence
Time/Division Range 100 ps/div - 5 ks/div with standard memory (up to 10 ks/div with 500MPT memory, 25 ks/div with 1000MPT memory, 50 ks/div with 2000MPT memory, 100 ks/div with 5000MPT memory);
Roll Mode available at ≥ 100 ms/div and ≤ 5 MS/s
Clock Accuracy +/-1 ppm + 1 ppm/year from calibration
Sample Clock Jitter up to 10µs Acquired Time Range:
80 fsrms (Internal Timebase Reference)

up to 10ms Acquired Time Range:
150 fsrms (Internal Timebase Reference)
Delta Time Measurement Accuracy \sqrt{2}*\sqrt{(\frac{Noise}{SlewRate})^2+(Sample Clock Jitter)^2) (RMS)+(clock accuracy*reading)(seconds)
Jitter Measurement Floor \sqrt{(\frac{Noise}{SlewRate})^2+(Sample Clock Jitter)^2\; seconds\; rms\; (TIE)}
Channel-Channel Deskew Range ±9 x time/div. setting, 100 ms max., each channel
External Timebase Reference (Input) 10MHz +/-25ppm at 0 to 10dBm into 50 Ohms
External Timebase Reference (Output) 10MHz, 5.0 dBm +/-2.5 dBm, sinewave synchronized to reference being used (internal or external reference)


Acquisition - Analog Channels

Sample Rate (Single-shot) 10 GS/s on 8 Ch with Enhanced Sample Rate
Memory Length (4 Ch / 2 Ch / 1Ch)
(Number of Segments)
50M/100M/200M
(65,536)
Memory Length Options (4 Ch / 2 Ch / 1Ch)
(Number of Segments)
WR8KHD-500MPT Option:
125M / 250M / 500M (65,535)
WR8KHD-1000MPT Option:
250M / 500M / 1000M (65,535)
WR8KHD-2000MPT Option:
500M / 1000M / 2000M (65,535)
WR8KHD-5000MPT Option:
1250M / 2500M / 5000M (65,535)

Maximum analysis memory: 500 Mpts per channel
Intersegment Time 1.5 µs
Averaging Summed averaging to 1 million sweeps; continuous averaging to 1 million sweeps
(Waveforms of ≤500Mpts)
Enhanced Resolution (ERES) From 12.5 to 15 bits vertical resolution
Envelope (Extrema) Envelope, floor, or roof for up to 1 million sweeps
(Waveforms of ≤500Mpts)
Interpolation Linear or Sin x/x (2 pt and 5 pt)
(Waveforms of ≤500Mpts)


Vertical, Horizontal, Acquisition - Digital Channels

Maximum Input Frequency 500 MHz
Minimum Detectable Pulse Width 1 ns
Input Channels 16 Digital channels (with WR8KHD-MSO option)
Input Impedance (Flying Leads) 100 kΩ || 5 pF
Input Dynamic Range ± 20V
Maximum Input Voltage ±30V Peak
Maximum Input Voltage Swing 400mV
Threshold Groupings Pod 2: D15 - D8, Pod 1: D7 - D0
Threshold Selections TTL, ECL, CMOS (2.5 V, 3.3 V, 5 V), PECL, LVDS or User Defined
Threshold Accuracy ±(3% of threshold setting + 100mV)
User Defined Threshold Range ±10 V in 20 mV steps
User Defined Hysteresis Range 100 mV to 1.4 V in 100 mV steps
Sample Rate 2.5GS/s
Record Length Standard: 50 Mpts
Any memory option: 500 Mpts
Channel-to-Channel Skew 350 ps


Triggering System

Modes Acquisition of ≤500Mpts:
Normal, Auto, Single, and Stop

Acquisition of >500Mpts:
Single
Sources Any input channel, Ext, Ext/10, or Line; slope and level unique to each source (except line trigger)
Coupling DC, AC, HFRej, LFRej
Pre-trigger Delay 0-100% of memory size
Post-trigger Delay No limitation
Hold-off From 2 ns up to 20 s or from 1 to 99,999,999 events
Trigger and Interpolator Jitter ≤ 2.5 psrms (typical)
<0.1 ps RMS (typical, software assisted)
Internal Trigger Level Range ±4.1 div from center (typical)
External Trigger Level Range Ext (±0.4 V); Ext/10 (±4 V)
Maximum Trigger Rate 650,000 waveforms/second (in Sequence Mode, up to 8 channels)
Trigger Sensitivity with Edge Trigger ProBus Inputs 1.5 div @ < 350 MHz
1 div @ < 200 MHz
0.9 div @ < 10 MHz
(DC, AC, and LFRej coupling, ≥ 2 mV/div, 50 Ω)
Trigger Sensitivity with Edge Trigger (Aux Input) 1.5 div @ < 350 MHz
1 div @ < 200 MHz
0.9 div @ < 10 MHz
(DC, AC, and LFRej coupling)
Max. Trigger Frequency, SMART Trigger 350 MHz


Trigger Types

Edge Triggers when signal meets slope (positive, negative, or either) and level condition.
Width Triggers on positive or negative glitches with selectable widths.
minimum width 750ps, Maximum Width: 20s
Glitch Triggers on positive or negative glitches with selectable widths. minimum width 750ps, Maximum Width: 20s
Window Triggers when signal exits a window defined by adjustable thresholds
Pattern Logic combination (AND, NAND, OR, NOR) of up to 9 inputs (8 channels and external trigger input). Each source can be high, low, or don’t care. The High and Low level can be selected independently. Triggers at start or end of the pattern.
Runt Trigger on positive or negative runts defined by two voltage limits and two time limits. Select between 1 ns and 20 ns.
Slew Rate Trigger on edge rates. Select limits for dV, dt, and slope. Select edge limits between 1 ns and 20 ns.
Interval Triggers on intervals selectable between 1 ns and 20 s.
Dropout Triggers if signal drops out for longer than selected time between 1 ns and 20 s.
Measurement Trigger Select from a large number of measurement parameters. Trigger on a measurement value with qualified limits.
Multi-Stage: Qualified (Timeout or State/Edge Qualified) Triggers on any input source only if a defined state or edge occurred on another input source. Delay between sources is selectable by time or events. (Note: event B pattern trigger cannot include analog channels).
Triggers with Exclusion Technology Glitch, Width, Interval, Runt, Slew Rate - Trigger on intermittent faults by specifying the expected behavior and triggering when that condition is not met
Multi-Stage: Qualified First In Sequence acquisition mode, triggers repeatably on event B only if a defined pattern, state, or edge (event A) is satisfied in the first segment of the acquisition. Holdoff between sources is selectable by time or events. (Note: event B pattern trigger cannot include analog channels).
TriggerScan A Trigger Trainer analyzes the waveforms, identifies normal behavior, and then sets up a large set of rare event smart trigger setups that target abnormal behavior. The trainer ‘learns’ trigger setups based on slew rates, periods, amplitudes outside of a range and then applies them sequentially.


Low Speed Serial Protocol Trigger (Optional)

Supported Protocols I2C, I3C, SPI (SPI, SSPI, SIOP), UART-RS232, CAN1.1, CAN2.0, CAN FD, LIN, FlexRay, SENT, MIL-STD-1553, AudioBus
(I2S, LJ, RJ, TDM), USB1.x/2.0, SPMI


Measurement Tools

Measurement Functionality Display up to 12 measurement parameters together with statistics, including mean, minimum, maximum, standard deviation, and total number. Each occurrence of each parameter is measured and added to the statistics table. Histicons provide a fast, dynamic view of parameters and waveshape characteristics. Parameter math allows addition, subtraction, multiplication, or division of two different parameters. Parameter gates define the location for measurement on the source waveform. Parameter accept criteria define allowable values based on range setting or waveform state.
Measurement Parameters - Horizontal + Jitter Cycles (number of), Delay (from trigger, 50%), Δ Delay (50%), Duty Cycle (50%, @level), Edges (number of, @level), Fall Time (90-10, @levels), Frequency (50%, @level), Half Period (@level), Hold Time (@level), N Cycle Jitter (peak-peak), Number of Points, Period (50%, @level), Δ Period (@level), Phase (@level), Rise Time (10-90, @levels), Setup (@levels), Skew (@levels), Slew Rate (@levels), Time Interval Error (@level), Time (@level), Δ Time (@level), Width (50%, @level), Δ Width (@level), X(value)@max, X(value)@min
Measurement Parameters - Vertical Amplitude, Base, Level@X, Maximum, Mean, Median, Minimum, Peak-to-Peak, RMS, Std. Deviation, Top.
Measurement Parameters - Pulse Area, Base, Fall Time (90-10, 80-20, @levels), Overshoot (positive, negative), Rise Time (10-90, 80-20, @levels), Top, Width (50%)
Measurement Parameters - Statistical (on Histograms) Full Width (@ Half Max, @ %), Amplitude, Base, Peak @ Max Population, Maximum, Mean, Median, Minimum, Mode, Range, RMS, Std. Deviation, Top, X(value)@Peak, Peaks (number of), Percentile, Population (@bin, total)


Math Tools

Math Functionality Display up to 12 math functions traces (F1-F12). The easy-to-use graphical interface simplifies setup of up to two operations on each function trace, and function traces can be chained together to perform math-on-math.
Math Operators - Basic Math Average (summed), Average (continuous), Difference (-), Envelope, Floor, Invert (negate), Product (x), Ratio (/), Reciprocal, Rescale (with units), Roof, Sum (+).
Math Operators - Digital (incl. with MSO models/options) Digital AND, Digital DFlipFlop, Digital NAND, Digital NOR, Digital NOT, Digital OR, Digital XOR
Math Operators - Filters Enhanced resolution (to 15 bits vertical), Interpolate (cubic, quadratic, sinx/x), (SinX)/x.
Math Operators - Frequency Analysis FFT (power spectrum, magnitude, phase, power density, real, imaginary, magnitude squared), up to full record length. Select from Rectangular, VonHann, Hamming, FlatTop and Blackman Harris windows.
Math Operators - Functions Absolute value, Correlation (two waveforms), Derivative, Deskew (resample), Exp (base e), Exp (base 10), Integral, Invert (negate), Log (base e), Log (base 10), Reciprocal, Rescale (with units), Square, Square root, Zoom (identity).
Math Operators - Other Segment, Sparse


Measurement and Math Integration

Measurement and Math Integration Histograms to display statistical distributions of up to 2 billion measurement parameters. Trend (datalog) of up to 1 million measurement parameters. Track (display parameter vs. time, time-correlated to acquisitions) any parameter. Persistence histogram and persistence trace (mean, range, sigma)


Pass/Fail Testing

Pass/Fail Testing Display up to 12 pass/fail queries using a Single or Dual Parameter Comparison (compare All values, or Any value <. ≤, =, >, ≥, within limit ±Δ value or %) or Mask Test (pre-defined or user-defined mask, waveform All In, All Out, Any In, or Any Out conditions). Combine queries into a boolean expression to Pass or Fail IF "All True", "All False", "Any True", "Any False", or groups or "All" or "Any", with following THEN Save (waveforms), Stop, Alarm, (send) Pulse, Hardcopy (send email, save screen image, save to clipboard, send to printer), or (save) LabNotebook.


Three-phase Electrical and Mechanical Motor Drive Analysis Software

Setup Capability Measurement Locations: AC Input, DC Bus (Link), Drive Output, Mechanical Output.
Wiring Configurations: AC Input: 1-phase / 2-wire (1V1A); 1-phase / 3-wire (2V/2A); 3-phase / 3-wire (2V2A); 3-phase / 3-wire (3V3A); 3-phase / 4-wire (3V3A); None. DC Bus: 1-phase / 2-wire (1V1A); None. Drive Output: 1-phase / Half-Bridge (1V1A); 1-phase / Full-Bridge (1V1A); 3-phase / 3-wire (2V2A); 3-phase / 3-wire (3V3A); 3-phase / 4-wire (3V3A); None.
Harmonic Filter: Select either Full Spectrum or Fundamental only. With WR8KHD-THREEPHASEHARMONICS option, also select Fundamental + N Harmonics or Range (maximum 50th harmonic in both cases).
Sync (per-cycle) Measurement Signal: Independently settable for AC Input, DC Bus, Drive Output and Mechanical Output. Low pass filter (LPF) cutoff settable from 20 Hz to 1 MHz. Hysteresis settable from 0-100% full amplitude. Source can be any input analog channel, memory trace, or math function.
Voltage Measurement Method: Line-Line or Line-Neutral (with L-L to L-N conversion supported).
Calculation Waveform Sources: Any input channel or stored memory trace.
Numerics Measurement Table Selections Voltage: RMS voltage, AC Voltage, DC Voltage, Peak Positive Voltage, Peak Negative Voltage, Peak-Peak Voltage, Voltage, Crest Factor, Voltage Total Harmonic Distortion (THD) (with the WR8KHD-THREEPHASEHARMONICS option).
Current: RMS Current, AC Current, DC Current, Peak Positive Current, Peak Negative Current, Peak-Peak Current, Current, Crest Factor, Current Total Harmonic Distortion (THD) (with the WR8KHD-THREEPHASEHARMONICS option).
Power, Efficiency, Other: Real, Apparent, and Reactive Power, Peak Positive Real Power, Peak Negative Real Power, Power Total Harmonic Distortion (THD) (with the WR8KHD-THREEPHASEHARMONICS option), Power Factor, Phase Angle, Incremental Efficiency, Total Efficiency, Frequency.
Motor Mechanical + Other: Torque, Speed1, Speed2, Angle1, Angle 2 (as defined by sensor, or adjusted with Offset Angle setting), Mechanical Power, AC induction motor Slip.
Source Selections: Voltage: Va, Vb, Vc, Va-b, Vb-c, Vc-a, Vr, Vs, Vt, Vr-s, Vs-t, Vt-r, Ia, Ib, Ic, Ir, Is, It, Vbus, Ibus, Mechanical. Up to 10 rows (sources) and 12 columns (measurements) may be displayed in the table at any time. Source selections dependent on Wiring Configuration selections and Line-Line to Line-Neutral selections.
Motor Mechanical Interface Speed+Direction: Analog Tachometer (0-xVdc = speed), Digital Tachometer (x pulse/revolution = speed), Applied Voltage. Controlled Area Network (CAN) Serial Data (CANbus TDME option must be ordered separately), Hall Sensors (Angle Tracking Observer filter may be applied to this selection).
Speed+Direction+Position: Resolver, SinCos, KMZ60, Quadrature Encoder Interface (QEI) (A, B, and optional Z input), Angle Tracking Observer filter may be applied to all selections.
Torque: Analog 0-Vdc = Torque, Analog mV/V = Torque, Analog Frequency Modulated = Torque, Motor Constant K * Current = Torque, Controlled Area Network (CAN) Serial Data = Torque. Source is CAN message with embedded digital data (CANbus TDME option must be ordered separately).
Per-cycle "Synthesized" Waveforms and Statistics Waveforms: A time-correlated waveform of any per-cycle Numerics Table measurement parameter may be created and displayed anywhere on the grid. Up to 12 detailed per-cycle Waveforms may be displayed at one time.
Statistics: Detailed statistics on up to 12 per-cycle Numerics Table measurement parameters may be displayed at one time.
Harmonics Calculation Option (MDA800-HARMONICS) Fundamental Frequency Detection: Fixed Frequency Detection mode (for Line AC inputs only) or Varying Frequency Detection Mode (for Line AC inputs or Inverter PWM outputs).
Number of Harmonics Calculated: Up to 100 (Fixed Frequency) or up to 50 (Varying Frequency).
Harmonics Table and Spectral Waveforms: Display values by Harmonic Order for up to 9 quantities (Voltage, Current and Power) for any or all of three phases (limited to Voltage and Current in Fixed Frequency mode).
Units/Limits Selection: Select from either Amps/Volts/Watts, %, or dB. For Fixed Frequency, selection Limits file or create and assign custom limits file.
Zoom+Gate Mode Press "Zoom+Gate" button to create zooms of all voltage, current and mechanical signals (analog or digital) and simultaneously gate the Numerics and Statistics tables to the zoomed area. Displayed per-cycle "synthesized" Waveforms are simultaneously time-correlated to the zoomed area. Scroll through the full acquisition using Zoom position and ratio (size) controls and view instantaneous updates of table values.
Typical Accuracy Typically within 1%, depending on voltage and current measurement device.


Display System

Size Color 15.6" widescreen capacitive touch screen
Resolution 1920 x 1080 pixels
Number of traces Display a maximum of 40 traces. Simultaneously display channel, zoom, memory, math, and X-Y traces.
Grid Styles Auto, Single, Dual, Triplex, Quad, Octal, X-Y, Single+X-Y, Dual+X-Y, Tandem, Triad, Quattro, Twelve, Sixteen, Twenty, DualX-Y, TripleX-Y, QuattroX-Y, HexX-Y, OctalX-Y, DualX-YSingle, DualX-YDual, HexX-Ydual.
Supports Normal Display Mode (1 grid style, selectable) or Q-Scape Display Mode (4 different tabs, each with individually selectable grid styles). Q-Scape tabbed displays may be viewed in Single, Dual, or Mosaic mode.
Waveform Representation Sample dots joined, or sample dots only


Persistence Display

Analog and Color-Graded Persistence Waveforms of ≤500Mpts:
Variable saturation levels; stores each trace’s persistence data in memory
Persistence Types Waveforms of ≤500Mpts:
Select analog, color, or three-dimensional
Trace Selection Waveforms of ≤500Mpts:
Activate persistence on all or any combination of traces
Persistence Aging Waveforms of ≤500Mpts:
Select from 500 ms to infinity
Sweep Display Modes Waveforms of ≤500Mpts:
All accumulated, or all accumulated with last trace highlighted


Zoom Expansion Traces

Zoom Expansion Traces Display up to 12 Zoom and 12 Math/Zoom traces


Internal Waveform Memory

Internal Waveform Memory 12 active waveform memory traces (M1-M12) store 16 bit/point full length waveforms. Waveforms can be stored to any number of files limited only by the data storage media capacity.


Setup Storage

Front Panel and Instrument Status Store to the internal hard drive, over the network, or to a USB-connected peripheral device.


Automatic Setup

Auto Setup Automatically sets timebase, trigger, and sensitivity to display a wide range of repetitive signals
Find Vertical Scale Automatically sets the vertical sensitivity and offset for the selected channel to display a waveform with the maximum dynamic range


Calibration

Calibration Stability Calibration ensured within +/-5°C operating temperature. Manual calibration may be invoked if outside this temperature range.


Processor/CPU

Type Intel® Core i5-6500 Quad Core, 3.2 GHz (or better)
Processor Memory 16 GB standard for standard memory with 32 GB optional.
32 GB standard for any memory option.
Operating System Microsoft Windows® 10
Oscilloscope Operating Software Teledyne LeCroy MAUI™ with OneTouch
Real Time Clock Date and time displayed with waveform in hardcopy files. SNTP support to synchronize to precision internal clocks.


Connectivity

Ethernet Port 2 x 10/100/1000BaseT Ethernet interface (RJ45 port)
USB Host Ports 4 side USB 3.1 Gen1 ports, 2 front USB 3.1 Gen1 ports
USB Device Port 1 port - USBTMC over USB 3.1 Gen1
GPIB Port (optional) Supports IEEE - 488.2 (External)
External Monitor Port 1 x DisplayPort, supports up to 4096x2304 @ 24 Hz
1 x HDMI, supports up to 4096x2304 @ 60 Hz
Remote Control Via Windows Automation, or via LeCroy Remote Command Set
Network Communication Standard VXI-11 or VICP, LXI Compatible


Auxiliary Input

Signal Types For external trigger input
Coupling 50 Ω: DC; 1 MΩ: AC, DC, GND
Max. Input Voltage 50 Ω
5V RMS, +/- 10V Peak

1 MΩ
400 V max (Peak DC+AC)


Auxiliary Output

Signal Types Select from output signal, control signals, off
Output Signal 500 Hz-5 MHz square wave or DC level; 3.3 V +/- 10% into 1 MΩ
Control Signals Trigger enabled, trigger out, pass/fail status, off
Connector Type BNC, located on rear panel


Probes

Probes Qty. (4) ÷10 Passive Probes
Probe System ProBus. Automatically detects and supports a variety of compatible probes
Scale Factors Automatically or manually selected depending on probe used
Calibration Output Default is 1kHz square wave, 1Vp-p (typical), output to probe hook. Settable from 500 Hz to 1 MHz square wave; 50 mV to 1.0V.


Power Requirements

Voltage 100 - 240 VAC ±10% at 47 - 63 Hz
100 - 120 VAC ±10% at 380 - 420 Hz
Automatic AC Voltage Selection
Nominal Power Consumption 400 W / 400 VA
Max. Power Consumption 500 W / 500 VA (with all PC peripherals and active probes connected to 8 channels)


Environmental

Temperature (Operating) +5 °C to +40 °C
Temperature (Non-Operating) -20 °C to +60 °C
Humidity (Operating) 5% to 90% relative humidity (non-condensing) up to +31 °C.
Upper limit derates to 50% relative humidity (non-condensing) at +40 °C.
Humidity (Non-Operating) 5% to 95% relative humidity (non-condensing) as tested per MIL-PRF-28800F
Altitude (Operating) Up to 10,000 ft. (3048 m) at or below +30 °C
Altitude (Non-Operating) Up to 40,000 ft. (12,192 m)
Random Vibration (Operating) 0.31 grms 5 Hz to 500 Hz, 20 minutes in each of three orthogonal axes
Random Vibration (Non-Operating) 2.4 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes
Functional Shock 30 g peak, half sine, 11 ms pulse, 3 shocks (positive and negative) in each of three orthogonal axes, 18 shocks total


Size and Weight

Dimensions (HWD) 13.6”H x 17.5”W x 7.7”D (345 mm x 445 mm x 196 mm)
Weight 24.4 lbs (11.1 kg)
Shipping Weight 37 lbs (16.8 kg)


Certifications

CE Certification
UL and cUL Listing
CE Compliant, UL and cUL listed; conforms to
UL 61010-1 (3rd Edition), UL 61010-2-030 (1st Edition)
CAN/CSA C22.2 No. 61010-1-12


Warranty and Service

Warranty and Service 3-year warranty; calibration recommended annually.
Optional service programs include extended warranty, upgrades, and calibration services.

MDA 8058HD スペック

Vertical - Analog Channels

Analog Bandwidth (Max) 500 MHz
Analog Bandwidth @ 50 Ω (-3 dB) (ProBus Input) 500 MHz
(≥1 mV/div)
Analog Bandwidth @ 1 MΩ (-3 dB) (ProBus Input) 500 MHz
Rise Time (10-90%, 50 Ω) 700 ps
Rise Time (20-80%, 50 Ω) 525 ps
Input Channels 8
Vertical Resolution 12 bits; up to 15 bits with enhanced resolution (ERES)
Effective Number of Bits (ENOB) 8.8 bits
Vertical Noise Floor (1 mV/div) 100 µVrms
Vertical Noise Floor (2 mV/div) 100 µVrms
Vertical Noise Floor (5 mV/div) 105 µVrms
Vertical Noise Floor (10 mV/div) 125 µVrms
Vertical Noise Floor (20 mV/div) 145 µVrms
Vertical Noise Floor (50 mV/div) 200 µVrms
Vertical Noise Floor (100 mV/div) 310 mVrms
Vertical Noise Floor (200 mV/div) 1.45 mVrms
Vertical Noise Floor (500 mV/div) 2.00 mVrms
Vertical Noise Floor (1 V/div) 3.15 mVrms
Sensitivity 50 Ω: 1 mV-1 V/div, fully variable;
1 MΩ: 1 mV-10 V/div, fully variable
DC Vertical Gain Accuracy (Gain Component of DC Accuracy) ±(0.5%) FS, offset at 0 V
Channel-Channel Isolation DC-200 MHz: 70 dB (>3000:1),
200-500 MHz: 60 dB (>1000:1)
(For any two input channels, same V/div settings, typical)
Offset Range 50 Ω
±1.6 V @ 1 mV - 4.95 mV/div
±4 V @ 5 mV - 9.9 mV/div
±8 V @ 10 mV - 19.8 mV/div
±10 V @ 20 mV - 1 V/div

1 MΩ
±1.6 V @ 1 mV - 4.95 mV/div
±4 V @ 5 mV - 9.9 mV/div
±8 V @ 10 mV - 19.8 mV/div
±16 V @ 20 mV - 100 mV/div
±80 V @ 102 mV - 198 mV/div
±160 V @ 200 mV - 1 V/div
±400 V @ 1.02 V - 10 V/div
DC Vertical Offset Accuracy ±(0.5% of offset setting + 0.5% FS + 1mV)
Maximum Input Voltage 50 Ω: 5 Vrms,
1 MΩ: 400 V max
(DC + Peak AC ≤ 10 kHz)
Input Coupling 1 MΩ: AC, DC, GND; 50 Ω: DC, GND
Input Impedance 50 Ω+/-2% or 1 MΩ||19pF, 10 MΩ || 10 pF
Bandwidth Limiters 20MHz, 200MHz, 350 MHz
Rescaling Length: meters, inches, feet, yards, miles; Mass: grams, slugs; Temperature: celsius, fahrenheit, kelvin; Angle: radian, arcdegr, arcmin, arcsec, cycles, revolutions, turns; Velocity: m/s, in/s, ft/s, yd/s, miles/s; Acceleration: m/s2, in/s2, ft/s2, g0; Volume: liters, cubic meters, cubic inches, cubic feet, cubic yards; Force (Weight): newton, grain, ounce, pound; Pressure: pascal, bar, atmosphere (technical), atmosphere (standard), torr, psi; Electrical: volts, amps, watts, volt-amperes, volt-amperes reactive, farad, coulomb, ohm, siemen, volt/meter, coulomb/m2, farad/meter, siemen/meter, power factor; Magnetic: weber, tesla, henry, amp/meter, henry/meter; Energy: joule, Btu, calorie; Rotating Machine: radian/second, frequency, revolution/second, revolution/minute, N?m, lb-ft, lb-in, oz-in, watt, horsepower; Other: %.


Horizontal - Analog Channels

Timebases Internal timebase common to 8 input channels
Acquisition Modes Real-time, Roll, Sequence
Time/Division Range 100 ps/div - 5 ks/div with standard memory (up to 10 ks/div with 500MPT memory, 25 ks/div with 1000MPT memory, 50 ks/div with 2000MPT memory, 100 ks/div with 5000MPT memory);
Roll Mode available at ≥ 100 ms/div and ≤ 5 MS/s
Clock Accuracy +/-1 ppm + 1 ppm/year from calibration
Sample Clock Jitter up to 10µs Acquired Time Range:
80 fsrms (Internal Timebase Reference)

up to 10ms Acquired Time Range:
150 fsrms (Internal Timebase Reference)
Delta Time Measurement Accuracy \sqrt{2}*\sqrt{(\frac{Noise}{SlewRate})^2+(Sample Clock Jitter)^2) (RMS)+(clock accuracy*reading)(seconds)
Jitter Measurement Floor \sqrt{(\frac{Noise}{SlewRate})^2+(Sample Clock Jitter)^2\; seconds\; rms\; (TIE)}
Channel-Channel Deskew Range ±9 x time/div. setting, 100 ms max., each channel
External Timebase Reference (Input) 10MHz +/-25ppm at 0 to 10dBm into 50 Ohms
External Timebase Reference (Output) 10MHz, 5.0 dBm +/-2.5 dBm, sinewave synchronized to reference being used (internal or external reference)


Acquisition - Analog Channels

Sample Rate (Single-shot) 10 GS/s on 8 Ch with Enhanced Sample Rate
Memory Length (4 Ch / 2 Ch / 1Ch)
(Number of Segments)
50M/100M/200M
(65,536)
Memory Length Options (4 Ch / 2 Ch / 1Ch)
(Number of Segments)
WR8KHD-500MPT Option:
125M / 250M / 500M (65,535)
WR8KHD-1000MPT Option:
250M / 500M / 1000M (65,535)
WR8KHD-2000MPT Option:
500M / 1000M / 2000M (65,535)
WR8KHD-5000MPT Option:
1250M / 2500M / 5000M (65,535)

Maximum analysis memory: 500 Mpts per channel
Intersegment Time 1.5 µs
Averaging Summed averaging to 1 million sweeps; continuous averaging to 1 million sweeps
(Waveforms of ≤500Mpts)
Enhanced Resolution (ERES) From 12.5 to 15 bits vertical resolution
Envelope (Extrema) Envelope, floor, or roof for up to 1 million sweeps
(Waveforms of ≤500Mpts)
Interpolation Linear or Sin x/x (2 pt and 5 pt)
(Waveforms of ≤500Mpts)


Vertical, Horizontal, Acquisition - Digital Channels

Maximum Input Frequency 500 MHz
Minimum Detectable Pulse Width 1 ns
Input Channels 16 Digital channels (with WR8KHD-MSO option)
Input Impedance (Flying Leads) 100 kΩ || 5 pF
Input Dynamic Range ± 20V
Maximum Input Voltage ±30V Peak
Maximum Input Voltage Swing 400mV
Threshold Groupings Pod 2: D15 - D8, Pod 1: D7 - D0
Threshold Selections TTL, ECL, CMOS (2.5 V, 3.3 V, 5 V), PECL, LVDS or User Defined
Threshold Accuracy ±(3% of threshold setting + 100mV)
User Defined Threshold Range ±10 V in 20 mV steps
User Defined Hysteresis Range 100 mV to 1.4 V in 100 mV steps
Sample Rate 2.5GS/s
Record Length Standard: 50 Mpts
Any memory option: 500 Mpts
Channel-to-Channel Skew 350 ps


Triggering System

Modes Acquisition of ≤500Mpts:
Normal, Auto, Single, and Stop

Acquisition of >500Mpts:
Single
Sources Any input channel, Ext, Ext/10, or Line; slope and level unique to each source (except line trigger)
Coupling DC, AC, HFRej, LFRej
Pre-trigger Delay 0-100% of memory size
Post-trigger Delay No limitation
Hold-off From 2 ns up to 20 s or from 1 to 99,999,999 events
Trigger and Interpolator Jitter ≤ 2.5 psrms (typical)
<0.1 ps RMS (typical, software assisted)
Internal Trigger Level Range ±4.1 div from center (typical)
External Trigger Level Range Ext (±0.4 V); Ext/10 (±4 V)
Maximum Trigger Rate 650,000 waveforms/second (in Sequence Mode, up to 8 channels)
Trigger Sensitivity with Edge Trigger ProBus Inputs 1.5 div @ < 500 MHz
1 div @ < 200 MHz
0.9 div @ < 10 MHz
(DC, AC, and LFRej coupling, ≥ 2 mV/div, 50 Ω)
Trigger Sensitivity with Edge Trigger (Aux Input) 1.5 div @ < 500 MHz
1 div @ < 200 MHz
0.9 div @ < 10 MHz
(DC, AC, and LFRej coupling)
Max. Trigger Frequency, SMART Trigger 500 MHz


Trigger Types

Edge Triggers when signal meets slope (positive, negative, or either) and level condition.
Width Triggers on positive or negative glitches with selectable widths.
minimum width 750ps, Maximum Width: 20s
Glitch Triggers on positive or negative glitches with selectable widths. minimum width 750ps, Maximum Width: 20s
Window Triggers when signal exits a window defined by adjustable thresholds
Pattern Logic combination (AND, NAND, OR, NOR) of up to 9 inputs (8 channels and external trigger input). Each source can be high, low, or don’t care. The High and Low level can be selected independently. Triggers at start or end of the pattern.
Runt Trigger on positive or negative runts defined by two voltage limits and two time limits. Select between 1 ns and 20 ns.
Slew Rate Trigger on edge rates. Select limits for dV, dt, and slope. Select edge limits between 1 ns and 20 ns.
Interval Triggers on intervals selectable between 1 ns and 20 s.
Dropout Triggers if signal drops out for longer than selected time between 1 ns and 20 s.
Measurement Trigger Select from a large number of measurement parameters. Trigger on a measurement value with qualified limits.
Multi-Stage: Qualified (Timeout or State/Edge Qualified) Triggers on any input source only if a defined state or edge occurred on another input source. Delay between sources is selectable by time or events. (Note: event B pattern trigger cannot include analog channels).
Triggers with Exclusion Technology Glitch, Width, Interval, Runt, Slew Rate - Trigger on intermittent faults by specifying the expected behavior and triggering when that condition is not met
Multi-Stage: Qualified First In Sequence acquisition mode, triggers repeatably on event B only if a defined pattern, state, or edge (event A) is satisfied in the first segment of the acquisition. Holdoff between sources is selectable by time or events. (Note: event B pattern trigger cannot include analog channels).
TriggerScan A Trigger Trainer analyzes the waveforms, identifies normal behavior, and then sets up a large set of rare event smart trigger setups that target abnormal behavior. The trainer ‘learns’ trigger setups based on slew rates, periods, amplitudes outside of a range and then applies them sequentially.


Low Speed Serial Protocol Trigger (Optional)

Supported Protocols I2C, I3C, SPI (SPI, SSPI, SIOP), UART-RS232, CAN1.1, CAN2.0, CAN FD, LIN, FlexRay, SENT, MIL-STD-1553, AudioBus
(I2S, LJ, RJ, TDM), USB1.x/2.0, SPMI


Measurement Tools

Measurement Functionality Display up to 12 measurement parameters together with statistics, including mean, minimum, maximum, standard deviation, and total number. Each occurrence of each parameter is measured and added to the statistics table. Histicons provide a fast, dynamic view of parameters and waveshape characteristics. Parameter math allows addition, subtraction, multiplication, or division of two different parameters. Parameter gates define the location for measurement on the source waveform. Parameter accept criteria define allowable values based on range setting or waveform state.
Measurement Parameters - Horizontal + Jitter Cycles (number of), Delay (from trigger, 50%), Δ Delay (50%), Duty Cycle (50%, @level), Edges (number of, @level), Fall Time (90-10, @levels), Frequency (50%, @level), Half Period (@level), Hold Time (@level), N Cycle Jitter (peak-peak), Number of Points, Period (50%, @level), Δ Period (@level), Phase (@level), Rise Time (10-90, @levels), Setup (@levels), Skew (@levels), Slew Rate (@levels), Time Interval Error (@level), Time (@level), Δ Time (@level), Width (50%, @level), Δ Width (@level), X(value)@max, X(value)@min
Measurement Parameters - Vertical Amplitude, Base, Level@X, Maximum, Mean, Median, Minimum, Peak-to-Peak, RMS, Std. Deviation, Top.
Measurement Parameters - Pulse Area, Base, Fall Time (90-10, 80-20, @levels), Overshoot (positive, negative), Rise Time (10-90, 80-20, @levels), Top, Width (50%)
Measurement Parameters - Statistical (on Histograms) Full Width (@ Half Max, @ %), Amplitude, Base, Peak @ Max Population, Maximum, Mean, Median, Minimum, Mode, Range, RMS, Std. Deviation, Top, X(value)@Peak, Peaks (number of), Percentile, Population (@bin, total)


Math Tools

Math Functionality Display up to 12 math functions traces (F1-F12). The easy-to-use graphical interface simplifies setup of up to two operations on each function trace, and function traces can be chained together to perform math-on-math.
Math Operators - Basic Math Average (summed), Average (continuous), Difference (-), Envelope, Floor, Invert (negate), Product (x), Ratio (/), Reciprocal, Rescale (with units), Roof, Sum (+).
Math Operators - Digital (incl. with MSO models/options) Digital AND, Digital DFlipFlop, Digital NAND, Digital NOR, Digital NOT, Digital OR, Digital XOR
Math Operators - Filters Enhanced resolution (to 15 bits vertical), Interpolate (cubic, quadratic, sinx/x), (SinX)/x.
Math Operators - Frequency Analysis FFT (power spectrum, magnitude, phase, power density, real, imaginary, magnitude squared), up to full record length. Select from Rectangular, VonHann, Hamming, FlatTop and Blackman Harris windows.
Math Operators - Functions Absolute value, Correlation (two waveforms), Derivative, Deskew (resample), Exp (base e), Exp (base 10), Integral, Invert (negate), Log (base e), Log (base 10), Reciprocal, Rescale (with units), Square, Square root, Zoom (identity).
Math Operators - Other Segment, Sparse


Measurement and Math Integration

Measurement and Math Integration Histograms to display statistical distributions of up to 2 billion measurement parameters. Trend (datalog) of up to 1 million measurement parameters. Track (display parameter vs. time, time-correlated to acquisitions) any parameter. Persistence histogram and persistence trace (mean, range, sigma)


Pass/Fail Testing

Pass/Fail Testing Display up to 12 pass/fail queries using a Single or Dual Parameter Comparison (compare All values, or Any value <. ≤, =, >, ≥, within limit ±Δ value or %) or Mask Test (pre-defined or user-defined mask, waveform All In, All Out, Any In, or Any Out conditions). Combine queries into a boolean expression to Pass or Fail IF "All True", "All False", "Any True", "Any False", or groups or "All" or "Any", with following THEN Save (waveforms), Stop, Alarm, (send) Pulse, Hardcopy (send email, save screen image, save to clipboard, send to printer), or (save) LabNotebook.


Three-phase Electrical and Mechanical Motor Drive Analysis Software

Setup Capability Measurement Locations: AC Input, DC Bus (Link), Drive Output, Mechanical Output.
Wiring Configurations: AC Input: 1-phase / 2-wire (1V1A); 1-phase / 3-wire (2V/2A); 3-phase / 3-wire (2V2A); 3-phase / 3-wire (3V3A); 3-phase / 4-wire (3V3A); None. DC Bus: 1-phase / 2-wire (1V1A); None. Drive Output: 1-phase / Half-Bridge (1V1A); 1-phase / Full-Bridge (1V1A); 3-phase / 3-wire (2V2A); 3-phase / 3-wire (3V3A); 3-phase / 4-wire (3V3A); None.
Harmonic Filter: Select either Full Spectrum or Fundamental only. With WR8KHD-THREEPHASEHARMONICS option, also select Fundamental + N Harmonics or Range (maximum 50th harmonic in both cases).
Sync (per-cycle) Measurement Signal: Independently settable for AC Input, DC Bus, Drive Output and Mechanical Output. Low pass filter (LPF) cutoff settable from 20 Hz to 1 MHz. Hysteresis settable from 0-100% full amplitude. Source can be any input analog channel, memory trace, or math function.
Voltage Measurement Method: Line-Line or Line-Neutral (with L-L to L-N conversion supported).
Calculation Waveform Sources: Any input channel or stored memory trace.
Numerics Measurement Table Selections Voltage: RMS voltage, AC Voltage, DC Voltage, Peak Positive Voltage, Peak Negative Voltage, Peak-Peak Voltage, Voltage, Crest Factor, Voltage Total Harmonic Distortion (THD) (with the WR8KHD-THREEPHASEHARMONICS option).
Current: RMS Current, AC Current, DC Current, Peak Positive Current, Peak Negative Current, Peak-Peak Current, Current, Crest Factor, Current Total Harmonic Distortion (THD) (with the WR8KHD-THREEPHASEHARMONICS option).
Power, Efficiency, Other: Real, Apparent, and Reactive Power, Peak Positive Real Power, Peak Negative Real Power, Power Total Harmonic Distortion (THD) (with the WR8KHD-THREEPHASEHARMONICS option), Power Factor, Phase Angle, Incremental Efficiency, Total Efficiency, Frequency.
Motor Mechanical + Other: Torque, Speed1, Speed2, Angle1, Angle 2 (as defined by sensor, or adjusted with Offset Angle setting), Mechanical Power, AC induction motor Slip.
Source Selections: Voltage: Va, Vb, Vc, Va-b, Vb-c, Vc-a, Vr, Vs, Vt, Vr-s, Vs-t, Vt-r, Ia, Ib, Ic, Ir, Is, It, Vbus, Ibus, Mechanical. Up to 10 rows (sources) and 12 columns (measurements) may be displayed in the table at any time. Source selections dependent on Wiring Configuration selections and Line-Line to Line-Neutral selections.
Motor Mechanical Interface Speed+Direction: Analog Tachometer (0-xVdc = speed), Digital Tachometer (x pulse/revolution = speed), Applied Voltage. Controlled Area Network (CAN) Serial Data (CANbus TDME option must be ordered separately), Hall Sensors (Angle Tracking Observer filter may be applied to this selection).
Speed+Direction+Position: Resolver, SinCos, KMZ60, Quadrature Encoder Interface (QEI) (A, B, and optional Z input), Angle Tracking Observer filter may be applied to all selections.
Torque: Analog 0-Vdc = Torque, Analog mV/V = Torque, Analog Frequency Modulated = Torque, Motor Constant K * Current = Torque, Controlled Area Network (CAN) Serial Data = Torque. Source is CAN message with embedded digital data (CANbus TDME option must be ordered separately).
Per-cycle "Synthesized" Waveforms and Statistics Waveforms: A time-correlated waveform of any per-cycle Numerics Table measurement parameter may be created and displayed anywhere on the grid. Up to 12 detailed per-cycle Waveforms may be displayed at one time.
Statistics: Detailed statistics on up to 12 per-cycle Numerics Table measurement parameters may be displayed at one time.
Harmonics Calculation Option (MDA800-HARMONICS) Fundamental Frequency Detection: Fixed Frequency Detection mode (for Line AC inputs only) or Varying Frequency Detection Mode (for Line AC inputs or Inverter PWM outputs).
Number of Harmonics Calculated: Up to 100 (Fixed Frequency) or up to 50 (Varying Frequency).
Harmonics Table and Spectral Waveforms: Display values by Harmonic Order for up to 9 quantities (Voltage, Current and Power) for any or all of three phases (limited to Voltage and Current in Fixed Frequency mode).
Units/Limits Selection: Select from either Amps/Volts/Watts, %, or dB. For Fixed Frequency, selection Limits file or create and assign custom limits file.
Zoom+Gate Mode Press "Zoom+Gate" button to create zooms of all voltage, current and mechanical signals (analog or digital) and simultaneously gate the Numerics and Statistics tables to the zoomed area. Displayed per-cycle "synthesized" Waveforms are simultaneously time-correlated to the zoomed area. Scroll through the full acquisition using Zoom position and ratio (size) controls and view instantaneous updates of table values.
Typical Accuracy Typically within 1%, depending on voltage and current measurement device.


Display System

Size Color 15.6" widescreen capacitive touch screen
Resolution 1920 x 1080 pixels
Number of traces Display a maximum of 40 traces. Simultaneously display channel, zoom, memory, math, and X-Y traces.
Grid Styles Auto, Single, Dual, Triplex, Quad, Octal, X-Y, Single+X-Y, Dual+X-Y, Tandem, Triad, Quattro, Twelve, Sixteen, Twenty, DualX-Y, TripleX-Y, QuattroX-Y, HexX-Y, OctalX-Y, DualX-YSingle, DualX-YDual, HexX-Ydual.
Supports Normal Display Mode (1 grid style, selectable) or Q-Scape Display Mode (4 different tabs, each with individually selectable grid styles). Q-Scape tabbed displays may be viewed in Single, Dual, or Mosaic mode.
Waveform Representation Sample dots joined, or sample dots only


Persistence Display

Analog and Color-Graded Persistence Waveforms of ≤500Mpts:
Variable saturation levels; stores each trace’s persistence data in memory
Persistence Types Waveforms of ≤500Mpts:
Select analog, color, or three-dimensional
Trace Selection Waveforms of ≤500Mpts:
Activate persistence on all or any combination of traces
Persistence Aging Waveforms of ≤500Mpts:
Select from 500 ms to infinity
Sweep Display Modes Waveforms of ≤500Mpts:
All accumulated, or all accumulated with last trace highlighted


Zoom Expansion Traces

Zoom Expansion Traces Display up to 12 Zoom and 12 Math/Zoom traces


Internal Waveform Memory

Internal Waveform Memory 12 active waveform memory traces (M1-M12) store 16 bit/point full length waveforms. Waveforms can be stored to any number of files limited only by the data storage media capacity.


Setup Storage

Front Panel and Instrument Status Store to the internal hard drive, over the network, or to a USB-connected peripheral device.


Automatic Setup

Auto Setup Automatically sets timebase, trigger, and sensitivity to display a wide range of repetitive signals
Find Vertical Scale Automatically sets the vertical sensitivity and offset for the selected channel to display a waveform with the maximum dynamic range


Calibration

Calibration Stability Calibration ensured within +/-5°C operating temperature. Manual calibration may be invoked if outside this temperature range.


Processor/CPU

Type Intel® Core i5-6500 Quad Core, 3.2 GHz (or better)
Processor Memory 16 GB standard for standard memory with 32 GB optional.
32 GB standard for any memory option.
Operating System Microsoft Windows® 10
Oscilloscope Operating Software Teledyne LeCroy MAUI™ with OneTouch
Real Time Clock Date and time displayed with waveform in hardcopy files. SNTP support to synchronize to precision internal clocks.


Connectivity

Ethernet Port 2 x 10/100/1000BaseT Ethernet interface (RJ45 port)
USB Host Ports 4 side USB 3.1 Gen1 ports, 2 front USB 3.1 Gen1 ports
USB Device Port 1 port - USBTMC over USB 3.1 Gen1
GPIB Port (optional) Supports IEEE - 488.2 (External)
External Monitor Port 1 x DisplayPort, supports up to 4096x2304 @ 24 Hz
1 x HDMI, supports up to 4096x2304 @ 60 Hz
Remote Control Via Windows Automation, or via LeCroy Remote Command Set
Network Communication Standard VXI-11 or VICP, LXI Compatible


Auxiliary Input

Signal Types For external trigger input
Coupling 50 Ω: DC; 1 MΩ: AC, DC, GND
Max. Input Voltage 50 Ω
5V RMS, +/- 10V Peak

1 MΩ
400 V max (Peak DC+AC)


Auxiliary Output

Signal Types Select from output signal, control signals, off
Output Signal 500 Hz-5 MHz square wave or DC level; 3.3 V +/- 10% into 1 MΩ
Control Signals Trigger enabled, trigger out, pass/fail status, off
Connector Type BNC, located on rear panel


Probes

Probes Qty. (4) ÷10 Passive Probes
Probe System ProBus. Automatically detects and supports a variety of compatible probes
Scale Factors Automatically or manually selected depending on probe used
Calibration Output Default is 1kHz square wave, 1Vp-p (typical), output to probe hook. Settable from 500 Hz to 1 MHz square wave; 50 mV to 1.0V.


Power Requirements

Voltage 100 - 240 VAC ±10% at 47 - 63 Hz
100 - 120 VAC ±10% at 380 - 420 Hz
Automatic AC Voltage Selection
Nominal Power Consumption 400 W / 400 VA
Max. Power Consumption 500 W / 500 VA (with all PC peripherals and active probes connected to 8 channels)


Environmental

Temperature (Operating) +5 °C to +40 °C
Temperature (Non-Operating) -20 °C to +60 °C
Humidity (Operating) 5% to 90% relative humidity (non-condensing) up to +31 °C.
Upper limit derates to 50% relative humidity (non-condensing) at +40 °C.
Humidity (Non-Operating) 5% to 95% relative humidity (non-condensing) as tested per MIL-PRF-28800F
Altitude (Operating) Up to 10,000 ft. (3048 m) at or below +30 °C
Altitude (Non-Operating) Up to 40,000 ft. (12,192 m)
Random Vibration (Operating) 0.31 grms 5 Hz to 500 Hz, 20 minutes in each of three orthogonal axes
Random Vibration (Non-Operating) 2.4 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes
Functional Shock 30 g peak, half sine, 11 ms pulse, 3 shocks (positive and negative) in each of three orthogonal axes, 18 shocks total


Size and Weight

Dimensions (HWD) 13.6”H x 17.5”W x 7.7”D (345 mm x 445 mm x 196 mm)
Weight 24.4 lbs (11.1 kg)
Shipping Weight 37 lbs (16.8 kg)


Certifications

CE Certification
UL and cUL Listing
CE Compliant, UL and cUL listed; conforms to
UL 61010-1 (3rd Edition), UL 61010-2-030 (1st Edition)
CAN/CSA C22.2 No. 61010-1-12


Warranty and Service

Warranty and Service 3-year warranty; calibration recommended annually.
Optional service programs include extended warranty, upgrades, and calibration services.

MDA 8108HD スペック

Vertical - Analog Channels

Analog Bandwidth (Max) 1 GHz
Analog Bandwidth @ 50 Ω (-3 dB) (ProBus Input) 1 GHz
(≥1 mV/div)
Analog Bandwidth @ 1 MΩ (-3 dB) (ProBus Input) 500 MHz
Rise Time (10-90%, 50 Ω) 400 ps
Rise Time (20-80%, 50 Ω) 300 ps
Input Channels 8
Vertical Resolution 12 bits; up to 15 bits with enhanced resolution (ERES)
Effective Number of Bits (ENOB) 8.6 bits
Vertical Noise Floor (1 mV/div) 130 µVrms
Vertical Noise Floor (2 mV/div) 130 µVrms
Vertical Noise Floor (5 mV/div) 135 µVrms
Vertical Noise Floor (10 mV/div) 155 µVrms
Vertical Noise Floor (20 mV/div) 180 µVrms
Vertical Noise Floor (50 mV/div) 250 µVrms
Vertical Noise Floor (100 mV/div) 390 mVrms
Vertical Noise Floor (200 mV/div) 1.80 mVrms
Vertical Noise Floor (500 mV/div) 2.50 mVrms
Vertical Noise Floor (1 V/div) 4.00 mVrms
Sensitivity 50 Ω: 1 mV-1 V/div, fully variable;
1 MΩ: 1 mV-10 V/div, fully variable
DC Vertical Gain Accuracy (Gain Component of DC Accuracy) ±(0.5%) FS, offset at 0 V
Channel-Channel Isolation DC-200 MHz: 70 dB (>3000:1),
200-500 MHz: 60 dB (>1000:1),
500 MHz - 1 GHz: 50 dB (>300:1)
(For any two input channels, same V/div settings, typical)
Offset Range 50 Ω
±1.6 V @ 1 mV - 4.95 mV/div
±4 V @ 5 mV - 9.9 mV/div
±8 V @ 10 mV - 19.8 mV/div
±10 V @ 20 mV - 1 V/div

1 MΩ
±1.6 V @ 1 mV - 4.95 mV/div
±4 V @ 5 mV - 9.9 mV/div
±8 V @ 10 mV - 19.8 mV/div
±16 V @ 20 mV - 100 mV/div
±80 V @ 102 mV - 198 mV/div
±160 V @ 200 mV - 1 V/div
±400 V @ 1.02 V - 10 V/div
DC Vertical Offset Accuracy ±(0.5% of offset setting + 0.5% FS + 1mV)
Maximum Input Voltage 50 Ω: 5 Vrms,
1 MΩ: 400 V max
(DC + Peak AC ≤ 10 kHz)
Input Coupling 1 MΩ: AC, DC, GND; 50 Ω: DC, GND
Input Impedance 50 Ω+/-2% or 1 MΩ||19pF, 10 MΩ || 10 pF
Bandwidth Limiters 20MHz, 200MHz, 350 MHz, 500 MHz
Rescaling Length: meters, inches, feet, yards, miles; Mass: grams, slugs; Temperature: celsius, fahrenheit, kelvin; Angle: radian, arcdegr, arcmin, arcsec, cycles, revolutions, turns; Velocity: m/s, in/s, ft/s, yd/s, miles/s; Acceleration: m/s2, in/s2, ft/s2, g0; Volume: liters, cubic meters, cubic inches, cubic feet, cubic yards; Force (Weight): newton, grain, ounce, pound; Pressure: pascal, bar, atmosphere (technical), atmosphere (standard), torr, psi; Electrical: volts, amps, watts, volt-amperes, volt-amperes reactive, farad, coulomb, ohm, siemen, volt/meter, coulomb/m2, farad/meter, siemen/meter, power factor; Magnetic: weber, tesla, henry, amp/meter, henry/meter; Energy: joule, Btu, calorie; Rotating Machine: radian/second, frequency, revolution/second, revolution/minute, N?m, lb-ft, lb-in, oz-in, watt, horsepower; Other: %.


Horizontal - Analog Channels

Timebases Internal timebase common to 8 input channels
Acquisition Modes Real-time, Roll, Sequence
Time/Division Range 100 ps/div - 5 ks/div with standard memory (up to 10 ks/div with 500MPT memory, 25 ks/div with 1000MPT memory, 50 ks/div with 2000MPT memory, 100 ks/div with 5000MPT memory);
Roll Mode available at ≥ 100 ms/div and ≤ 5 MS/s
Clock Accuracy +/-1 ppm + 1 ppm/year from calibration
Sample Clock Jitter up to 10µs Acquired Time Range:
80 fsrms (Internal Timebase Reference)

up to 10ms Acquired Time Range:
150 fsrms (Internal Timebase Reference)
Delta Time Measurement Accuracy \sqrt{2}*\sqrt{(\frac{Noise}{SlewRate})^2+(Sample Clock Jitter)^2) (RMS)+(clock accuracy*reading)(seconds)
Jitter Measurement Floor \sqrt{(\frac{Noise}{SlewRate})^2+(Sample Clock Jitter)^2\; seconds\; rms\; (TIE)}
Channel-Channel Deskew Range ±9 x time/div. setting, 100 ms max., each channel
External Timebase Reference (Input) 10MHz +/-25ppm at 0 to 10dBm into 50 Ohms
External Timebase Reference (Output) 10MHz, 5.0 dBm +/-2.5 dBm, sinewave synchronized to reference being used (internal or external reference)


Acquisition - Analog Channels

Sample Rate (Single-shot) 10 GS/s on 8 Ch with Enhanced Sample Rate
Memory Length (4 Ch / 2 Ch / 1Ch)
(Number of Segments)
50M/100M/200M
(65,536)
Memory Length Options (4 Ch / 2 Ch / 1Ch)
(Number of Segments)
WR8KHD-500MPT Option:
125M / 250M / 500M (65,535)
WR8KHD-1000MPT Option:
250M / 500M / 1000M (65,535)
WR8KHD-2000MPT Option:
500M / 1000M / 2000M (65,535)
WR8KHD-5000MPT Option:
1250M / 2500M / 5000M (65,535)

Maximum analysis memory: 500 Mpts per channel
Intersegment Time 1.5 µs
Averaging Summed averaging to 1 million sweeps; continuous averaging to 1 million sweeps
(Waveforms of ≤500Mpts)
Enhanced Resolution (ERES) From 12.5 to 15 bits vertical resolution
Envelope (Extrema) Envelope, floor, or roof for up to 1 million sweeps
(Waveforms of ≤500Mpts)
Interpolation Linear or Sin x/x (2 pt and 5 pt)
(Waveforms of ≤500Mpts)


Vertical, Horizontal, Acquisition - Digital Channels

Maximum Input Frequency 500 MHz
Minimum Detectable Pulse Width 1 ns
Input Channels 16 Digital channels (with WR8KHD-MSO option)
Input Impedance (Flying Leads) 100 kΩ || 5 pF
Input Dynamic Range ± 20V
Maximum Input Voltage ±30V Peak
Maximum Input Voltage Swing 400mV
Threshold Groupings Pod 2: D15 - D8, Pod 1: D7 - D0
Threshold Selections TTL, ECL, CMOS (2.5 V, 3.3 V, 5 V), PECL, LVDS or User Defined
Threshold Accuracy ±(3% of threshold setting + 100mV)
User Defined Threshold Range ±10 V in 20 mV steps
User Defined Hysteresis Range 100 mV to 1.4 V in 100 mV steps
Sample Rate 2.5GS/s
Record Length Standard: 50 Mpts
Any memory option: 500 Mpts
Channel-to-Channel Skew 350 ps


Triggering System

Modes Acquisition of ≤500Mpts:
Normal, Auto, Single, and Stop

Acquisition of >500Mpts:
Single
Sources Any input channel, Ext, Ext/10, or Line; slope and level unique to each source (except line trigger)
Coupling DC, AC, HFRej, LFRej
Pre-trigger Delay 0-100% of memory size
Post-trigger Delay No limitation
Hold-off From 2 ns up to 20 s or from 1 to 99,999,999 events
Trigger and Interpolator Jitter ≤ 2.5 psrms (typical)
<0.1 ps RMS (typical, software assisted)
Internal Trigger Level Range ±4.1 div from center (typical)
External Trigger Level Range Ext (±0.4 V); Ext/10 (±4 V)
Maximum Trigger Rate 650,000 waveforms/second (in Sequence Mode, up to 8 channels)
Trigger Sensitivity with Edge Trigger ProBus Inputs 2 div @ < 1 GHz
1.5 div @ < 500 MHz
1 div @ < 200 MHz
0.9 div @ < 10 MHz
(DC, AC, and LFRej coupling, ≥ 2 mV/div, 50 Ω)
Trigger Sensitivity with Edge Trigger (Aux Input) 4.5 div @ < 1 GHz
1.5 div @ < 500 MHz
1 div @ < 200 MHz
0.9 div @ < 10 MHz
(DC, AC, and LFRej coupling)
Max. Trigger Frequency, SMART Trigger 1 GHz


Trigger Types

Edge Triggers when signal meets slope (positive, negative, or either) and level condition.
Width Triggers on positive or negative glitches with selectable widths.
minimum width 750ps, Maximum Width: 20s
Glitch Triggers on positive or negative glitches with selectable widths. minimum width 750ps, Maximum Width: 20s
Window Triggers when signal exits a window defined by adjustable thresholds
Pattern Logic combination (AND, NAND, OR, NOR) of up to 9 inputs (8 channels and external trigger input). Each source can be high, low, or don’t care. The High and Low level can be selected independently. Triggers at start or end of the pattern.
Runt Trigger on positive or negative runts defined by two voltage limits and two time limits. Select between 1 ns and 20 ns.
Slew Rate Trigger on edge rates. Select limits for dV, dt, and slope. Select edge limits between 1 ns and 20 ns.
Interval Triggers on intervals selectable between 1 ns and 20 s.
Dropout Triggers if signal drops out for longer than selected time between 1 ns and 20 s.
Measurement Trigger Select from a large number of measurement parameters. Trigger on a measurement value with qualified limits.
Multi-Stage: Qualified (Timeout or State/Edge Qualified) Triggers on any input source only if a defined state or edge occurred on another input source. Delay between sources is selectable by time or events. (Note: event B pattern trigger cannot include analog channels).
Triggers with Exclusion Technology Glitch, Width, Interval, Runt, Slew Rate - Trigger on intermittent faults by specifying the expected behavior and triggering when that condition is not met
Multi-Stage: Qualified First In Sequence acquisition mode, triggers repeatably on event B only if a defined pattern, state, or edge (event A) is satisfied in the first segment of the acquisition. Holdoff between sources is selectable by time or events. (Note: event B pattern trigger cannot include analog channels).
TriggerScan A Trigger Trainer analyzes the waveforms, identifies normal behavior, and then sets up a large set of rare event smart trigger setups that target abnormal behavior. The trainer ‘learns’ trigger setups based on slew rates, periods, amplitudes outside of a range and then applies them sequentially.


Low Speed Serial Protocol Trigger (Optional)

Supported Protocols I2C, I3C, SPI (SPI, SSPI, SIOP), UART-RS232, CAN1.1, CAN2.0, CAN FD, LIN, FlexRay, SENT, MIL-STD-1553, AudioBus
(I2S, LJ, RJ, TDM), USB1.x/2.0, SPMI


Measurement Tools

Measurement Functionality Display up to 12 measurement parameters together with statistics, including mean, minimum, maximum, standard deviation, and total number. Each occurrence of each parameter is measured and added to the statistics table. Histicons provide a fast, dynamic view of parameters and waveshape characteristics. Parameter math allows addition, subtraction, multiplication, or division of two different parameters. Parameter gates define the location for measurement on the source waveform. Parameter accept criteria define allowable values based on range setting or waveform state.
Measurement Parameters - Horizontal + Jitter Cycles (number of), Delay (from trigger, 50%), Δ Delay (50%), Duty Cycle (50%, @level), Edges (number of, @level), Fall Time (90-10, @levels), Frequency (50%, @level), Half Period (@level), Hold Time (@level), N Cycle Jitter (peak-peak), Number of Points, Period (50%, @level), Δ Period (@level), Phase (@level), Rise Time (10-90, @levels), Setup (@levels), Skew (@levels), Slew Rate (@levels), Time Interval Error (@level), Time (@level), Δ Time (@level), Width (50%, @level), Δ Width (@level), X(value)@max, X(value)@min
Measurement Parameters - Vertical Amplitude, Base, Level@X, Maximum, Mean, Median, Minimum, Peak-to-Peak, RMS, Std. Deviation, Top.
Measurement Parameters - Pulse Area, Base, Fall Time (90-10, 80-20, @levels), Overshoot (positive, negative), Rise Time (10-90, 80-20, @levels), Top, Width (50%)
Measurement Parameters - Statistical (on Histograms) Full Width (@ Half Max, @ %), Amplitude, Base, Peak @ Max Population, Maximum, Mean, Median, Minimum, Mode, Range, RMS, Std. Deviation, Top, X(value)@Peak, Peaks (number of), Percentile, Population (@bin, total)


Math Tools

Math Functionality Display up to 12 math functions traces (F1-F12). The easy-to-use graphical interface simplifies setup of up to two operations on each function trace, and function traces can be chained together to perform math-on-math.
Math Operators - Basic Math Average (summed), Average (continuous), Difference (-), Envelope, Floor, Invert (negate), Product (x), Ratio (/), Reciprocal, Rescale (with units), Roof, Sum (+).
Math Operators - Digital (incl. with MSO models/options) Digital AND, Digital DFlipFlop, Digital NAND, Digital NOR, Digital NOT, Digital OR, Digital XOR
Math Operators - Filters Enhanced resolution (to 15 bits vertical), Interpolate (cubic, quadratic, sinx/x), (SinX)/x.
Math Operators - Frequency Analysis FFT (power spectrum, magnitude, phase, power density, real, imaginary, magnitude squared), up to full record length. Select from Rectangular, VonHann, Hamming, FlatTop and Blackman Harris windows.
Math Operators - Functions Absolute value, Correlation (two waveforms), Derivative, Deskew (resample), Exp (base e), Exp (base 10), Integral, Invert (negate), Log (base e), Log (base 10), Reciprocal, Rescale (with units), Square, Square root, Zoom (identity).
Math Operators - Other Segment, Sparse


Measurement and Math Integration

Measurement and Math Integration Histograms to display statistical distributions of up to 2 billion measurement parameters. Trend (datalog) of up to 1 million measurement parameters. Track (display parameter vs. time, time-correlated to acquisitions) any parameter. Persistence histogram and persistence trace (mean, range, sigma)


Pass/Fail Testing

Pass/Fail Testing Display up to 12 pass/fail queries using a Single or Dual Parameter Comparison (compare All values, or Any value <. ≤, =, >, ≥, within limit ±Δ value or %) or Mask Test (pre-defined or user-defined mask, waveform All In, All Out, Any In, or Any Out conditions). Combine queries into a boolean expression to Pass or Fail IF "All True", "All False", "Any True", "Any False", or groups or "All" or "Any", with following THEN Save (waveforms), Stop, Alarm, (send) Pulse, Hardcopy (send email, save screen image, save to clipboard, send to printer), or (save) LabNotebook.


Three-phase Electrical and Mechanical Motor Drive Analysis Software

Setup Capability Measurement Locations: AC Input, DC Bus (Link), Drive Output, Mechanical Output.
Wiring Configurations: AC Input: 1-phase / 2-wire (1V1A); 1-phase / 3-wire (2V/2A); 3-phase / 3-wire (2V2A); 3-phase / 3-wire (3V3A); 3-phase / 4-wire (3V3A); None. DC Bus: 1-phase / 2-wire (1V1A); None. Drive Output: 1-phase / Half-Bridge (1V1A); 1-phase / Full-Bridge (1V1A); 3-phase / 3-wire (2V2A); 3-phase / 3-wire (3V3A); 3-phase / 4-wire (3V3A); None.
Harmonic Filter: Select either Full Spectrum or Fundamental only. With WR8KHD-THREEPHASEHARMONICS option, also select Fundamental + N Harmonics or Range (maximum 50th harmonic in both cases).
Sync (per-cycle) Measurement Signal: Independently settable for AC Input, DC Bus, Drive Output and Mechanical Output. Low pass filter (LPF) cutoff settable from 20 Hz to 1 MHz. Hysteresis settable from 0-100% full amplitude. Source can be any input analog channel, memory trace, or math function.
Voltage Measurement Method: Line-Line or Line-Neutral (with L-L to L-N conversion supported).
Calculation Waveform Sources: Any input channel or stored memory trace.
Numerics Measurement Table Selections Voltage: RMS voltage, AC Voltage, DC Voltage, Peak Positive Voltage, Peak Negative Voltage, Peak-Peak Voltage, Voltage, Crest Factor, Voltage Total Harmonic Distortion (THD) (with the WR8KHD-THREEPHASEHARMONICS option).
Current: RMS Current, AC Current, DC Current, Peak Positive Current, Peak Negative Current, Peak-Peak Current, Current, Crest Factor, Current Total Harmonic Distortion (THD) (with the WR8KHD-THREEPHASEHARMONICS option).
Power, Efficiency, Other: Real, Apparent, and Reactive Power, Peak Positive Real Power, Peak Negative Real Power, Power Total Harmonic Distortion (THD) (with the WR8KHD-THREEPHASEHARMONICS option), Power Factor, Phase Angle, Incremental Efficiency, Total Efficiency, Frequency.
Motor Mechanical + Other: Torque, Speed1, Speed2, Angle1, Angle 2 (as defined by sensor, or adjusted with Offset Angle setting), Mechanical Power, AC induction motor Slip.
Source Selections: Voltage: Va, Vb, Vc, Va-b, Vb-c, Vc-a, Vr, Vs, Vt, Vr-s, Vs-t, Vt-r, Ia, Ib, Ic, Ir, Is, It, Vbus, Ibus, Mechanical. Up to 10 rows (sources) and 12 columns (measurements) may be displayed in the table at any time. Source selections dependent on Wiring Configuration selections and Line-Line to Line-Neutral selections.
Motor Mechanical Interface Speed+Direction: Analog Tachometer (0-xVdc = speed), Digital Tachometer (x pulse/revolution = speed), Applied Voltage. Controlled Area Network (CAN) Serial Data (CANbus TDME option must be ordered separately), Hall Sensors (Angle Tracking Observer filter may be applied to this selection).
Speed+Direction+Position: Resolver, SinCos, KMZ60, Quadrature Encoder Interface (QEI) (A, B, and optional Z input), Angle Tracking Observer filter may be applied to all selections.
Torque: Analog 0-Vdc = Torque, Analog mV/V = Torque, Analog Frequency Modulated = Torque, Motor Constant K * Current = Torque, Controlled Area Network (CAN) Serial Data = Torque. Source is CAN message with embedded digital data (CANbus TDME option must be ordered separately).
Per-cycle "Synthesized" Waveforms and Statistics Waveforms: A time-correlated waveform of any per-cycle Numerics Table measurement parameter may be created and displayed anywhere on the grid. Up to 12 detailed per-cycle Waveforms may be displayed at one time.
Statistics: Detailed statistics on up to 12 per-cycle Numerics Table measurement parameters may be displayed at one time.
Harmonics Calculation Option (MDA800-HARMONICS) Fundamental Frequency Detection: Fixed Frequency Detection mode (for Line AC inputs only) or Varying Frequency Detection Mode (for Line AC inputs or Inverter PWM outputs).
Number of Harmonics Calculated: Up to 100 (Fixed Frequency) or up to 50 (Varying Frequency).
Harmonics Table and Spectral Waveforms: Display values by Harmonic Order for up to 9 quantities (Voltage, Current and Power) for any or all of three phases (limited to Voltage and Current in Fixed Frequency mode).
Units/Limits Selection: Select from either Amps/Volts/Watts, %, or dB. For Fixed Frequency, selection Limits file or create and assign custom limits file.
Zoom+Gate Mode Press "Zoom+Gate" button to create zooms of all voltage, current and mechanical signals (analog or digital) and simultaneously gate the Numerics and Statistics tables to the zoomed area. Displayed per-cycle "synthesized" Waveforms are simultaneously time-correlated to the zoomed area. Scroll through the full acquisition using Zoom position and ratio (size) controls and view instantaneous updates of table values.
Typical Accuracy Typically within 1%, depending on voltage and current measurement device.


Display System

Size Color 15.6" widescreen capacitive touch screen
Resolution 1920 x 1080 pixels
Number of traces Display a maximum of 40 traces. Simultaneously display channel, zoom, memory, math, and X-Y traces.
Grid Styles Auto, Single, Dual, Triplex, Quad, Octal, X-Y, Single+X-Y, Dual+X-Y, Tandem, Triad, Quattro, Twelve, Sixteen, Twenty, DualX-Y, TripleX-Y, QuattroX-Y, HexX-Y, OctalX-Y, DualX-YSingle, DualX-YDual, HexX-Ydual.
Supports Normal Display Mode (1 grid style, selectable) or Q-Scape Display Mode (4 different tabs, each with individually selectable grid styles). Q-Scape tabbed displays may be viewed in Single, Dual, or Mosaic mode.
Waveform Representation Sample dots joined, or sample dots only


Persistence Display

Analog and Color-Graded Persistence Waveforms of ≤500Mpts:
Variable saturation levels; stores each trace’s persistence data in memory
Persistence Types Waveforms of ≤500Mpts:
Select analog, color, or three-dimensional
Trace Selection Waveforms of ≤500Mpts:
Activate persistence on all or any combination of traces
Persistence Aging Waveforms of ≤500Mpts:
Select from 500 ms to infinity
Sweep Display Modes Waveforms of ≤500Mpts:
All accumulated, or all accumulated with last trace highlighted


Zoom Expansion Traces

Zoom Expansion Traces Display up to 12 Zoom and 12 Math/Zoom traces


Internal Waveform Memory

Internal Waveform Memory 12 active waveform memory traces (M1-M12) store 16 bit/point full length waveforms. Waveforms can be stored to any number of files limited only by the data storage media capacity.


Setup Storage

Front Panel and Instrument Status Store to the internal hard drive, over the network, or to a USB-connected peripheral device.


Automatic Setup

Auto Setup Automatically sets timebase, trigger, and sensitivity to display a wide range of repetitive signals
Find Vertical Scale Automatically sets the vertical sensitivity and offset for the selected channel to display a waveform with the maximum dynamic range


Calibration

Calibration Stability Calibration ensured within +/-5°C operating temperature. Manual calibration may be invoked if outside this temperature range.


Processor/CPU

Type Intel® Core i5-6500 Quad Core, 3.2 GHz (or better)
Processor Memory 16 GB standard for standard memory with 32 GB optional.
32 GB standard for any memory option.
Operating System Microsoft Windows® 10
Oscilloscope Operating Software Teledyne LeCroy MAUI™ with OneTouch
Real Time Clock Date and time displayed with waveform in hardcopy files. SNTP support to synchronize to precision internal clocks.


Connectivity

Ethernet Port 2 x 10/100/1000BaseT Ethernet interface (RJ45 port)
USB Host Ports 4 side USB 3.1 Gen1 ports, 2 front USB 3.1 Gen1 ports
USB Device Port 1 port - USBTMC over USB 3.1 Gen1
GPIB Port (optional) Supports IEEE - 488.2 (External)
External Monitor Port 1 x DisplayPort, supports up to 4096x2304 @ 24 Hz
1 x HDMI, supports up to 4096x2304 @ 60 Hz
Remote Control Via Windows Automation, or via LeCroy Remote Command Set
Network Communication Standard VXI-11 or VICP, LXI Compatible


Auxiliary Input

Signal Types For external trigger input
Coupling 50 Ω: DC; 1 MΩ: AC, DC, GND
Max. Input Voltage 50 Ω
5V RMS, +/- 10V Peak

1 MΩ
400 V max (Peak DC+AC)


Auxiliary Output

Signal Types Select from output signal, control signals, off
Output Signal 500 Hz-5 MHz square wave or DC level; 3.3 V +/- 10% into 1 MΩ
Control Signals Trigger enabled, trigger out, pass/fail status, off
Connector Type BNC, located on rear panel


Probes

Probes Qty. (4) ÷10 Passive Probes
Probe System ProBus. Automatically detects and supports a variety of compatible probes
Scale Factors Automatically or manually selected depending on probe used
Calibration Output Default is 1kHz square wave, 1Vp-p (typical), output to probe hook. Settable from 500 Hz to 1 MHz square wave; 50 mV to 1.0V.


Power Requirements

Voltage 100 - 240 VAC ±10% at 47 - 63 Hz
100 - 120 VAC ±10% at 380 - 420 Hz
Automatic AC Voltage Selection
Nominal Power Consumption 400 W / 400 VA
Max. Power Consumption 500 W / 500 VA (with all PC peripherals and active probes connected to 8 channels)


Environmental

Temperature (Operating) +5 °C to +40 °C
Temperature (Non-Operating) -20 °C to +60 °C
Humidity (Operating) 5% to 90% relative humidity (non-condensing) up to +31 °C.
Upper limit derates to 50% relative humidity (non-condensing) at +40 °C.
Humidity (Non-Operating) 5% to 95% relative humidity (non-condensing) as tested per MIL-PRF-28800F
Altitude (Operating) Up to 10,000 ft. (3048 m) at or below +30 °C
Altitude (Non-Operating) Up to 40,000 ft. (12,192 m)
Random Vibration (Operating) 0.31 grms 5 Hz to 500 Hz, 20 minutes in each of three orthogonal axes
Random Vibration (Non-Operating) 2.4 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes
Functional Shock 30 g peak, half sine, 11 ms pulse, 3 shocks (positive and negative) in each of three orthogonal axes, 18 shocks total


Size and Weight

Dimensions (HWD) 13.6”H x 17.5”W x 7.7”D (345 mm x 445 mm x 196 mm)
Weight 24.4 lbs (11.1 kg)
Shipping Weight 37 lbs (16.8 kg)


Certifications

CE Certification
UL and cUL Listing
CE Compliant, UL and cUL listed; conforms to
UL 61010-1 (3rd Edition), UL 61010-2-030 (1st Edition)
CAN/CSA C22.2 No. 61010-1-12


Warranty and Service

Warranty and Service 3-year warranty; calibration recommended annually.
Optional service programs include extended warranty, upgrades, and calibration services.

MDA 8208HD スペック

Vertical - Analog Channels

Analog Bandwidth (Max) 2 GHz
Analog Bandwidth @ 50 Ω (-3 dB) (ProBus Input) 2 GHz
(≥1 mV/div)
Analog Bandwidth @ 1 MΩ (-3 dB) (ProBus Input) 500 MHz
Rise Time (10-90%, 50 Ω) 235 ps
Rise Time (20-80%, 50 Ω) 176 ps
Input Channels 8
Vertical Resolution 12 bits; up to 15 bits with enhanced resolution (ERES)
Effective Number of Bits (ENOB) 8.4 bits
Vertical Noise Floor (1 mV/div) 170 µVrms
Vertical Noise Floor (2 mV/div) 170 µVrms
Vertical Noise Floor (5 mV/div) 175 µVrms
Vertical Noise Floor (10 mV/div) 200 µVrms
Vertical Noise Floor (20 mV/div) 235 µVrms
Vertical Noise Floor (50 mV/div) 330 µVrms
Vertical Noise Floor (100 mV/div) 510 µVrms
Vertical Noise Floor (200 mV/div) 2.35 mVrms
Vertical Noise Floor (500 mV/div) 3.25 mVrms
Vertical Noise Floor (1 V/div) 5.20 mVrms
Sensitivity 50 Ω: 1 mV-1 V/div, fully variable;
1 MΩ: 1 mV-10 V/div, fully variable
DC Vertical Gain Accuracy (Gain Component of DC Accuracy) ±(0.5%) FS, offset at 0 V
Channel-Channel Isolation DC-200 MHz: 70 dB (>3000:1),
200-500 MHz: 60 dB (>1000:1),
500 MHz - 1 GHz: 50 dB (>300:1),
1 GHz - 2 GHz: 40 dB (>100:1)
(For any two input channels, same V/div settings, typical)
Offset Range 50 Ω
±1.6 V @ 1 mV - 4.95 mV/div
±4 V @ 5 mV - 9.9 mV/div
±8 V @ 10 mV - 19.8 mV/div
±10 V @ 20 mV - 1 V/div

1 MΩ
±1.6 V @ 1 mV - 4.95 mV/div
±4 V @ 5 mV - 9.9 mV/div
±8 V @ 10 mV - 19.8 mV/div
±16 V @ 20 mV - 100 mV/div
±80 V @ 102 mV - 198 mV/div
±160 V @ 200 mV - 1 V/div
±400 V @ 1.02 V - 10 V/div
DC Vertical Offset Accuracy ±(0.5% of offset setting + 0.5% FS + 1mV)
Maximum Input Voltage 50 Ω: 5 Vrms,
1 MΩ: 400 V max
(DC + Peak AC ≤ 10 kHz)
Input Coupling 1 MΩ: AC, DC, GND; 50 Ω: DC, GND
Input Impedance 50 Ω+/-2% or 1 MΩ||19pF, 10 MΩ || 10 pF
Bandwidth Limiters 20MHz, 200MHz, 350 MHz, 500 MHz, 1 GHz
Rescaling Length: meters, inches, feet, yards, miles; Mass: grams, slugs; Temperature: celsius, fahrenheit, kelvin; Angle: radian, arcdegr, arcmin, arcsec, cycles, revolutions, turns; Velocity: m/s, in/s, ft/s, yd/s, miles/s; Acceleration: m/s2, in/s2, ft/s2, g0; Volume: liters, cubic meters, cubic inches, cubic feet, cubic yards; Force (Weight): newton, grain, ounce, pound; Pressure: pascal, bar, atmosphere (technical), atmosphere (standard), torr, psi; Electrical: volts, amps, watts, volt-amperes, volt-amperes reactive, farad, coulomb, ohm, siemen, volt/meter, coulomb/m2, farad/meter, siemen/meter, power factor; Magnetic: weber, tesla, henry, amp/meter, henry/meter; Energy: joule, Btu, calorie; Rotating Machine: radian/second, frequency, revolution/second, revolution/minute, N?m, lb-ft, lb-in, oz-in, watt, horsepower; Other: %.


Horizontal - Analog Channels

Timebases Internal timebase common to 8 input channels
Acquisition Modes Real-time, Roll, Sequence
Time/Division Range 100 ps/div - 5 ks/div with standard memory (up to 10 ks/div with 500MPT memory, 25 ks/div with 1000MPT memory, 50 ks/div with 2000MPT memory, 100 ks/div with 5000MPT memory);
Roll Mode available at ≥ 100 ms/div and ≤ 5 MS/s
Clock Accuracy +/-1 ppm + 1 ppm/year from calibration
Sample Clock Jitter up to 10µs Acquired Time Range:
80 fsrms (Internal Timebase Reference)

up to 10ms Acquired Time Range:
150 fsrms (Internal Timebase Reference)
Delta Time Measurement Accuracy \sqrt{2}*\sqrt{(\frac{Noise}{SlewRate})^2+(Sample Clock Jitter)^2) (RMS)+(clock accuracy*reading)(seconds)
Jitter Measurement Floor \sqrt{(\frac{Noise}{SlewRate})^2+(Sample Clock Jitter)^2\; seconds\; rms\; (TIE)}
Channel-Channel Deskew Range ±9 x time/div. setting, 100 ms max., each channel
External Timebase Reference (Input) 10MHz +/-25ppm at 0 to 10dBm into 50 Ohms
External Timebase Reference (Output) 10MHz, 5.0 dBm +/-2.5 dBm, sinewave synchronized to reference being used (internal or external reference)


Acquisition - Analog Channels

Sample Rate (Single-shot) 10 GS/s on 8 Ch with Enhanced Sample Rate
Memory Length (4 Ch / 2 Ch / 1Ch)
(Number of Segments)
50M/100M/200M
(65,536)
Memory Length Options (4 Ch / 2 Ch / 1Ch)
(Number of Segments)
WR8KHD-500MPT Option:
125M / 250M / 500M (65,535)
WR8KHD-1000MPT Option:
250M / 500M / 1000M (65,535)
WR8KHD-2000MPT Option:
500M / 1000M / 2000M (65,535)
WR8KHD-5000MPT Option:
1250M / 2500M / 5000M (65,535)

Maximum analysis memory: 500 Mpts per channel
Intersegment Time 1.5 µs
Averaging Summed averaging to 1 million sweeps; continuous averaging to 1 million sweeps
(Waveforms of ≤500Mpts)
Enhanced Resolution (ERES) From 12.5 to 15 bits vertical resolution
Envelope (Extrema) Envelope, floor, or roof for up to 1 million sweeps
(Waveforms of ≤500Mpts)
Interpolation Linear or Sin x/x (2 pt and 5 pt)
(Waveforms of ≤500Mpts)


Vertical, Horizontal, Acquisition - Digital Channels

Maximum Input Frequency 500 MHz
Minimum Detectable Pulse Width 1 ns
Input Channels 16 Digital channels (with WR8KHD-MSO option)
Input Impedance (Flying Leads) 100 kΩ || 5 pF
Input Dynamic Range ± 20V
Maximum Input Voltage ±30V Peak
Maximum Input Voltage Swing 400mV
Threshold Groupings Pod 2: D15 - D8, Pod 1: D7 - D0
Threshold Selections TTL, ECL, CMOS (2.5 V, 3.3 V, 5 V), PECL, LVDS or User Defined
Threshold Accuracy ±(3% of threshold setting + 100mV)
User Defined Threshold Range ±10 V in 20 mV steps
User Defined Hysteresis Range 100 mV to 1.4 V in 100 mV steps
Sample Rate 2.5GS/s
Record Length Standard: 50 Mpts
Any memory option: 500 Mpts
Channel-to-Channel Skew 350 ps


Triggering System

Modes Acquisition of ≤500Mpts:
Normal, Auto, Single, and Stop

Acquisition of >500Mpts:
Single
Sources Any input channel, Ext, Ext/10, or Line; slope and level unique to each source (except line trigger)
Coupling DC, AC, HFRej, LFRej
Pre-trigger Delay 0-100% of memory size
Post-trigger Delay No limitation
Hold-off From 2 ns up to 20 s or from 1 to 99,999,999 events
Trigger and Interpolator Jitter ≤ 2.5 psrms (typical)
<0.1 ps RMS (typical, software assisted)
Internal Trigger Level Range ±4.1 div from center (typical)
External Trigger Level Range Ext (±0.4 V); Ext/10 (±4 V)
Maximum Trigger Rate 650,000 waveforms/second (in Sequence Mode, up to 8 channels)
Trigger Sensitivity with Edge Trigger ProBus Inputs 2.5 div @ < 1 GHz
2 div @ < 1 GHz
1.5 div @ < 500 MHz
1 div @ < 200 MHz
0.9 div @ < 10 MHz
(DC, AC, and LFRej coupling, ≥ 2 mV/div, 50 Ω)
Trigger Sensitivity with Edge Trigger (Aux Input) 4.5 div @ < 1 GHz
1.5 div @ < 500 MHz
1 div @ < 200 MHz
0.9 div @ < 10 MHz
(DC, AC, and LFRej coupling)
Max. Trigger Frequency, SMART Trigger 2 GHz


Trigger Types

Edge Triggers when signal meets slope (positive, negative, or either) and level condition.
Width Triggers on positive or negative glitches with selectable widths.
minimum width 750ps, Maximum Width: 20s
Glitch Triggers on positive or negative glitches with selectable widths. minimum width 750ps, Maximum Width: 20s
Window Triggers when signal exits a window defined by adjustable thresholds
Pattern Logic combination (AND, NAND, OR, NOR) of up to 9 inputs (8 channels and external trigger input). Each source can be high, low, or don’t care. The High and Low level can be selected independently. Triggers at start or end of the pattern.
Runt Trigger on positive or negative runts defined by two voltage limits and two time limits. Select between 1 ns and 20 ns.
Slew Rate Trigger on edge rates. Select limits for dV, dt, and slope. Select edge limits between 1 ns and 20 ns.
Interval Triggers on intervals selectable between 1 ns and 20 s.
Dropout Triggers if signal drops out for longer than selected time between 1 ns and 20 s.
Measurement Trigger Select from a large number of measurement parameters. Trigger on a measurement value with qualified limits.
Multi-Stage: Qualified (Timeout or State/Edge Qualified) Triggers on any input source only if a defined state or edge occurred on another input source. Delay between sources is selectable by time or events. (Note: event B pattern trigger cannot include analog channels).
Triggers with Exclusion Technology Glitch, Width, Interval, Runt, Slew Rate - Trigger on intermittent faults by specifying the expected behavior and triggering when that condition is not met
Multi-Stage: Qualified First In Sequence acquisition mode, triggers repeatably on event B only if a defined pattern, state, or edge (event A) is satisfied in the first segment of the acquisition. Holdoff between sources is selectable by time or events. (Note: event B pattern trigger cannot include analog channels).
TriggerScan A Trigger Trainer analyzes the waveforms, identifies normal behavior, and then sets up a large set of rare event smart trigger setups that target abnormal behavior. The trainer ‘learns’ trigger setups based on slew rates, periods, amplitudes outside of a range and then applies them sequentially.


Low Speed Serial Protocol Trigger (Optional)

Supported Protocols I2C, I3C, SPI (SPI, SSPI, SIOP), UART-RS232, CAN1.1, CAN2.0, CAN FD, LIN, FlexRay, SENT, MIL-STD-1553, AudioBus
(I2S, LJ, RJ, TDM), USB1.x/2.0, SPMI


Measurement Tools

Measurement Functionality Display up to 12 measurement parameters together with statistics, including mean, minimum, maximum, standard deviation, and total number. Each occurrence of each parameter is measured and added to the statistics table. Histicons provide a fast, dynamic view of parameters and waveshape characteristics. Parameter math allows addition, subtraction, multiplication, or division of two different parameters. Parameter gates define the location for measurement on the source waveform. Parameter accept criteria define allowable values based on range setting or waveform state.
Measurement Parameters - Horizontal + Jitter Cycles (number of), Delay (from trigger, 50%), Δ Delay (50%), Duty Cycle (50%, @level), Edges (number of, @level), Fall Time (90-10, @levels), Frequency (50%, @level), Half Period (@level), Hold Time (@level), N Cycle Jitter (peak-peak), Number of Points, Period (50%, @level), Δ Period (@level), Phase (@level), Rise Time (10-90, @levels), Setup (@levels), Skew (@levels), Slew Rate (@levels), Time Interval Error (@level), Time (@level), Δ Time (@level), Width (50%, @level), Δ Width (@level), X(value)@max, X(value)@min
Measurement Parameters - Vertical Amplitude, Base, Level@X, Maximum, Mean, Median, Minimum, Peak-to-Peak, RMS, Std. Deviation, Top.
Measurement Parameters - Pulse Area, Base, Fall Time (90-10, 80-20, @levels), Overshoot (positive, negative), Rise Time (10-90, 80-20, @levels), Top, Width (50%)
Measurement Parameters - Statistical (on Histograms) Full Width (@ Half Max, @ %), Amplitude, Base, Peak @ Max Population, Maximum, Mean, Median, Minimum, Mode, Range, RMS, Std. Deviation, Top, X(value)@Peak, Peaks (number of), Percentile, Population (@bin, total)


Math Tools

Math Functionality Display up to 12 math functions traces (F1-F12). The easy-to-use graphical interface simplifies setup of up to two operations on each function trace, and function traces can be chained together to perform math-on-math.
Math Operators - Basic Math Average (summed), Average (continuous), Difference (-), Envelope, Floor, Invert (negate), Product (x), Ratio (/), Reciprocal, Rescale (with units), Roof, Sum (+).
Math Operators - Digital (incl. with MSO models/options) Digital AND, Digital DFlipFlop, Digital NAND, Digital NOR, Digital NOT, Digital OR, Digital XOR
Math Operators - Filters Enhanced resolution (to 15 bits vertical), Interpolate (cubic, quadratic, sinx/x), (SinX)/x.
Math Operators - Frequency Analysis FFT (power spectrum, magnitude, phase, power density, real, imaginary, magnitude squared), up to full record length. Select from Rectangular, VonHann, Hamming, FlatTop and Blackman Harris windows.
Math Operators - Functions Absolute value, Correlation (two waveforms), Derivative, Deskew (resample), Exp (base e), Exp (base 10), Integral, Invert (negate), Log (base e), Log (base 10), Reciprocal, Rescale (with units), Square, Square root, Zoom (identity).
Math Operators - Other Segment, Sparse


Measurement and Math Integration

Measurement and Math Integration Histograms to display statistical distributions of up to 2 billion measurement parameters. Trend (datalog) of up to 1 million measurement parameters. Track (display parameter vs. time, time-correlated to acquisitions) any parameter. Persistence histogram and persistence trace (mean, range, sigma)


Pass/Fail Testing

Pass/Fail Testing Display up to 12 pass/fail queries using a Single or Dual Parameter Comparison (compare All values, or Any value <. ≤, =, >, ≥, within limit ±Δ value or %) or Mask Test (pre-defined or user-defined mask, waveform All In, All Out, Any In, or Any Out conditions). Combine queries into a boolean expression to Pass or Fail IF "All True", "All False", "Any True", "Any False", or groups or "All" or "Any", with following THEN Save (waveforms), Stop, Alarm, (send) Pulse, Hardcopy (send email, save screen image, save to clipboard, send to printer), or (save) LabNotebook.


Three-phase Electrical and Mechanical Motor Drive Analysis Software

Setup Capability Measurement Locations: AC Input, DC Bus (Link), Drive Output, Mechanical Output.
Wiring Configurations: AC Input: 1-phase / 2-wire (1V1A); 1-phase / 3-wire (2V/2A); 3-phase / 3-wire (2V2A); 3-phase / 3-wire (3V3A); 3-phase / 4-wire (3V3A); None. DC Bus: 1-phase / 2-wire (1V1A); None. Drive Output: 1-phase / Half-Bridge (1V1A); 1-phase / Full-Bridge (1V1A); 3-phase / 3-wire (2V2A); 3-phase / 3-wire (3V3A); 3-phase / 4-wire (3V3A); None.
Harmonic Filter: Select either Full Spectrum or Fundamental only. With WR8KHD-THREEPHASEHARMONICS option, also select Fundamental + N Harmonics or Range (maximum 50th harmonic in both cases).
Sync (per-cycle) Measurement Signal: Independently settable for AC Input, DC Bus, Drive Output and Mechanical Output. Low pass filter (LPF) cutoff settable from 20 Hz to 1 MHz. Hysteresis settable from 0-100% full amplitude. Source can be any input analog channel, memory trace, or math function.
Voltage Measurement Method: Line-Line or Line-Neutral (with L-L to L-N conversion supported).
Calculation Waveform Sources: Any input channel or stored memory trace.
Numerics Measurement Table Selections Voltage: RMS voltage, AC Voltage, DC Voltage, Peak Positive Voltage, Peak Negative Voltage, Peak-Peak Voltage, Voltage, Crest Factor, Voltage Total Harmonic Distortion (THD) (with the WR8KHD-THREEPHASEHARMONICS option).
Current: RMS Current, AC Current, DC Current, Peak Positive Current, Peak Negative Current, Peak-Peak Current, Current, Crest Factor, Current Total Harmonic Distortion (THD) (with the WR8KHD-THREEPHASEHARMONICS option).
Power, Efficiency, Other: Real, Apparent, and Reactive Power, Peak Positive Real Power, Peak Negative Real Power, Power Total Harmonic Distortion (THD) (with the WR8KHD-THREEPHASEHARMONICS option), Power Factor, Phase Angle, Incremental Efficiency, Total Efficiency, Frequency.
Motor Mechanical + Other: Torque, Speed1, Speed2, Angle1, Angle 2 (as defined by sensor, or adjusted with Offset Angle setting), Mechanical Power, AC induction motor Slip.
Source Selections: Voltage: Va, Vb, Vc, Va-b, Vb-c, Vc-a, Vr, Vs, Vt, Vr-s, Vs-t, Vt-r, Ia, Ib, Ic, Ir, Is, It, Vbus, Ibus, Mechanical. Up to 10 rows (sources) and 12 columns (measurements) may be displayed in the table at any time. Source selections dependent on Wiring Configuration selections and Line-Line to Line-Neutral selections.
Motor Mechanical Interface Speed+Direction: Analog Tachometer (0-xVdc = speed), Digital Tachometer (x pulse/revolution = speed), Applied Voltage. Controlled Area Network (CAN) Serial Data (CANbus TDME option must be ordered separately), Hall Sensors (Angle Tracking Observer filter may be applied to this selection).
Speed+Direction+Position: Resolver, SinCos, KMZ60, Quadrature Encoder Interface (QEI) (A, B, and optional Z input), Angle Tracking Observer filter may be applied to all selections.
Torque: Analog 0-Vdc = Torque, Analog mV/V = Torque, Analog Frequency Modulated = Torque, Motor Constant K * Current = Torque, Controlled Area Network (CAN) Serial Data = Torque. Source is CAN message with embedded digital data (CANbus TDME option must be ordered separately).
Per-cycle "Synthesized" Waveforms and Statistics Waveforms: A time-correlated waveform of any per-cycle Numerics Table measurement parameter may be created and displayed anywhere on the grid. Up to 12 detailed per-cycle Waveforms may be displayed at one time.
Statistics: Detailed statistics on up to 12 per-cycle Numerics Table measurement parameters may be displayed at one time.
Harmonics Calculation Option (MDA800-HARMONICS) Fundamental Frequency Detection: Fixed Frequency Detection mode (for Line AC inputs only) or Varying Frequency Detection Mode (for Line AC inputs or Inverter PWM outputs).
Number of Harmonics Calculated: Up to 100 (Fixed Frequency) or up to 50 (Varying Frequency).
Harmonics Table and Spectral Waveforms: Display values by Harmonic Order for up to 9 quantities (Voltage, Current and Power) for any or all of three phases (limited to Voltage and Current in Fixed Frequency mode).
Units/Limits Selection: Select from either Amps/Volts/Watts, %, or dB. For Fixed Frequency, selection Limits file or create and assign custom limits file.
Zoom+Gate Mode Press "Zoom+Gate" button to create zooms of all voltage, current and mechanical signals (analog or digital) and simultaneously gate the Numerics and Statistics tables to the zoomed area. Displayed per-cycle "synthesized" Waveforms are simultaneously time-correlated to the zoomed area. Scroll through the full acquisition using Zoom position and ratio (size) controls and view instantaneous updates of table values.
Typical Accuracy Typically within 1%, depending on voltage and current measurement device.


Display System

Size Color 15.6" widescreen capacitive touch screen
Resolution 1920 x 1080 pixels
Number of traces Display a maximum of 40 traces. Simultaneously display channel, zoom, memory, math, and X-Y traces.
Grid Styles Auto, Single, Dual, Triplex, Quad, Octal, X-Y, Single+X-Y, Dual+X-Y, Tandem, Triad, Quattro, Twelve, Sixteen, Twenty, DualX-Y, TripleX-Y, QuattroX-Y, HexX-Y, OctalX-Y, DualX-YSingle, DualX-YDual, HexX-Ydual.
Supports Normal Display Mode (1 grid style, selectable) or Q-Scape Display Mode (4 different tabs, each with individually selectable grid styles). Q-Scape tabbed displays may be viewed in Single, Dual, or Mosaic mode.
Waveform Representation Sample dots joined, or sample dots only


Persistence Display

Analog and Color-Graded Persistence Waveforms of ≤500Mpts:
Variable saturation levels; stores each trace’s persistence data in memory
Persistence Types Waveforms of ≤500Mpts:
Select analog, color, or three-dimensional
Trace Selection Waveforms of ≤500Mpts:
Activate persistence on all or any combination of traces
Persistence Aging Waveforms of ≤500Mpts:
Select from 500 ms to infinity
Sweep Display Modes Waveforms of ≤500Mpts:
All accumulated, or all accumulated with last trace highlighted


Zoom Expansion Traces

Zoom Expansion Traces Display up to 12 Zoom and 12 Math/Zoom traces


Internal Waveform Memory

Internal Waveform Memory 12 active waveform memory traces (M1-M12) store 16 bit/point full length waveforms. Waveforms can be stored to any number of files limited only by the data storage media capacity.


Setup Storage

Front Panel and Instrument Status Store to the internal hard drive, over the network, or to a USB-connected peripheral device.


Automatic Setup

Auto Setup Automatically sets timebase, trigger, and sensitivity to display a wide range of repetitive signals
Find Vertical Scale Automatically sets the vertical sensitivity and offset for the selected channel to display a waveform with the maximum dynamic range


Calibration

Calibration Stability Calibration ensured within +/-5°C operating temperature. Manual calibration may be invoked if outside this temperature range.


Processor/CPU

Type Intel® Core i5-6500 Quad Core, 3.2 GHz (or better)
Processor Memory 16 GB standard for standard memory with 32 GB optional.
32 GB standard for any memory option.
Operating System Microsoft Windows® 10
Oscilloscope Operating Software Teledyne LeCroy MAUI™ with OneTouch
Real Time Clock Date and time displayed with waveform in hardcopy files. SNTP support to synchronize to precision internal clocks.


Connectivity

Ethernet Port 2 x 10/100/1000BaseT Ethernet interface (RJ45 port)
USB Host Ports 4 side USB 3.1 Gen1 ports, 2 front USB 3.1 Gen1 ports
USB Device Port 1 port - USBTMC over USB 3.1 Gen1
GPIB Port (optional) Supports IEEE - 488.2 (External)
External Monitor Port 1 x DisplayPort, supports up to 4096x2304 @ 24 Hz
1 x HDMI, supports up to 4096x2304 @ 60 Hz
Remote Control Via Windows Automation, or via LeCroy Remote Command Set
Network Communication Standard VXI-11 or VICP, LXI Compatible


Auxiliary Input

Signal Types For external trigger input
Coupling 50 Ω: DC; 1 MΩ: AC, DC, GND
Max. Input Voltage 50 Ω
5V RMS, +/- 10V Peak

1 MΩ
400 V max (Peak DC+AC)


Auxiliary Output

Signal Types Select from output signal, control signals, off
Output Signal 500 Hz-5 MHz square wave or DC level; 3.3 V +/- 10% into 1 MΩ
Control Signals Trigger enabled, trigger out, pass/fail status, off
Connector Type BNC, located on rear panel


Probes

Probes Qty. (4) ÷10 Passive Probes
Probe System ProBus. Automatically detects and supports a variety of compatible probes
Scale Factors Automatically or manually selected depending on probe used
Calibration Output Default is 1kHz square wave, 1Vp-p (typical), output to probe hook. Settable from 500 Hz to 1 MHz square wave; 50 mV to 1.0V.


Power Requirements

Voltage 100 - 240 VAC ±10% at 47 - 63 Hz
100 - 120 VAC ±10% at 380 - 420 Hz
Automatic AC Voltage Selection
Nominal Power Consumption 400 W / 400 VA
Max. Power Consumption 500 W / 500 VA (with all PC peripherals and active probes connected to 8 channels)


Environmental

Temperature (Operating) +5 °C to +40 °C
Temperature (Non-Operating) -20 °C to +60 °C
Humidity (Operating) 5% to 90% relative humidity (non-condensing) up to +31 °C.
Upper limit derates to 50% relative humidity (non-condensing) at +40 °C.
Humidity (Non-Operating) 5% to 95% relative humidity (non-condensing) as tested per MIL-PRF-28800F
Altitude (Operating) Up to 10,000 ft. (3048 m) at or below +30 °C
Altitude (Non-Operating) Up to 40,000 ft. (12,192 m)
Random Vibration (Operating) 0.31 grms 5 Hz to 500 Hz, 20 minutes in each of three orthogonal axes
Random Vibration (Non-Operating) 2.4 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes
Functional Shock 30 g peak, half sine, 11 ms pulse, 3 shocks (positive and negative) in each of three orthogonal axes, 18 shocks total


Size and Weight

Dimensions (HWD) 13.6”H x 17.5”W x 7.7”D (345 mm x 445 mm x 196 mm)
Weight 24.4 lbs (11.1 kg)
Shipping Weight 37 lbs (16.8 kg)


Certifications

CE Certification
UL and cUL Listing
CE Compliant, UL and cUL listed; conforms to
UL 61010-1 (3rd Edition), UL 61010-2-030 (1st Edition)
CAN/CSA C22.2 No. 61010-1-12


Warranty and Service

Warranty and Service 3-year warranty; calibration recommended annually.
Optional service programs include extended warranty, upgrades, and calibration services.


ページトップに戻る

クリックで詳細表示されます

ミックスド・シグナル・オプション

メモリオプション

コンピュータ・アップグレード

リモート・コントロール/ネットワーク・オプション

チャンネル同期オプション

電源解析

ジッタ解析パッケージ

トリガ/デコード・オプション

デジタル・フィルタ・パッケージ

コンプライアンス・テスト・オプション

シリアル・データ解析

その他

ページトップに戻る

クリックで詳細表示されます

アクティブ・プローブ

差動プローブ

電流プローブ

高電圧プローブ

パッシブ・プローブ

高電圧差動プローブ

O/Eコンバータ

プローブ・アダプタ

光アイソレーション・プローブ

電源レール・プローブ

ページトップに戻る

パワー・アナライザ性能

Setup Capability

Measurement LocationsAC Input, DC Bus (Link), Drive Output, Mechanical Output
Wiring ConfigurationsAC Input: 1-phase / 2-wire (1V1A); 1-phase / 3-wire (2V/2A); 3-phase / 3-wire (2V2A); 3-phase / 3-wire (3V3A); 3-phase / 4-wire (3V3A); None
DC Bus: 1-phase / 2-wire (1V1A); None
Drive Output: 1-phase / Half-Bridge (1V1A); 1-phase / Full-Bridge (1V1A); 3-phase / 3-wire (2V2A); 3-phase / 3-wire (3V3A); 3-phase / 4-wire (3V3A); None
Harmonic FilterSelect either Full Spectrum or Fundamental only. With MDA800-HARMONICS option, also select Fundamental + N Harmonics or Range (maximum 50th harmonic in both cases).
Sync (per-cycle) Measurement SignalIndependently settable for AC Input, DC Bus, Drive Output and Mechanical Output.
Low pass filter (LPF) cutoff settable from 20 Hz to 1 MHz. Hysteresis settable from 0-100% full amplitude.
Source can be any input analog channel, memory trace, or math function.
Voltage Measurement MethodLine-Line or Line-Neutral (with L-L to L-N conversion supported)
Calculation Waveform SourcesAny input channel or stored memory trace


Numerics Measurement Table Selections (Per-cycle Calculated, Mean Value Displayed)

VoltageRMS voltage, AC Voltage, DC Voltage, Peak Positive Voltage, Peak Negative Voltage, Peak-Peak Voltage, Voltage Crest Factor, Voltage Total Harmonic Distortion (THD) (with the MDA800-HARMONICS option)
CurrentRMS Current, AC Current, DC Current, Peak Positive Current, Peak Negative Current, Peak-Peak Current, Current Crest Factor, Current Total Harmonic Distortion (THD) (with the MDA800-HARMONICS option)
Power, Efficiency, and OtherReal, Apparent, and Reactive Power, Peak Positive Real Power, Peak Negative Real Power, Power Total Harmonic Distortion (THD) (with the MDA800-HARMONICS option), Power Factor, Phase Angle, Incremental Efficiency, Total Efficiency, Frequency
Motor Mechanical + OtherTorque, Speed1, Speed2, Angle1, Angle 2 (as defined by sensor, or adjusted with Offset Angle setting), Mechanical Power, AC induction motor Slip
Source SelectionsVoltage: Va, Vb, Vc, Va-b, Vb-c, Vc-a, Vr, Vs, Vt, Vr-s, Vs-t, Vt-r, Ia, Ib, Ic, Ir, Is, It, Vbus, Ibus, Mechanical.
Up to 10 rows (sources) and 12 columns (measurements) may be displayed in the table at any time. Source selections dependent on Wiring Configuration selections and Line-Line to Line-Neutral selections.


Motor Mechanical Interface

Speed + DirectionAnalog Tachometer (0-xVdc = speed). Source is analog input.
Digital Tachometer (x pulse/revolution = speed). Source may be digital or analog input.
Applied Voltage. Source is one analog input.
Controlled Area Network (CAN) Serial Data. Source is CAN message with embedded digital data. CANbus TDM or TDME option must be ordered separately.
Hall Sensors (three digital inputs). Source may be digital or analog input. Angle Tracking Observer filter may be applied to this selection.
Speed + Direction + PositionResolver. Source is three analog inputs.
SinCos. Source is two analog inputs.
KMZ60. Source is two analog inputs.
Quadrature Encoder Interface (QEI) (A, B, and optional Z input). Source may be digital or analog input.
Angle Tracking Observer filter may be applied to all selections.
TorqueAnalog 0-Vdc = Torque. Source is one analog input.
Analog mV/V = Torque. Source is one analog input.
Analog Frequency Modulated = Torque. Source is one analog input.
Motor Constant K * Current = Torque. Source is MDA calculated per-cycle current value.
Controlled Area Network (CAN) Serial Data = Torque. Source is CAN message with embedded digital data. CANbus TDM or TDME option must be ordered separately.


Per-cycle "Synthesized" Waveforms and Statistics

WaveformsA time-correlated waveform of any per-cycle Numerics Table measurement parameter may be created and displayed anywhere on the grid. Up to 12 detailed per-cycle Waveforms may be displayed at one time, with up to 40 waveforms total (channels, memories, zooms, math, and per-cycle Waveforms) displayed at any one time.
StatisticsDetailed statistics on up to 12 per-cycle Numerics Table measurement parameters may be displayed at one time.


Harmonics Calculation Option (part number MDA800-HARMONICS)

Fundamental Frequency DetectionFixed Frequency Detection mode (for Line AC inputs only) or Varying Frequency Detection Mode (for Line AC inputs or Inverter PWM outputs).
Number of Harmonics CalculatedUp to 100 (Fixed Frequency) or up to 50 (Varying Frequency)
Harmonics Table and Spectral Waveform DisplayDisplay values by Harmonic Order for up to 9 quantities (Voltage, Current and Power) for any or all of three phases (limited to Voltage and Current in Fixed Frequency mode).
Units/Limits SelectionSelect from either Amps/Volts/Watts, %, or dB.
For Fixed Frequency, selection Limits file or create and assign custom limits file.


Zoom+Gate Mode

OperationPress "Zoom+Gate" button to create zooms of all voltage, current and mechanical signals (analog or digital) and simultaneously gate the Numerics and Statistics tables to the zoomed area. Displayed per-cycle "synthesized" Waveforms are simultaneously time-correlated to the zoomed area. Scroll through the full acquisition using Zoom position and ratio (size) controls and view instantaneous updates of table values.


Typical Accuracy

Voltage, Current and PowerTypically within 1%, depending on voltage and current measurement device.
Recommended voltage probe (line-line voltage sensing) = Teledyne LeCroy HVD Series High Voltage Differential Probe (1kV, 2kV and 6kV isolated models available).
Recommended voltage probe (line-neutral or line-reference voltage sensing) = Teledyne LeCroy HVD Series HV Differential Probe for voltages >50Vrms, Teledyne LeCroy passive probe (Qty. 4 included) for voltages <=50Vrms
Recommended current probes = Teledyne LeCroy CP Series Current Probes
Other voltage and current measurement devices may be interfaced to the oscilloscope and analysis software using built-in rescaling and unit selection capabilities. The CA10 current adapter provides programmability for rescaling and unit selection.


Available Options & Accessories

Acquisition Memory100 Mpt/ch (HDO8k-L) and 250 Mpt/ch (HDO8k-XL)
Mixed Signal OptionHDO8k-MSO: 16 digital logic channel acquisition at up to 250 MHz digital clock rate, flexible analog and digital cross-pattern trigger and use of digital logic lines for mechanical speed sensing and serial data clock, data, and chip select probing, including (optional) serial data triggers and decoding
Serial Triggers and DecodersA wide variety are available including I2C, SPI, UART-RS232, CAN, LIN, FlexRay, ARINC429, Audio (I2S), DPHY, DigRF3G, DigRFv4, ENET, Manchester, MIL1553, SENT, USB2, and USB2-HSIC. Symbolic triggering and decoding is available for CAN. ProtoBus MAG Serial Debug Tookit provides automatic serial message timing measurements and serial (digital) data extraction and conversion (D-A capability).
Probes and AccessoriesA comprehensive list of voltage and current probes is supported on the Motor Drive Analyzer. Additionally, rackmounts, carts, soft carrying cases and local language front panel overlays are also available.
Software OptionsInclude Power (Semiconductor Device) Analysis, Digital Filtering, Jitter, EMC/EMI Measurements, and Developer's Toolkit.

Consult WaveRunner 8000HD datasheet for complete list of available options, accessories, and probes

ページトップに戻る
