QPHY-MIPI-DPHY - D-PHY Compliance Package

Test Solution provides automated control for Teledyne LeCroy oscilloscopes for performing transmitter physical layer tests as described by the MIPI Alliance Specification for D-PHY version 1.00.00

Explore QPHY-MIPI-DPHY arrow down
product title image
  • product line tab
  • overview tab
  • compatability tab
Key Features
  • Compliant with the MIPI Alliance Specification for D-PHY version 1.00.00
  • Fastest way to gain confidence in your D-PHY interface by measuring a large number of cycles and reporting statistical results
  • Support for both systems with continuous and noncontinuous clocking
  • Integrated D-PHY, CSI-2 and DSI decoders
  • Debug compliance failures easily using the MIPI D-PHY debug utility included in the software
  • Fully annotated worst case measurement screenshot captured and displayed in report
  • QualiPHY automated test framework provides connection diagrams, automated oscilloscope operation and report generation
The Teledyne LeCroy QPHY-MIPI-DPHY

Test Solution provides automated control for Teledyne LeCroy oscilloscopes for performing transmitter physical layer tests as described by the MIPI Alliance Specification for D-PHY version 1.00.00

QPHY-MIPI-DPHY Compliance Package

QPHY-MIPI-DPHY enables the user to obtain the highest level of confidence in their D-PHY interface. Due to the high level of variability in D-PHY measurements it is important to measure a large number of cycles. By measuring a large number of cycles in a very short period of time the user can be more confident that they are catching the true maximum and minimum points for their measurement.

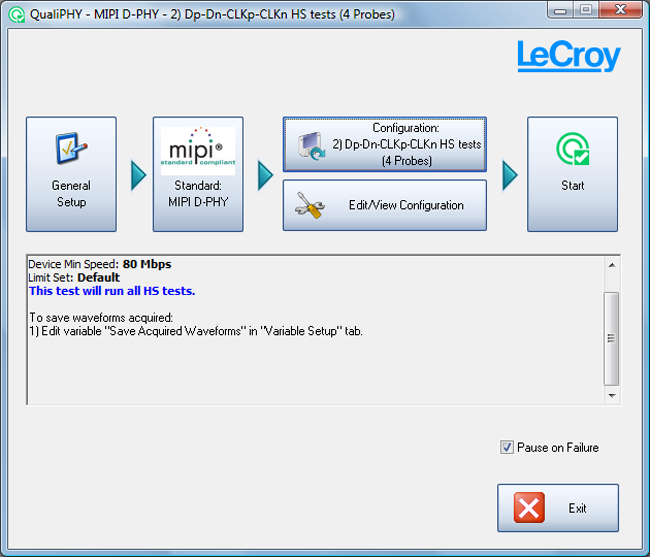

The Teledyne LeCroy QualiPHY platform provides an easy to configure user interface, allows for custom test and limit selection, displays connection diagrams to the user to ensure proper connectivity, and generates a comprehensive test report. In addition, all of the waveforms tested by QPHY-MIPI-DPHY can be saved to easily share information or rerun the tests at a later time.

Additionally, QPHY-MIPI-DPHY will display and record the worst case instance of the test that is being performed. This worst case instance will be zoomed and captured in the compliance report.

In addition to automated characterization of MIPI D-PHY signals, QPHY-MIPI-DPHY also enables powerful debug capability for MIPI D-PHY signals inside the oscilloscope. The integrated MIPI D-PHY Debug utility and decoders are the perfect combination for identifying the root cause of compliance failures.

QPHY-MIPI-DPHY Compliance Package

Although there is currently no official compliance program for MIPI D-PHY signals, it is highly recommended that devices are tested against the limits specified in the MIPI Alliance Specification for D-PHY.

For debug purposes QPHY-MIPI-DPHY will create the single-ended and differential eye diagrams for the clock and data high-speed signals. Although there is no formal eye diagram test required by the specification, these eye diagrams make it possible to gain quick insight into signal quality of the clock and data lines.

QPHY-MIPI-DPHY Compliance Package

The LP tests verify that the low-power signals' electrical and timing characteristics fall within the required compliance limits. These tests are performed on an Escape Mode sequence. Typically an Ultra Low Power State (ULPS) entry command is used but other sequences can be used also.

QPHY-MIPI-DPHY Compliance Package

The HS tests verify that the high-speed signals' electrical and timing characteristics fall within the required compliance limits. These tests are performed on any data capture that contains multiple high-speed bursts. These include tests performed on the data signals, the clock signals and also tests performed that validate timing parameters between the clock and data lines.

Tools For Debugging MIPI D-PHY
  • Decodes MIPI D-PHY, CSI-2, and DSI signals
  • Correlate analog waveforms with protocol decode on one screen
  • Decode up to 4 differential data lanes using the CDR feature
  • View decoded data in hexadecimal format
  • Decode information expands as the time base is adjusted or zoomed
  • Convenient table display with quick "Zoom to byte" capability
  • Quick search capability for specific message packets
  • Supports decode for LP & HS, HS only and LP only
  • Supports single-ended and differential probing for Data and Clock
QPHY-MIPI-DPHY Compliance Package

The MIPI D-PHY decode is the ideal tool for powerful system level protocol debug as well as problem solving for signal quality issues. The D-PHY decode solution adds a unique set of tools to your oscilloscope, simplifying how you design and debug MIPI D-PHY, CSI-2 and DSI signals.

The Most Intuitive Decode

MIPI D-PHY decode uses color-coded overlays on various sections of the protocol for an easy-to-understand visual display. Depending on the time base or the amount of zoom, the decode information is condensed or expanded to better assist in understanding events during short or long acquisitions.

The Single Tool Enhances Productivity

The D-PHY D solution concentrates all your information in one place. Viewing the application layer of D-PHY signals on top of the physical layer provides a unique view that bus analyzers cannot. A full suite of amplitude and timing measurements can be applied to debug physical layer issues that may not be apparent in a protocol view.
