WaveRunner 8000HD is the ultimate professional-grade
bench oscilloscope.
Teledyne LeCroy first doubled channel count with high resolution
in 2014 – our 8 channel oscilloscopes were immediate best sellers for power
conversion and embedded system test applications. WaveRunner 8000HD continues
the tradition.
Capture Every Detail
Expand Your Vision with More Channels
Advanced Oscilloscope Toolset Extends Your Capabilities

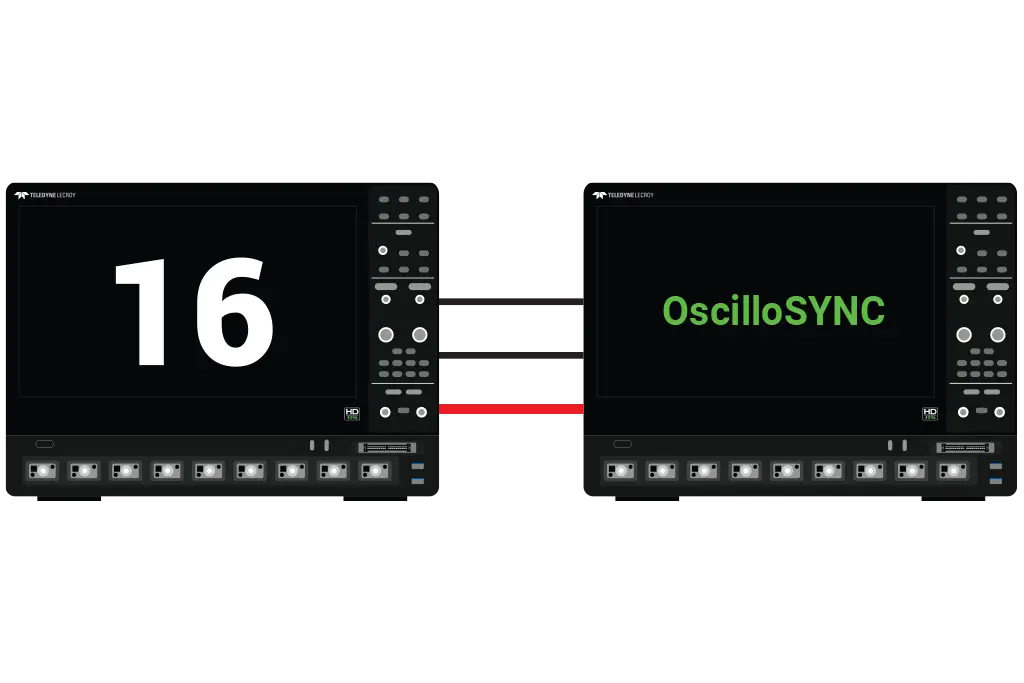

Connect Two 8 Channel Oscilloscopes using OscilloSYNC® – A 16
Channel Oscilloscope
Connect two Teledyne LeCroy 8 channel oscilloscopes with an OscilloSYNC connection to
acquire 16 time-synchronized channels displayed on one oscilloscope. Setup is
incredibly easy with just four simple steps:

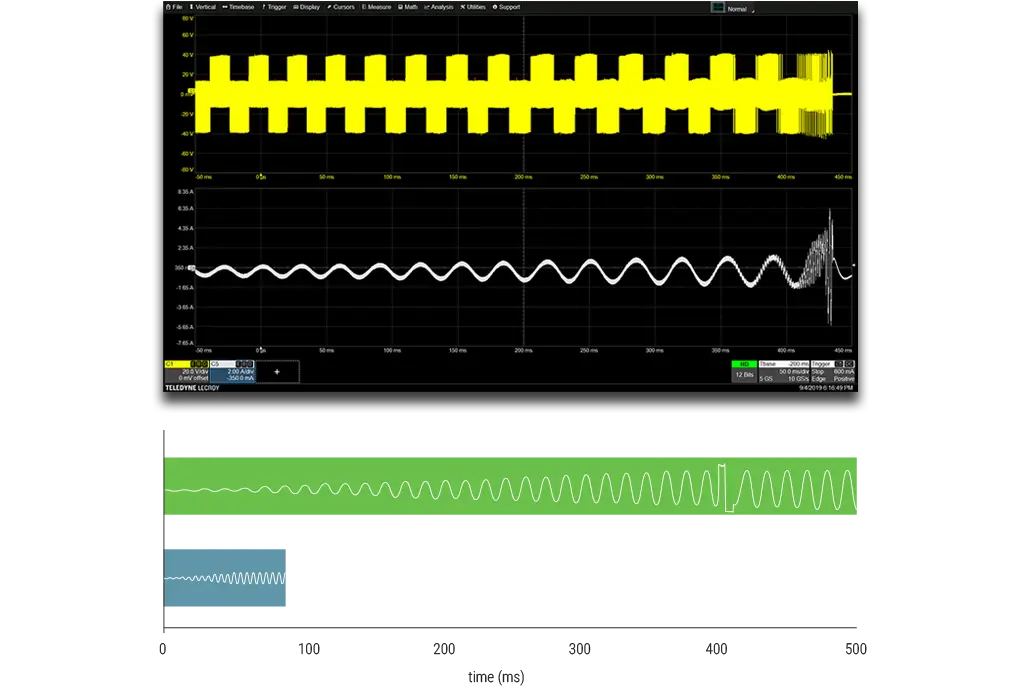

Up to 5 Gpts of acquisition memory in WaveRunner 8000HD oscilloscopes allows capture of
long periods of time with 12-bit resolution and maximum sample rate for visibility into
the smallest details
Sophisticated acquisition and memory management architecture in the oscilloscope is
fast and responsive
Capture both millisecond-scale trends and picosecond-scale glitches
Navigate directly using timebase scale and position knobs or set up a zoom trace –
use whichever you prefer

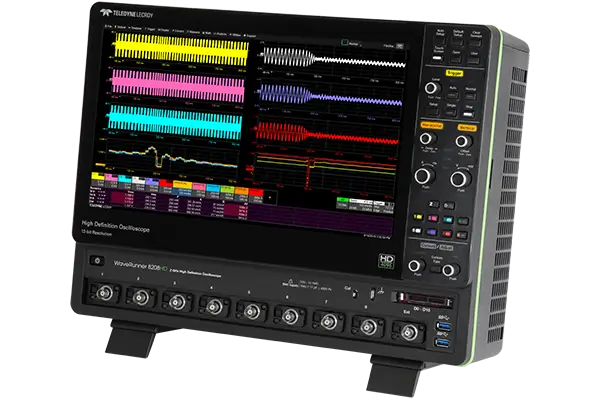

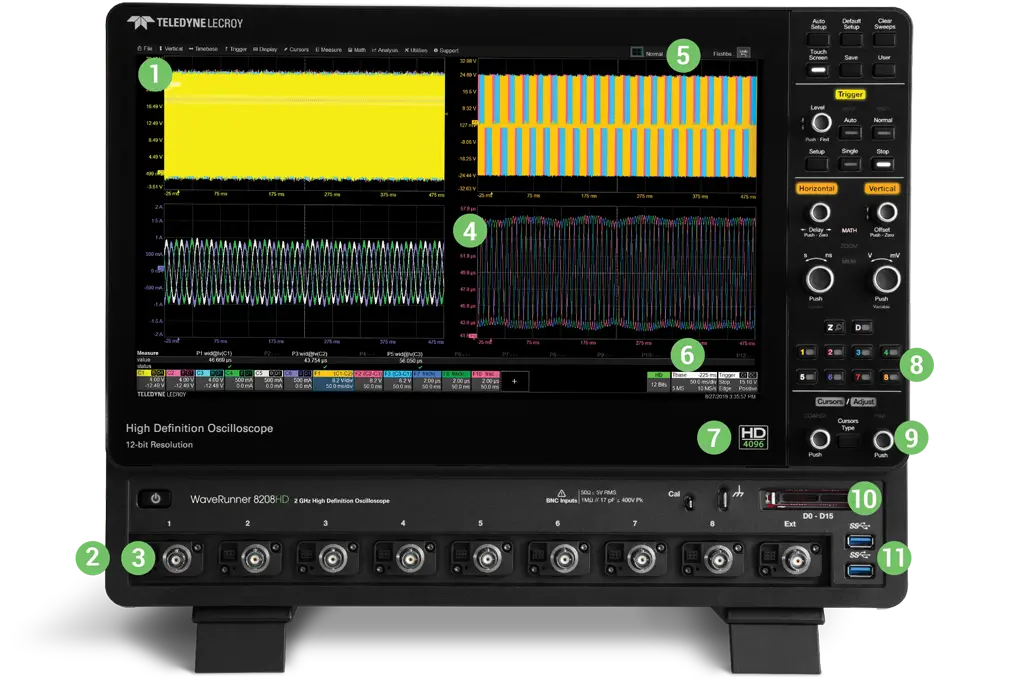

8 Channel Oscilloscope Overview
More resolution, more channels, more memory, more of everything for faster and better debug
15.6” 1920 x 1080 capacitive touchscreen display
8 analog input channels
ProBus input supports every Teledyne LeCroy probe (of suitable
bandwidth)
MAUI® with OneTouch™ user interface for intuitive and efficient
operation
Q-Scape multi-tab display architecture
Up to 5 Gpts (5000 Mpts) of acquisition memory
HD4096® technology for 12 bits all the time
Buttons/indicators color coded to associated waveform on display
Use cursors and adjust settings without opening a menu
Mixed Signal capability with 16 integrated digital channels

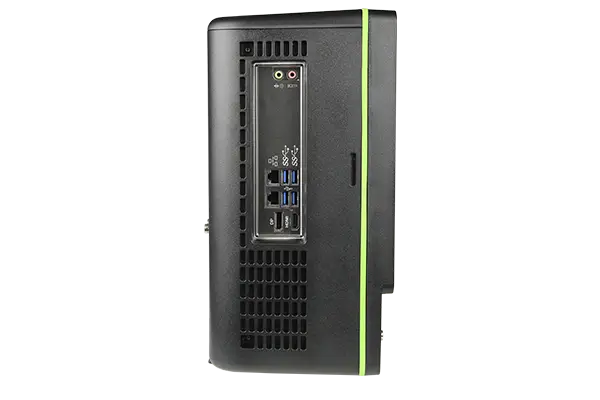

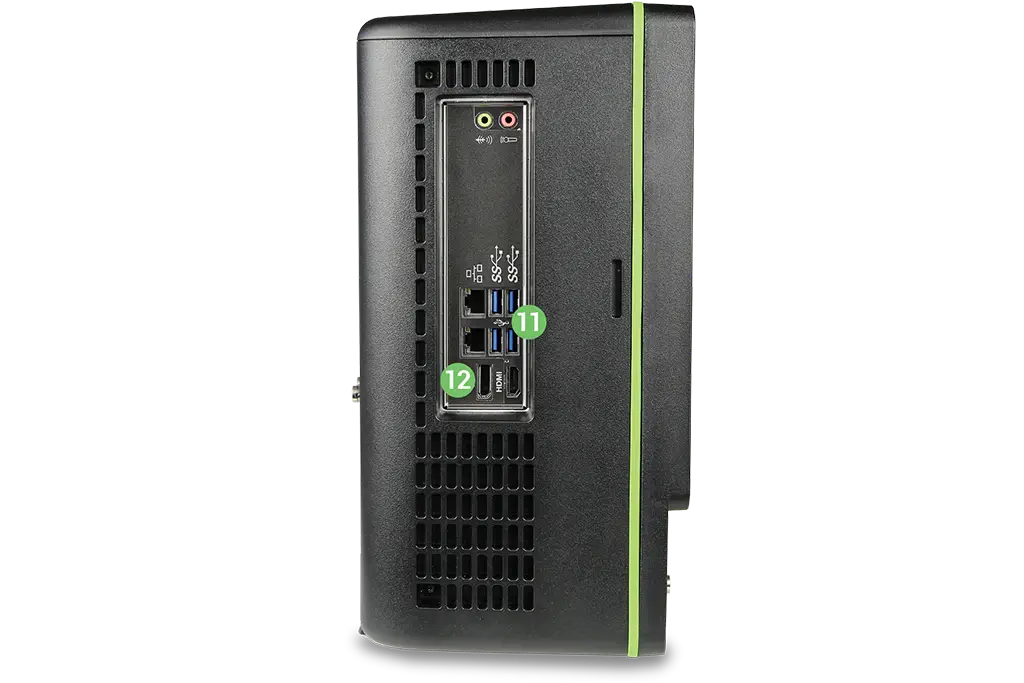

6 USB 3.1 ports (2 front, 4 side)
6 USB 3.1 ports (2 front, 4 side)
HDMI and DisplayPort – supports 4K (4096 x 2304) external monitors
Removable SSD (standard)
View 16 channels on one display with OscilloSYNC

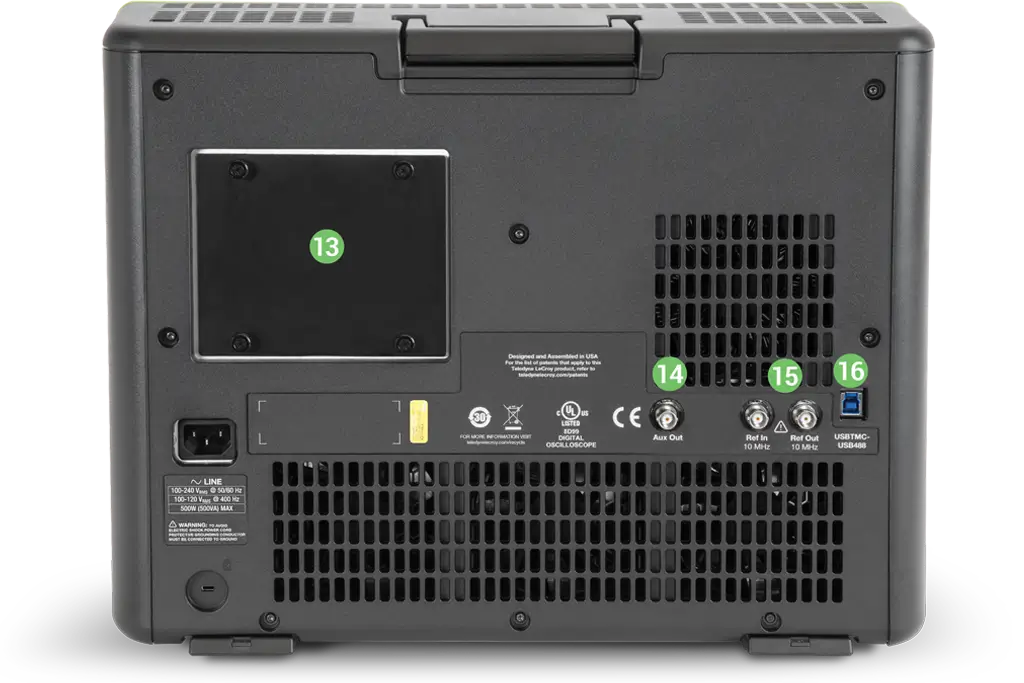

Reference clock input/output for connecting to other equipment
USBTMC over USB 3.1 for fast data offload
Wide Range of Application Packages for an 8 Ch Oscilloscope
Teledyne LeCroy’s WaveRunner 8000HD oscilloscopes have many different application-specific
software options to meet your most critical high-channel count measurement needs.
3-phase Power Analysis for an 8 Ch Oscilloscope
Sophisticated 3-phase power analysis software option provide the ultimate in
3-phase power and control analysis. Purchase as an option or a Motor Drive
Analyzer model. A variety of high-performance high voltage and other probes are
available for inverter subsection, power system and control testing.
Acquire any signal for short or long durations – everything on one display
Calculate 3-phase electrical and mechanical power at your bench
Correlate complex power, control and motor behaviors
Accurate to within 1% of a dedicated power analyzer instrument
Automotive ECU and In-vehicle Network Testing with an 8 Channel Scope
WaveRunner 8000HD 8 channel oscilloscopes combine high resolution, high channel
count, long memory, and wide range of validation and debug software to best
address the specific test needs of in-vehicle network and automotive ECU testing.
Comprehensive, sophisticated tools for testing in-vehicle networks, from kb/s
to Gb/s
More channels at higher resolution for faster and more efficient vehicle ECU
debug
12-bit resolution provides more insight for spectral analysis, easily connect
and rescale non-linear sensors to electrical and magnetic field units, measure
sub-1 Hz magnetic field strengths
Power Integrity and Power Sequence Testing with an 8 Channel Oscilloscope
WaveRunner 8000HD oscilloscopes have high resolution, long memory and high
channel count for fast and accurate validation and debug of all aspects of power
distribution networks (PDN) and power integrity.
Most accurate PDN measurements – 0.5% accuracy, low noise, high dynamic range
Specialized power rail probes up to 4 GHz bandwidth and 60 V offset with
solder-in tips - make probing easy and minimize disruption to the DUT
8 analog channels for capture of rail sequencing on very long records
16 digital inputs for capture and decode of low-speed power sequence
triggering behaviors.
WaveRunner 8000HD oscilloscopes acquire the longest records at the highest
resolution for the most comprehensive deeply embedded computing system analysis
(analog, digital, serial data and sensor signals).
12-bit resolution accurately captures sensor, power rail, and other analog
signals
Long acquisition memory options (up to 5 Gpts) and 8+16 channels is ideal for
causal validation and debug, especially between signals of widely different
speeds.
Comprehensive probe offering and simple integration, rescaling and unitizing
of non-linear sensor and sniffer probes.
Comprehensive and Powerful Serial Data Debugging Solutions
Teledyne LeCroy's Trigger (T), Decode (D), Measure (M) or Graph (G), and Eye Diagram
(E) and Physical Layer (P) options are most often unique or the best available with
support for more than 30 different standards.
Unique Validation and Productivity Tools Make Your 8 Channel Oscilloscope Even
More Efficient
Teledyne LeCroy’s Powerful, Deep Toolbox Helps You Debug Faster and More Efficiently. Read
more about these unique capabilities by visiting https://www.teledynelecroy.com/tools and clicking on the referenced
tools in the periodic table of oscilloscope tools.
Comprehensive Pass/Fail Testing and Analysis
The most comprehensive and capable pass/fail analysis of any
oscilloscope
Mask testing (tool 33)
Measurement value acceptance (tool 53)
Limit settings on multiple measurements with a single defined action (tool 56)
Boolean and chained pass/fail expressions (tool 78)
Experience the Difference – Book an On-line Visit to our Demo Lab
Without leaving your office you can get a half hour tour of Teledyne LeCroy’s unique
capabilities. Simply click on the button below and fill out the form. Someone will then
contact you to set up an appointment.
Compare Teledyne LeCroy High Definition Oscilloscopes (HDO)
High resolution oscilloscopes provide more resolution compared to a conventional 8-bit
oscilloscope. A High Definition Oscilloscope (HDO) is Teledyne LeCroy’s class of
oscilloscopes that provide 12-bit oscilloscope resolution all the time with no reduction of
bandwidth or sample rate. Teledyne LeCroy HDOs are available from 200 MHz to 65 GHz, with 4
to 8 channels (or more, using OscilloSYNC®). Compare Teledyne LeCroy HDOs below:
Compare Teledyne LeCroy WaveRunner 8000HD Series oscilloscopes to a Tektronix 8 channel
oscilloscope, a Keysight 8 channel oscilloscope, a Yokogawa 8 channel oscilloscope, or a
Rohde & Schwarz 8 channel oscilloscope.
Bandwidth Range
Resolution
High-resolution Mode
Analog Channels
Digital Channels
Analog+Digital Channels
Sample Rate (All Channels)
Sample Rate (Maximum)
Memory (All Channels, Standard)
Memory (Maximum)
Measurement Duration (Maximum at Full Sample Rate)
DC Gain Accuracy
Noise (50 mV/div)
Effective Bits (ENOB)
Low-speed Serial Data Capabilities
Rescaling
Pass/Fail Analysis
Display
CPU
Operating System
Warranty
Teledyne LeCroy WaveRunner 8000HD Oscilloscopes
350 MHz - 2 GHz
12 bits at full bandwidth and sample rate
+3 effective bits (ERes) with bandwidth reduction
8 16 using OscilloSYNC
16 with MSO option
8+16
10 GS/s
10 GS/s
50 Mpts
5000 Mpts (5000 Mpts/ch for 2 channels, 2500 Mpts/ch for 4
channels, 1250 Mpts/ch on 8 channels)
Complete for Length, Temperature, Angle, Velocity, Acceleration, Volume,
Force, Pressure, Electrical, Magnetic, Energy, Rotating Machine units
Measurement or Mask (Standard) Up to 12 Pass/Fail queries using
single or dual measurement parameter or mask violation. Supported with
Boolean Expressions and Actions upon failure.
15.6", 1920 x 1080 pixels also supports DisplayPort and HDMI
external monitors up to 4k resolution
436 µV @ 350 MHz 516 µV @ 500 MHz 677 µV @ 1 GHz Not specified @ 2 GHz
Noise values from 350 MHz to 1 GHz ~50% higher for 2 GHz
model
Not specified @ 2 GHz 7.6 @ 1 GHz 7.9 @ 500 MHz 8.2 @ 350 MHz
Specified operation only achieved in High Res mode with
sample rate reduction. 2 GHz model has worse performance.
Broad Support, Limited Capabilities
Not Specified
Mask (Standard) Eye diagram mask testing Measurement
(Option MTM) Pass/Fail testing on single measurement values.
Supported with Actions upon failure.
15.6", 1920 x 1080 pixels also supports DisplayPort, DVI and
VGA external monitors, resolution not specified
Intel® i5-8400H Quad-core, 2.5 GHz, 64-bit. RAM not specified.
Closed Linux. Windows 10 optional
1 Year
Tektronix 6 Series B Oscilloscopes
1 to 10 GHz
8 bits (12-bit ADC Resolution)
+8 "bits" (High Res) with bandwidth, sample rate, and
channel reduction
4, 6 or 8
Up to 32, 48, or 64 each 8 digital channels requires one
TLP058 probe (~$2700) and consumes one analog channel
High Voltage Fiber Optic Probe, 150 MHz Bandwidth. Includes
soft-carrying case. Requires attenuating tip (ordered separately).
Includes Qty. 1 1m Fiber Optic Cable.
Power/Voltage Rail Probe. 2 GHz bandwidth, 1.2x attenuation,
+/-60V offset, +/-800mV Includes a complete set of solder-in leads
and coaxial cables. Browser tip sold seperately
Power/Voltage Rail Probe. 4 GHz bandwidth, 1.2x attenuation,
+/-30V offset, +/-800mV Includes a complete set of solder-in
leads, coaxial cables, and PCB mounts.
Power/Voltage Rail Probe. 4 GHz bandwidth, 1.2x attenuation,
+/-60V offset, +/-800mV Includes a complete set of solder-in leads
and coaxial cables. Browser tip sold seperately
